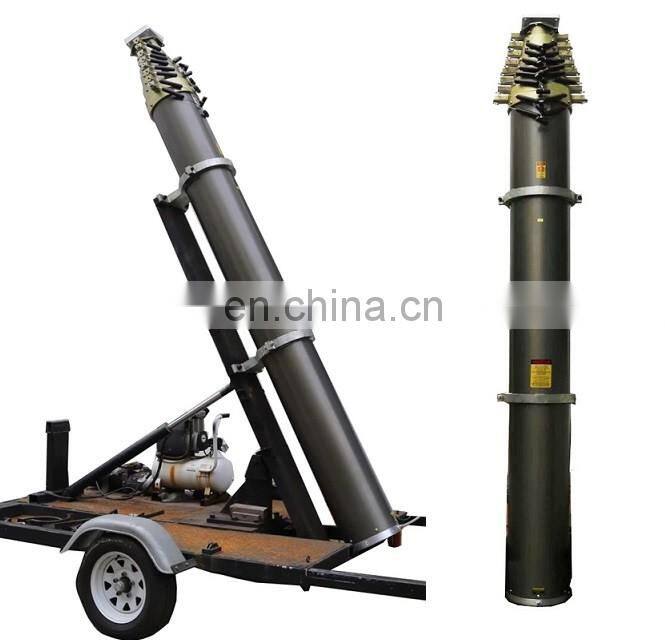

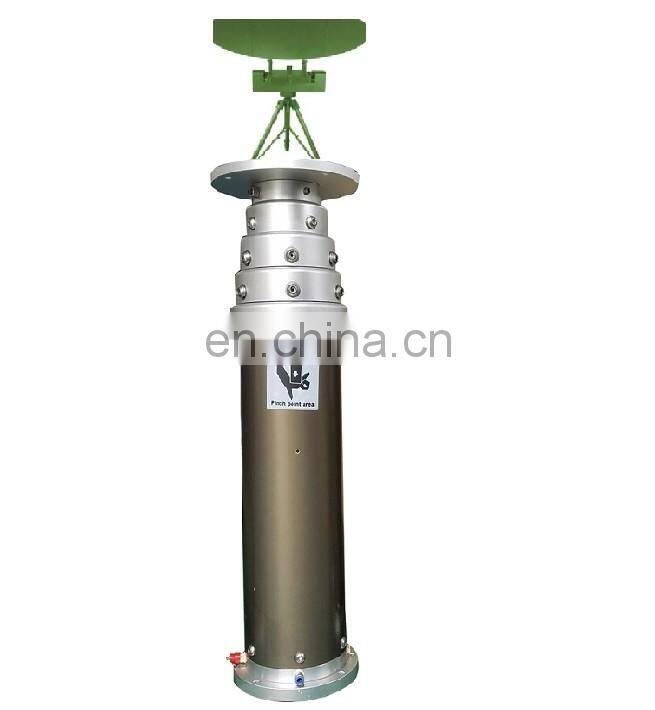

15m Locking Aluminum Antenna Camera Mobile Pneumatic Telescopic Mast

Talents large payload telescopic mast series

           they are specifically designed for use with large payloads, and used with a variety of military battle vehicles,

within the scope of special security-technical applications by which the most sensitive optronic systems, objective determination systems or heavy-weight radar systems are used, Talents masts are the first choice worldwide.

height up to 30m, payload up to 600kg at height slected.

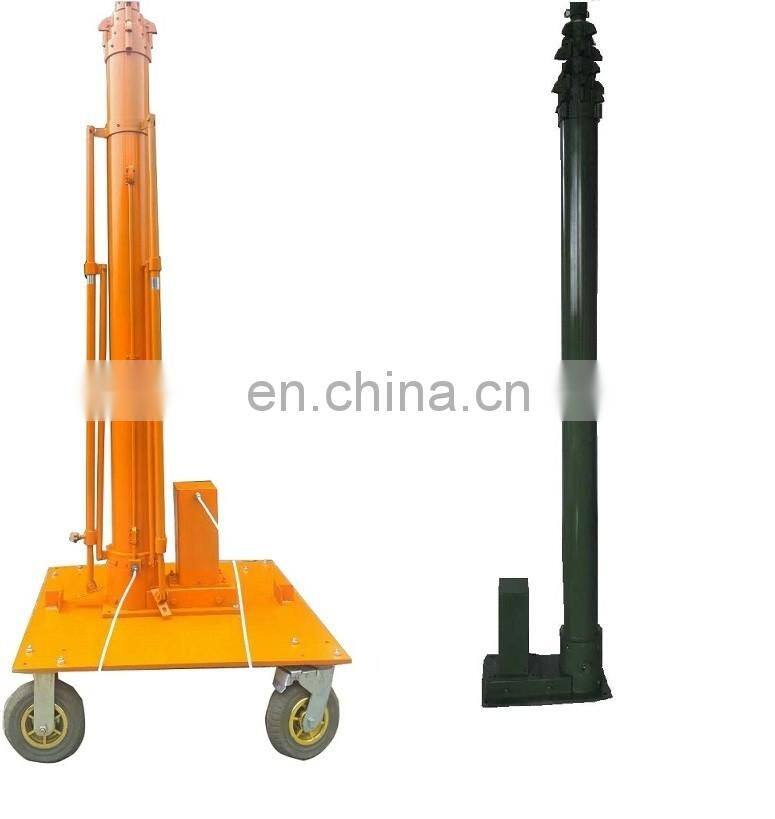

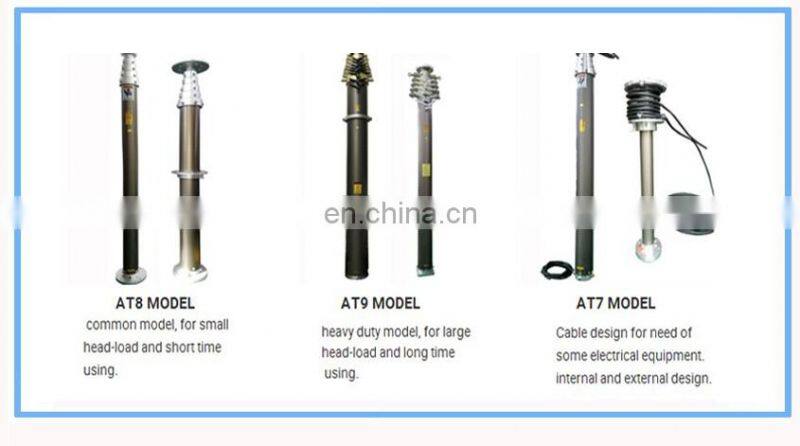

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

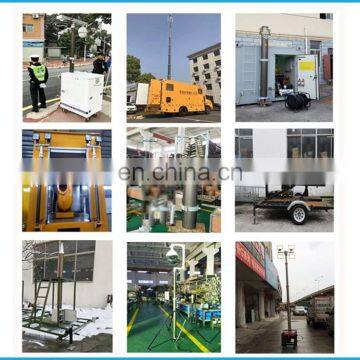

Common application

15m telescopic mast, that can deploy loads from 10kg to 400kg, usually used by army or international forces to enhance capabilities like communication, security, surveillance, reconnaissance and detection of targets throughout the battlefield.

Mast specification

Available Extended height:2m to 30m
Head load capacity:1kg to 600kg at height selected

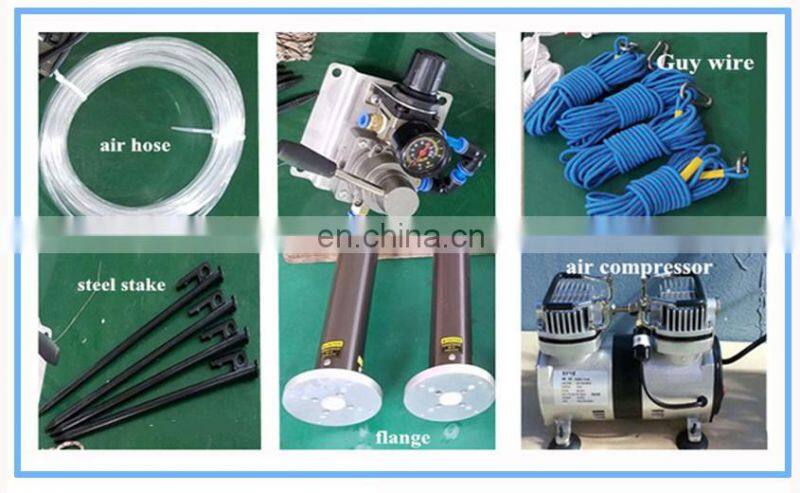

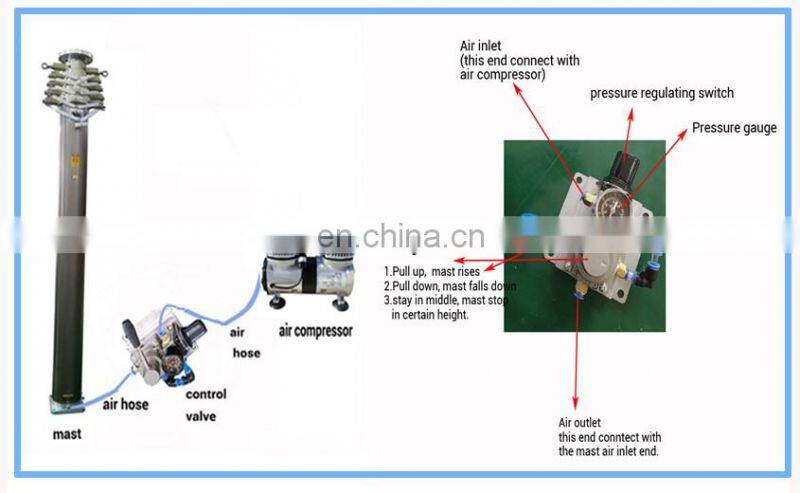

Lift operation choose

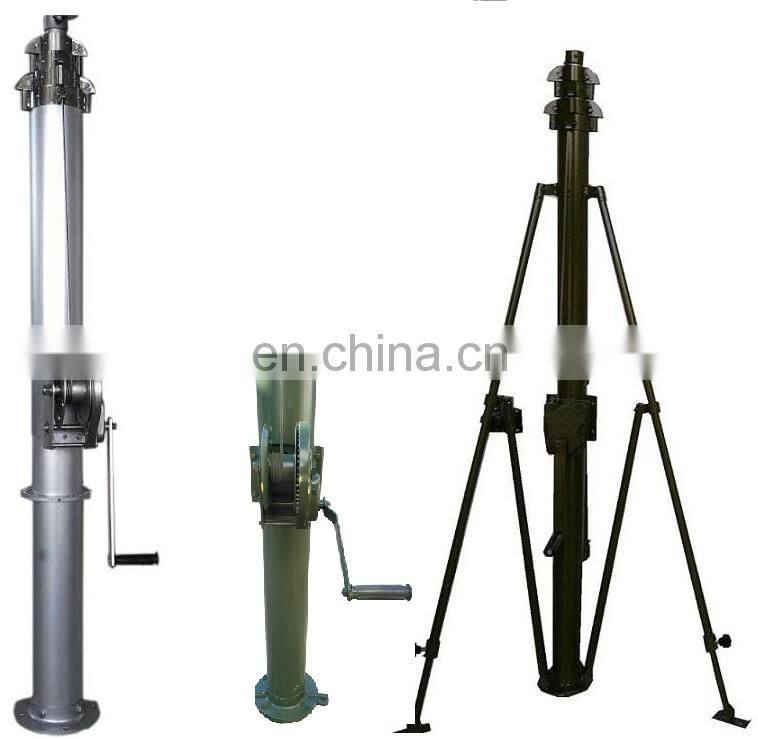

If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

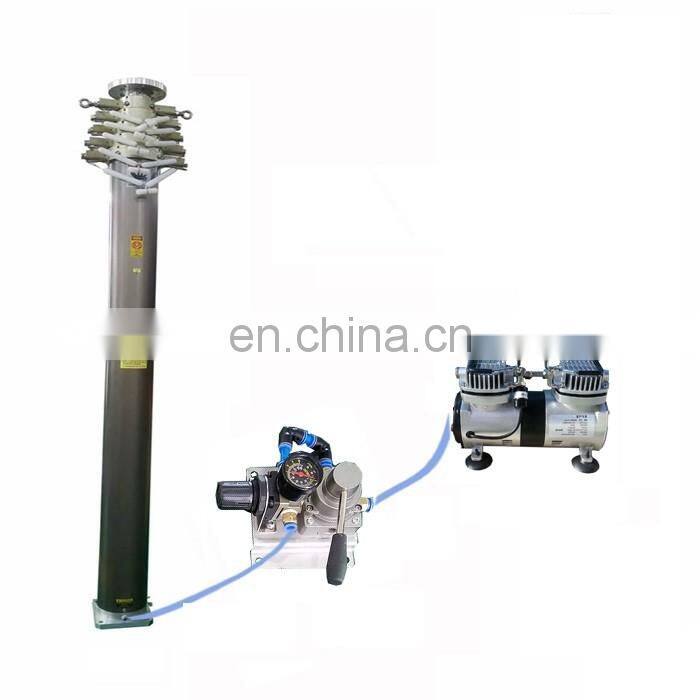

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

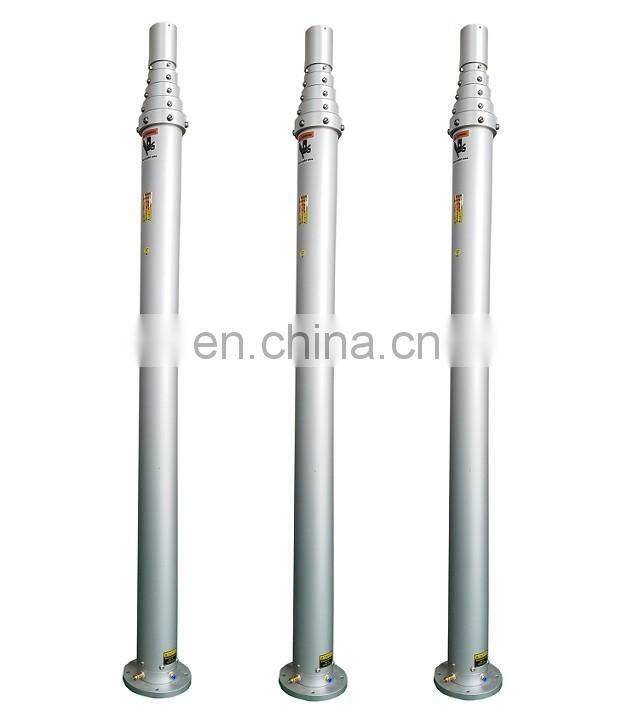

Mast material is aluminum alloy 6063-T5

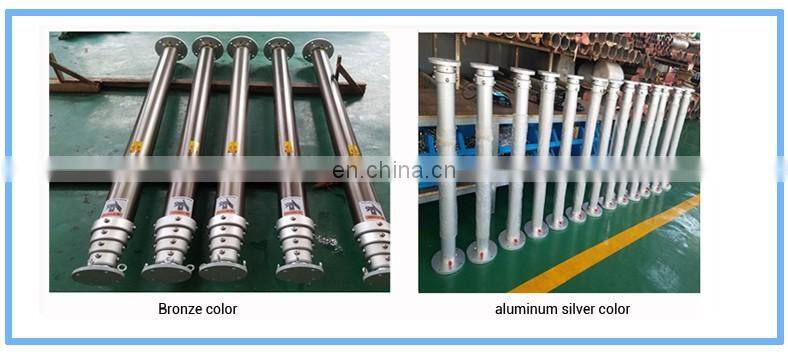

Color:Bronze, white and balck for choose.

Operation steps

9. when lift down the mast, please pull down the lifting control valve handle bar..

NOTE:

above specification are standard model, customized size accepted

3 differents mast are in great demand recently
