9m Hydraulic Carbon Steel Square Telescopic Mast Heavy Payload
- Xingang
You May Like
-
8m High Strength Carbon Steel Motorized Telescopic Mast Trailer Mounted
-
6m 110V Motorized Telescopic Mast With Multi Remote Controller
-
10m 100kg Payload Satellite Antenna Electric Winch Mechanical Telescopic Mast
-
16m Heavy Payload Motorized Telescopic Mast Vehicle Mounted
-
4 and 5 Meter Height Electric Retractable Masts for Security Cameras
-
6m 20kg Payload Motorized Telescopic Mast Stand for Video Camera
Product Details
| Brand Name | Talents 9m carbon steel hydraulic telescopic mast | Place of Origin | Tianjin, China | |
| Model Number | 04TAL-E9-1.5-200 |
Product Description

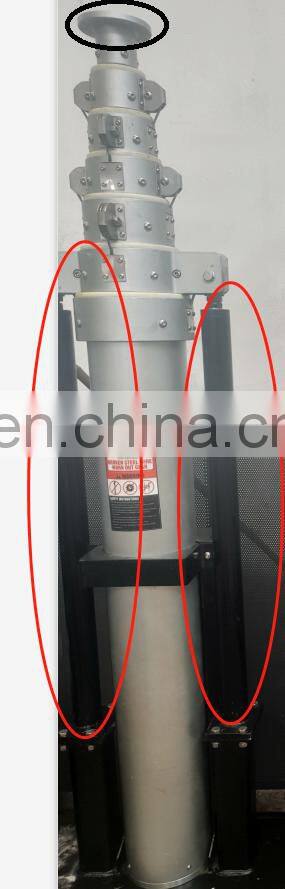

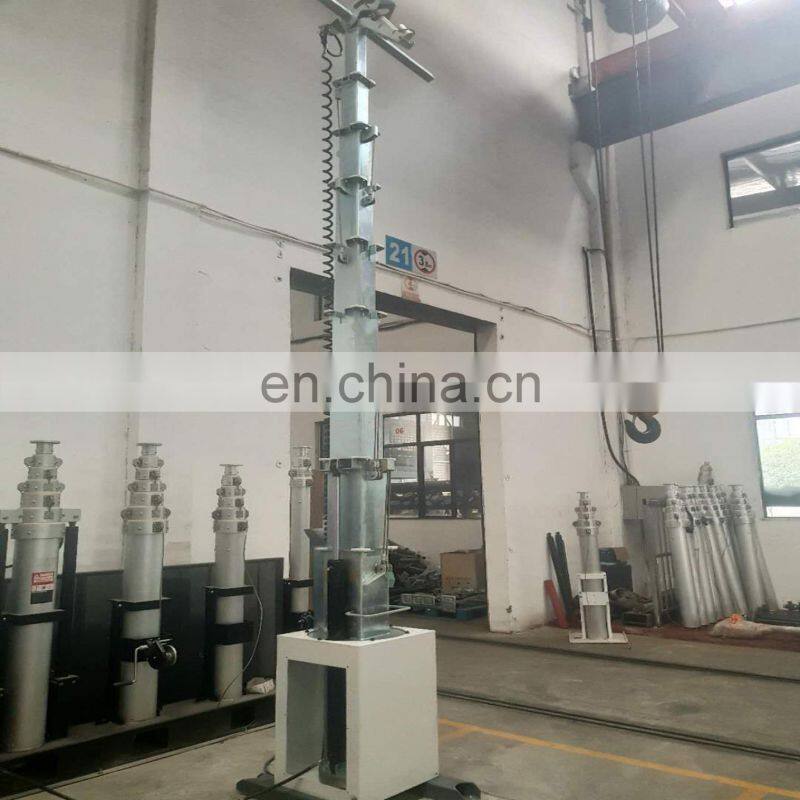

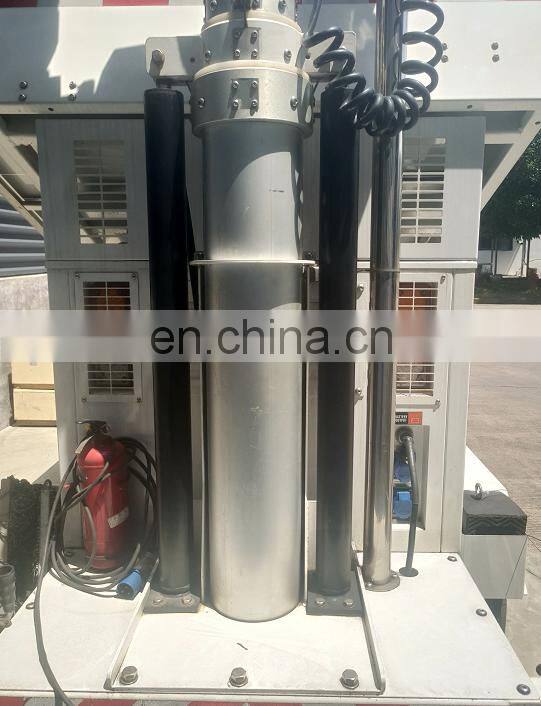

9m hydraulic carbon steel square telescopic mast heavy payload
9m hydraulic carbon steel square telescopic mast heavy payload
Basic specifications
| Product name | 9m hydraulic carbon steel square telescopic mast heavy payload |
| Closed length | 1.5m (Bottom base included) |
| Extended length | 9.0m (Bottom base included) |
| Max.payload | 200kgs |
| Lifting method | hydraulic lifting |
| OD | 40-60-80-100-120-140-160-180-200mm |
| Material | carbon steel |
| Section | 9
|
(1) Main pole in 7 sections:
Section No. OD Thickness Length
1#: 40mm 2.0mm 1.6m
2#: 60mm 2.0mm 1.6m
3#: 80mm 2.0mm 1.6m
4#: 100mm 2.0mm 1.6m
5#: 1200mm 2.0mm 1.6m
(2) Other parts of the mast body
Top plate Thickness: 10mm Diameter:190mm
Bottom base(include motor): size:170*360mm
(3)Accessories
hydraulic pump: --------------------------------------- 1 set
Pulling cord box with handle bars -------- 3 units
Ground anchor-----------------------------------------3 pieces
hydraulic cylinder-------------------------------------2 piece
Electrical equipment control box--------------------1 unit
Material:
Main Pole: steel Q235
Bottom base and accessories (except the ground anchor): iron steel
Ground anchor: galv stainless steel
Pulling cord: stainless steel wire(OD:2mm)
Color: the whole unit will be in original of steel Hot galvanizing.
Color Technology: painting customized color
Accessories


One unit of 9m carbon steel hydraulic telescopic mast to be wrapped with Poly tapes then to be packed into a plywood case
Specification table of masts
No. | Model | Closed Length | Extended Length | OD | Section | Payload |
002 | TAL-2M-30 | 1.0m | 2m | 40mm~60mm | 3 | 30kg |
002 | TAL-2M-30 | 0.75m | 2m | 40mm~90mm | 6 | 20kg |
002 | TAL-2M-100 | 1.2m | 2m | 105mm~130mm | 2 | 100kg |
003 | TAL-3M-250 | 1.75m | 3m | 90mm~130mm | 3 | 250kg |
004 | TAL-4M-250 | 1.8m | 4m | 90mm~130mm | 3 | 250kg |
004 | TAL-4M-10 | 1.55m | 4m | 40mm~80mm | 4 | 10kg |
004 | TAL-4M-50 | 1.2m | 4m | 60mm~130mm | 6 | 50kg |
005 | TAL-5M-150 | 1.4m | 5m | 60mm~160mm | 6 | 150kg |
005 | TAL-5M-600 | 1.6m | 5m | 60mm~150mm | 5 | 600kg |
006 | TAL-6M-10 | 1.7m | 6m | 40mm~90mm | 6 | 10kg |
006 | TAL-6M-50 | 1.7m | 6m | 50mm~105mm | 6 | 50kg |
008 | TAL-8M-30 | 2.2m | 8m | 40mm~105mm | 6 | 30kg |
010 | TAL-10M-30 | 2.45m | 10m | 40mm~105mm | 7 | 30kg |
012 | TAL-12M-200 | 2.45m | 12m | 70mm~160mm | 7 | 200kg |
012 | TAL-12M-35 | 2.3m | 12m | 40mm~130mm | 7 | 35kg |
012 | TAL-12M-100 | 2.7m | 12m | 50mm~130mm | 7 | 100kg |
012 | TAL-12M-20 | 2.4m | 12m | 40mm~150mm | 7 | 20kg |
015 | TAL-15M-20 | 2.8m | 15m | 40mm~105mm | 7 | 20kg |
015 | TAL-15M-30 | 2.8m | 15m | 50mm~130mm | 7 | 30kg |
015 | TAL-15M-300 | 2.7m | 15m | 60mm~155mm | 7 | 300kg |
020 | TAL-20M-200 | 3.7m | 20m | 70mm~230mm | 7 | 200kg |
025 | TAL-25M-80 | 3.4m | 25m | 60mm~230mm | 10 | 80kg |
025 | TAL-25M-60 | 3.4m | 25m | 60mm~210mm | 10 | 60kg |
028 | TAL-28M-15 | 3.7m | 28.5m | 30mm~130mm | 10 | 15kg |
035 | TAL-35M-10 | 3.9m | 35m | 30mm~180mm | 11 | 10kg |
Installation Method
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.
Mast Operation Precautions
l No overloading.
l Ensure the area in which the mast is deployed is free of obstructions and overhead power
lines.
l For motorized mast :The crank handle of mast must be disengaged when operated
electrically.
l For pneumatic mast:DO NOT remove any of the exhaust valves in an attempt to retract the
mast quicker, this action removes control over the rate of decent.
l For motorized mast:When operated manually, the motorized telescopic antenna mast must
Be in a power off state.
l Any abnormal phenomena( such as inflexible or stuck) occurs when lifting, you should
stop it immediately, identify the reasons, and lift it after cleaning troubles.
l Operating environment requirements:
l working temperature: pneumatic mast -15--+60℃. manual and motorized mast -50--+60℃.
l Wind load: 50-80km/(without Guy rope ), 100-120Km/h( with Guy rope)
l Note: if special request, please confirm with our technician.
Maintenance
l Waterproof and dust proof cover should be put into outdoor storage
l If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
l Regularly check the connection parts in normal condition.
l Change seals easily on regular time can make mast in good using conditions after
using 20thousand times.
