5m-18m heavy duty hurry up mobile antenna hand winch telescopic masts pole

Name: 5m-18m heavy duty hurry up mobile antenna hand winch telescopic masts pole
Brand: talents
Availability: InStock

FOB Price

USD $500 - $800 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-M5-M18

Product Description

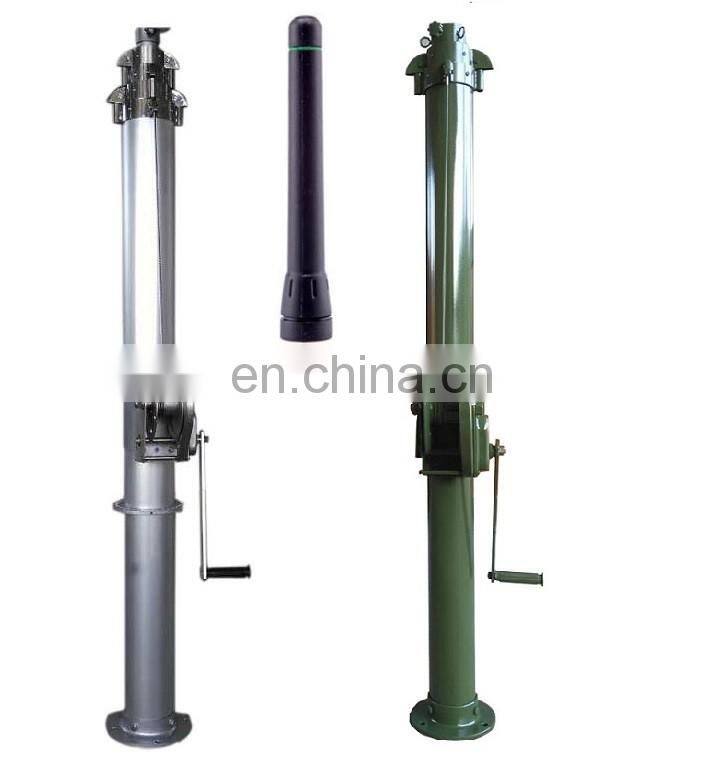

Detailed Images

5m-18m heavy duty hurry up mobile antenna hand winch telescopic masts pole

Product Description

5m-18m heavy duty hurry up mobile antenna hand winch telescopic masts pole

technical data
main spec.	Closed length: 1.7m (Bottom base included) Extended length: 6m (Bottom base included) Max loading:15kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections	Section No. OD Thickness Length 1#： 50mm 2.0mm 2.2m 2#： 60mm 2.0mm 2.2m 3#： 70mm 2.0mm 2.2m 4#： 80mm 2.0mm 2.2m 5#： 90mm 2.0mm 2.2m
Bottom base	diameter: 180mm Thickness: 12mm
Accessories	Guy rope--------------------------------------------------3 units Ground anchor------------------------------------------3 pieces Handle lifting bar---------------------------------------2 pieces 304 stainless steel stakes-------------------------------6 pieces Tripod -----------------------------------------------------1 piece Top plate---------------------------------------------------1 piece
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

accessories

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery

5m-18m heavy duty hurry up mobile antenna hand winch telescopic masts pole

After-sale service

Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1）the mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.

2）the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic mast. Its connection must be solid and reliable.

Workshop

Our Service

we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

catalog of some common grade manual mast as follows----payload no more than 10kg

extended height (m)	No. of section	retracted height (m)	outer tube range (mm)	self weight (kg)
4	3	1.6	60-80	14
5	4	1.65	50-80	17
6	5	1.7	50-90	21
8	6	1.8	40-90	24
10	7	1.95	30-90	26
12	7	2.2	30-90	28
15	8	2.45	30-105	33
18	9	2.7	30-130	47
20	9	2.95	30-130	55
22	9	3.15	30-130	58
25	10	3.4	30-150	72
30	10	3.85	30-150	84
