13m Mechanical Telescopic Masts for Illumination Technology Use

Name: 13m Mechanical Telescopic Masts for Illumination Technology Use
Brand: talents
Availability: InStock

FOB Price

US$ 920 - 1,200 / Set

1 Set(Min. Order)

Port Tianjin port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-M13-2.2-40

Product Description

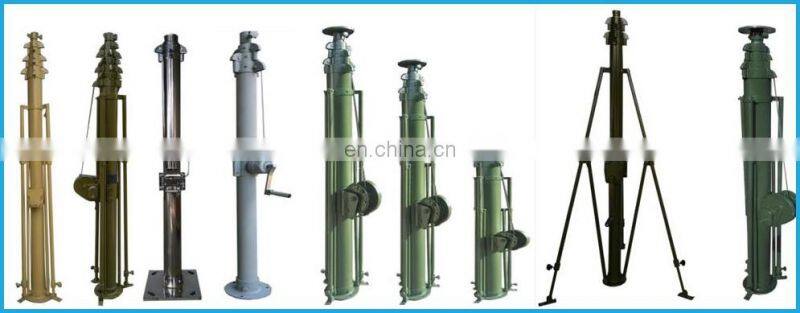

Telescopic crank mast, light weight, for payload up to 30kg

Telescopic crank masts is characterised by the lightweight construction and in addition

a superior stability, reliability and a long economic lifetime.

The masts are designed for field installation as well as vehicle installation or on a trailer.

Advantages:

1) no power supply needed - easy manual crank up

2)automatic locking collars - locks at any height desired

3) maintenance free

Common applications

our cranks masts are in use for military as well as civil purposes like communication,
monitoring, lighting and measurement techniques.

Essential features

Specification
Article number	TAL-M13-2.2-40
Lifting method	manual crank lifting
Closed length and extended length	2.2m to 13m
73material	for main tube: aluminum alloy
net wieght	58kg for mast
Max payload	40kgs
wind load	120km/h
temperature	-50 deg C to +60
sections	7
outer tube diameter	42mm-132mm

Details

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

one set of mast and accessories put into a plywood case

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M5-1.7-100	5	6	1.7	60-130	35	100
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.5-100	6	6	1.5	60-130	40	100
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.8-100	9	7	1.8	60-160	43	100
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-2.7-10	18	9	2.7	30-130	47	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

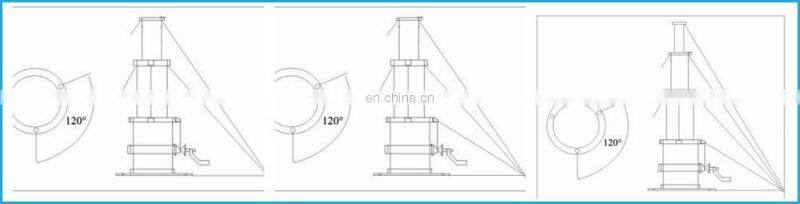

Installation

1) If extended height below 8m, the mast to be fixed with 3 layers nylon guy wires.

2)If the extended height between 8m-15m, the mast to be fixed with 3 layers pulling cord box .
3)If the extended height over 15m, the mast to be fixed with 4 layers pulling cord box.

Certifications

Welcome to contact

Company profile

About"Talents"
Talents is a Chinese company that design, manufacture mast system from 1m to 45m for nearly unlimited use,

that can deploy loads from 1kg to 600kg with height selected,

Our products are used worldwide by rescue and secuirty services, fire departments as weel as armed forces.

some popular masts are in great demand for referentc

6m pneumatic mast 30kg payload

click the pictures for viewing more info

10m manual winch mast 15kg payload

15m motorized mast 80kg payload

Any questions or inquiry, welcome to contact us at any time

Reply the inquiry by email within 24 hours

by Skype/Whatsapp/Wechat immidately
