10m Communication Manual Telescopic Mast With Reverse Base

Name: 10m Communication Manual Telescopic Mast With Reverse Base
Brand: talents
Availability: InStock

FOB Price

US$ 800 - 1,200 / Set

1 Set(Min. Order)

Port Port of Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents		Place of Origin	Tianjin, China
Model Number	TAL-M10-2-15

Product Description

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle

situation.

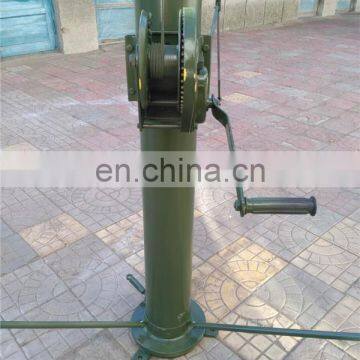

Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 1m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna.......
It can be used on the ground or vehicle mounted or the wall......

Specs list

Specification for 6m mast
Article number	TAL-M10-2-15
Lifting method	manual lifting
Closed length and extended length	2m to 10m
73material	for main tube: No.35 steel
Max payload	15kgs
wind load	120km/h
temperature	-50 deg C to +60
sections	7
outer tube diameter	30mm to 114mm
reference bottom base	Diameter:190mm Thickness: 12mm

Details

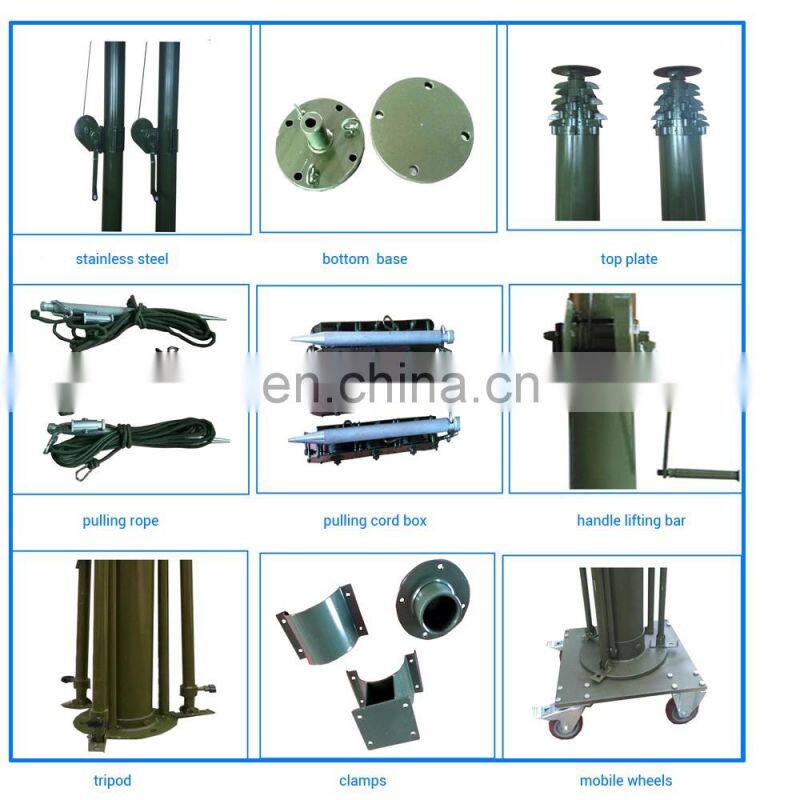

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Packing & Delivery

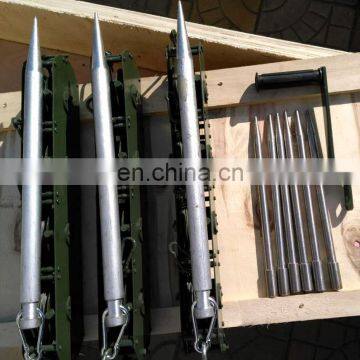

one set of mast and accessories put into a plywood case

Other Specification

Model No.	Extended height(m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
TAL-M3-1-20	3	3	1.0	70-90	15	20
TAL-M4-1.5-30	4	3	1.5	50-80	15	30
TAL-M4-1-20	4	3	1.0	70-90	16	20
TAL-M4-1.6-10	4	3	1.6	60-80	14	10
TAL-M5-1.65-10	5	4	1.65	50-80	17	10
TAL-M5-1.2-15	5	5	1.2	40-90	20	15
TAL-M5-1.5-60	5	5	1.5	50-90	20	60
TAL-M5-1.7-100	5	6	1.7	60-130	35	100
TAL-M6-1.7-10	6	5	1.7	50-90	21	10
TAL-M6-1.5-100	6	6	1.5	60-130	40	100
TAL-M6-1.3-60	6	7	1.3	40-130	32	60
TAL-M7-1.8-30	7	7	1.8	40-105	23	30
TAL-M8-1.5-20	8	8	1.5	40-130	34	20
TAL-M9-1.8-40	9	7	1.8	40-105	25	40
TAL-M9-1.8-30	9	7	1.8	40-105	25	30
TAL-M9-1.8-100	9	7	1.8	60-160	43	100
TAL-M9-1.9-5	9	7	1.9	30-90	25	5
TAL-M10-1.95-10	10	7	1.95	30-90	26	10
TAL-M10-2-40	10	7	2	30-105	31	40
TAL-M12-2.2-10	12	7	2.2	30-90	28	10
TAL-M12-2.1-15	12	7	2.1	30-90	28	15
TAL-M12-2-40	12	8	2.2	40-130	44	40
TAL-M15-2.45-10	15	8	2.45	30-105	33	10
TAL-M15-2.6-35	15	9	2.6	30-130	40	35
TAL-M15-2.5-200	15	7	2.5	70-200	200	70
TAL-M16-2.6-10	16	8	2.6	30-105	35	10
TAL-M18-2.7-10	18	9	2.7	30-130	47	10
TAL-M18-3.2-30	18	9	3.2	30-130	48	30
TAL-M18-3.7-100	18	7	3.7	50-130	47	100
TAL-M20-2.95-10	20	9	2.95	30-130	55	10
TAL-M20-3.20-20	20	8	3.20	40-130	58	20
TAL-M22-3.15-10	22	9	3.15	30-130	58	10
TAL-M25-3.4-10	25	10	3.4	30-150	72	10
TAL-M25-3.5-250	25	10	3.5	80-280	90	250
TAL-25-3.6-20	25	9	3.6	40-150	71	20
TAL-M30-3.85-10	30	10	3.85	30-150	84	10
TAL-M35-4.5-25	35	10	4.5	40-180	130	25

Workshop

Certifications

Welcome to contact

Company profile

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.

Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system, we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.

We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
