3m to 15m Telescopic Mast and Aluminum Material Mast and Winch Telescopic Mast

FOB Price

US$ 500 - 800 / Unit

1 Unit(Min. Order)

Port Shenzhen China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	talents extension pole		Place of Origin	Tianjin, China
Model Number	TAL-H-009

Product Description

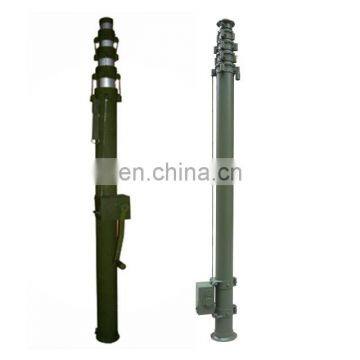

9m manual aluminum telescopic extension pole

Specifications of telescopic extension pole
Closed length	1.95m
Extended length	9.0m
Top loading	10kg
Temperature:	working temp: -40--+50C, Storage Temp:-55--+70C

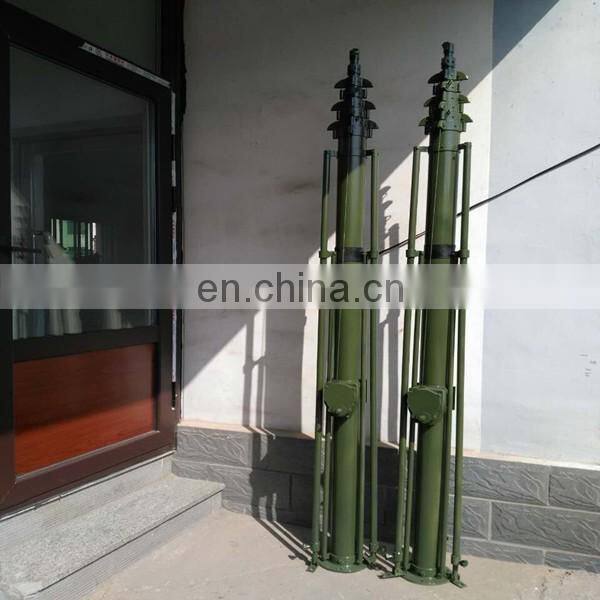

Color:	The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.
Material:	Main Pole: aluminum alloy Bottom base,rotation platform and tripod: iron steel
Appllication	The 9m manual aluminum telescopic extension pole is suitable for car,ship or land.It can help light transmission and camera and other equipment rise and drop to a predetermined height after its work.The company's products are also widely used in golf, soccer stadium lighting at night.

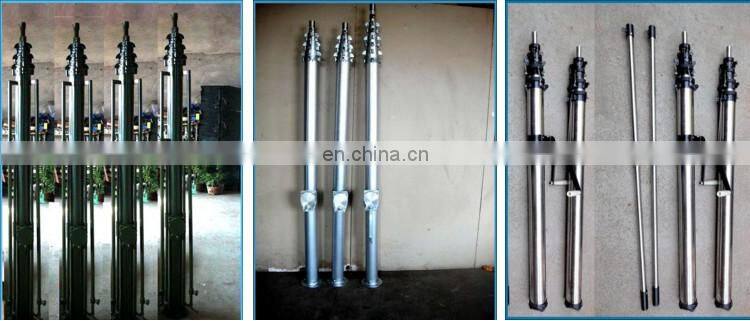

Detailed Images

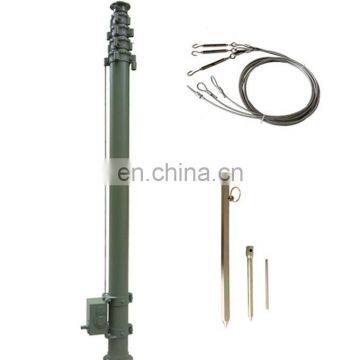

Accessories of telescopic extension pole
Main pole	1 unit

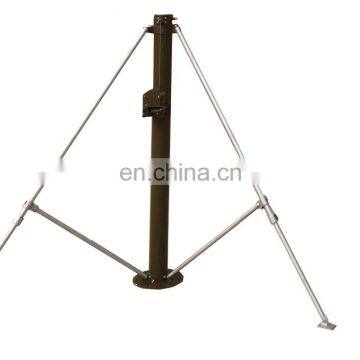

Tripod	1 unit
Top plate/ Bottom plate	1 piece
Car clamp	1 piece
Ground anchor	3 units

Specification

Specification 15m hand lifting telescopic mobile satellite antenna mast
Model No.	TAL-M15-2.45-10-A
Extended height	15.0m
Retracted height	2.45m
Max head-load	10kg
Mast self weight( without tripod)	around 63kg
Mast sections No.	7sections
Material	Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm)
Color	the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections	SectionNo. OD Thickness 1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm

Acessories
Mount model	Ground fixed type---without tripod
Accessories	handle lifting bar----------------------------------------1p Top flange--------------------------------------------------1pc Guy wire-----------------------------------------------------3pcs Guy stakes--------------------------------------------------3pcs stainless steel stakes------------------------------------3pc Ground anchors-------------------------------------------3pcs tripod-----------------------------------------------------------1pc

Packing & Delivery

PACKING:
One unit of telescopic extension pole to be wrapped with Poly tapes and then put into carto.

Installation Instructions:

1)The telescopic extension pole can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic extension pole needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the

shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended height (m)	No. Of section	Retracted height(m)	Outer tube range(mm)	Self weight (kg)	Max.payload (kg)
3	3	1.0	70-90	15	20
4	3	1.5	50-80	15	30
4	3	1.0	70-90	16	20
4	3	1.6	60-80	14	10
5	4	1.65	50-80	17	10
5	5	1.2	40-90	20	15
5	5	1.5	50-90	20	60
5	6	1.7	60-130	35	100
6	5	1.7	50-90	21	10
6	6	1.5	60-130	40	100
6	7	1.3	40-130	32	60
7	7	1.8	40-105	23	30
8	8	1.5	40-130	34	20
9	7	1.8	40-105	25	40
9	7	1.8	40-105	25	30
9	7	1.8	60-160	43	100
9	7	1.9	30-90	25	5
10	7	1.95	30-90	26	10
10	7	2	30-105	31	40
12	7	2.2	30-90	28	10
12	7	2.1	30-90	28	15
12	8	2.2	40-130	44	40
15	8	2.45	30-105	33	10
15	9	2.6	30-130	40	35
15	7	2.5	70-200	200	70
16	8	2.6	30-105	35	10
18	9	2.7	30-130	47	10
18	9	3.2	30-130	48	30
18	7	3.7	50-130	47	100
20	9	2.95	30-130	55	10
20	8	3.20	40-130	58	20
22	9	3.15	30-130	58	10
25	10	3.4	30-150	72	10
25	10	3.5	80-280	90	250
25	9	3.6	40-150	71	20
30	10	3.85	30-150	84	10
35	10	4.5	40-180	130	25

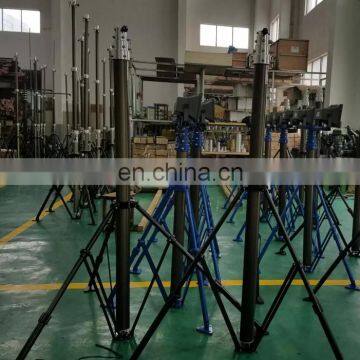

Workshop

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company

Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
