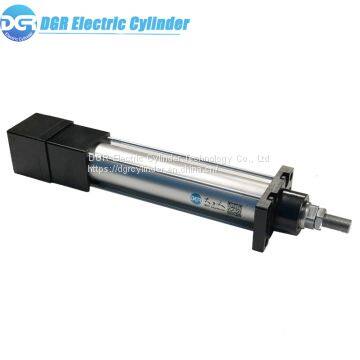

Round Stainless Steel Waterproof Precision Position Control Servo Electric Cylinder For Stamping Equipment

DGR-HT-50 Round Stainless Steel electric linear actuators Model number indications:

DGR-HT-50 Round Stainless Steel electric linear actuators Technical Data

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

DGR-HT-50 Electric Cylinder For Stamping Equipment Motor Selection List

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

Electric Cylinder Products Show

Features of DGRHT50 Electric Cylinder For Stamping Equipment

High Accuracy

Using servo motor as the drive mechanism, the servo control system has very high precision and can achieve precise positioning of about 0.01mm.

High Reliability

Highly security

Long Life

High-precision transmission parts such as ball screws can reduce the friction and increase the service life of the electric cylinder.

Wide Thrust Range

The ball screw acts as a transmission member to achieve linear reciprocating motion, reducing motion friction, and the transmission efficiency is over 90%.

Careful Material Selection

1.  Round carbon steel is used as the cylinder material, the thrust is very large, and the maximum rated load can reach 20 tons.

2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)

3. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

   3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use

   4.All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)

Duty Cycle

The ball screw can be operated frequently and achieve high strength, high speed and high precision positioning.

Complete Testing

Professional factory inspection: including appearance, stroke, load, noise decibel etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

Wide Selection of Motors

1. Servo and inverter control are performed by servo motor, stepper motor, DC motor, and AC motor.

2. Motor comes with brake to ensure secure operation.

Applications of DGR electric cylinder

	Entertainment Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats.
VR Simulations multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
	Automobile industry  Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
	Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
