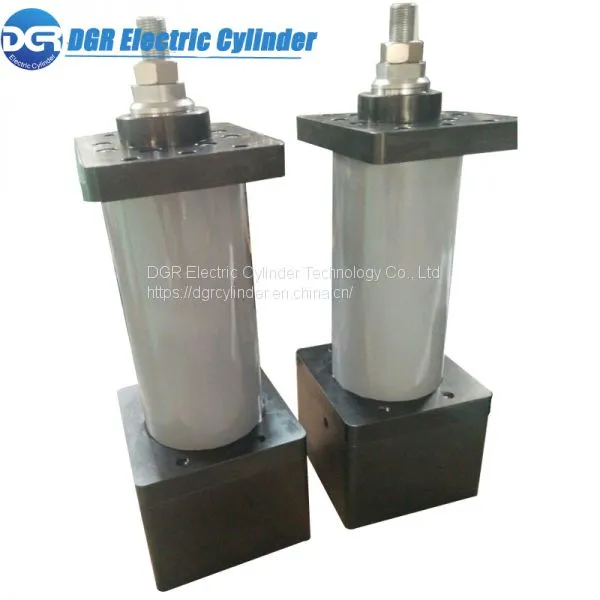

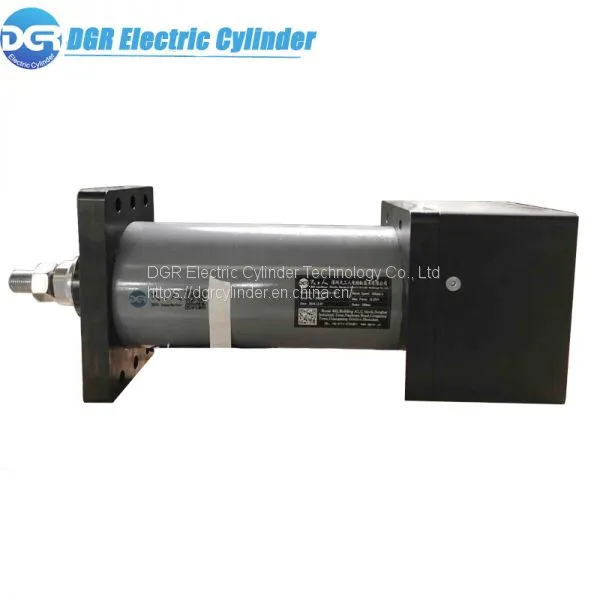

Professional Custom Precision 50KN Large Thrust Servo Electric Piston Cylinder for Packaging Machinery
- 800 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Other
- 10 days
Product Details
Brand Name: | DGR | Place of Origin: | China | Model Number: | DGR-HT-140 |
Power: | Other, electri | Standard or Nonstandard: | Nonstandard | Structure: | Piston Cylinder |
Shaft Diameter: | Cylinder bore:140mm | Maximum Stroke: | 1200mm | Body Material: | Stainless Steel |
Product Description
DGR-HT-140 50KN Large Thrust electric cylinder Model designations:
DGRHT | 140 | T5 | L1200 | S250 |
Heavy duty electric cylinder | Bore/size | Lead T5=5mm T10=10mm | Stroke L1200=1200mm | Rated speed S250=250mm/s |
F80 | I/U | P11000 | i1 | |
Rated load F80=80KN | Motor mounting Inline mounting :I Parallel mounting:U | Power P11000=11000W | Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1 |
Product Series | DGRHT140 |
Screw lead / pitch (mm) | 20 |
Max. Power of Motor (W) | 11000 |
Max. Rated Thrust (N) | 80000 |
Max. Speed (mm/s) | 800 |
Rated Driving Torque (N.m) | 290 |
Max. Ball Screw Diameter (mm) | 63 |
Rated Dynamic Load of Ball Screw (kgf) | 11444 |
Max. stroke (mm) | 1200 |
Axial Backlash (mm) | 0.02-0.04 |
Lead Error Every 300mm (mm) | 0.023 |
Repeatability Accuracy (mm) | 0.02 |
Note:
1. If you need to know the ball screw life, please contact customer service for detailed consultation;
2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

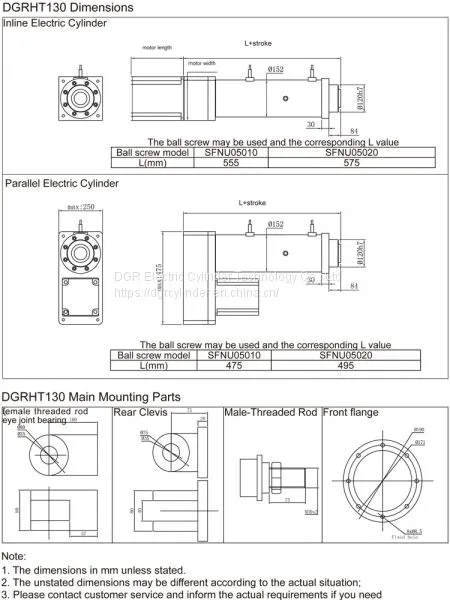

DGR-HT-140 Electric Piston Cylinder for Packaging Machinery Motor Selection List
Product Series | DGRHT40 |
Flange Size of Optional Servo Motor Series (mm) | 180/ 220 |
Flange Size of Optional Stepper Motor Series (mm) | —— |
Flange Size of Optional Gear Box Series (mm) | 160/ 190/ 242 |
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

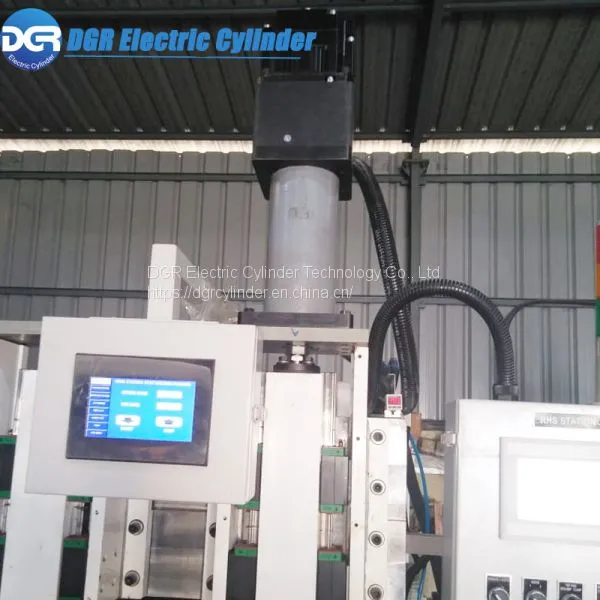

Electric Piston Cylinder for Packaging Machinery Products Show
Features of DGRHT140 Electric Piston Cylinder for Packaging Machinery
High Accuracy
High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.
High Reliability
Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.
Long Life
Run over a distance of 100,000km
Careful Material Selection
1. Use round carbon steel as the cylinder material
2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure
4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use
4. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Duty Cycle
Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.
Complete Testing
Professional factory inspection:3appearance, speed, accuracy
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer’s particular application.
3.5 years’ experience in electric cylinder production.
Wide Selection of Motors
A variety of AC servo motors or stepper motors for option
DGR electric cylinder applications
Entertainment Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats. | |
VR Simulations multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator | |
Automobile industry Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.; | |
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic. | |
Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc | |
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc. |
