Linear Drive Large Thrust Long Life Carbon Steel Servo Electric Cylinder for Automatic Assembly Machine
- 800 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Other
- 10 days
Product Details
Brand Name: | DGR | Place of Origin: | China | Model Number: | DGR-HT-180 |
Power: | Other, electric | Standard or Nonstandard: | Nonstandard | Structure: | Digital Cylinder |
Shaft Diameter: | Cylinder bore:180mm | Maximum Stroke: | 500mm | Body Material: | Stainless Steel |
Product Description
DGR-HT-180 Electric Cylinder for Automatic Assembly Machine Model designations:
DGRHT | 180 | T5 | L500 | S250 |
Heavy duty electric cylinder | Bore/ size | Lead T5=5mm T10=10mm | Stroke L500=500mm | Rated speed S250=250mm/s |
F120 | I/U | P15000 | i1 | |
Rated load F120=120KN | Motor mounting Inline mounting :I Parallel mounting:U | Power P15000=15000W | Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1 |
DGR-HT-180 Electric Cylinder for Automatic Assembly Machine Technical Data
Product Series | DGRHT180 |
Screw lead / pitch (mm) | 20 |
Max. Power of Motor (W) | 15000 |
Max. Rated Thrust (N) | 120000 |
Max. Speed (mm/s) | 800 |
Rated Driving Torque (N.m) | 450 |
Max. Ball Screw Diameter (mm) | 80 |
Rated Dynamic Load of Ball Screw (kgf) | 12911 |
Max. stroke (mm) | 500 |
Axial Backlash (mm) | 0.02-0.04 |
Lead Error Every 300mm (mm) | 0.023 |
Repeatability Accuracy (mm) | 0.02 |
Note:
1. If you need to know the ball screw life, please contact customer service for detailed consultation;
2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
DGR-HT-180 Electric Cylinder for Automatic Assembly Machine Motor Selection List
Product Series | DGRHT180 |
Flange Size of Optional Servo Motor Series (mm) | 180/ 220 |
Flange Size of Optional Stepper Motor Series (mm) | —— |
Flange Size of Optional Gear Box Series (mm) | 160/ 190/ 242 |
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

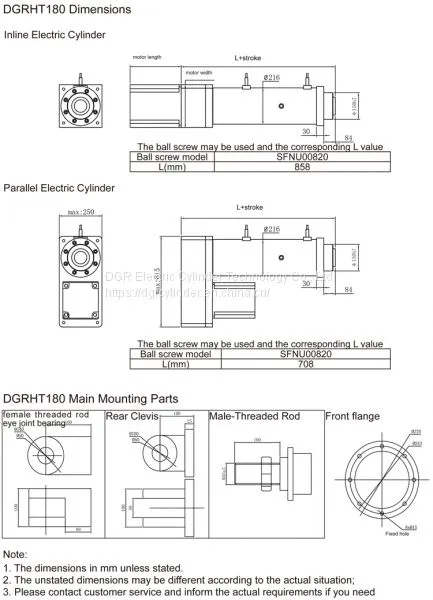

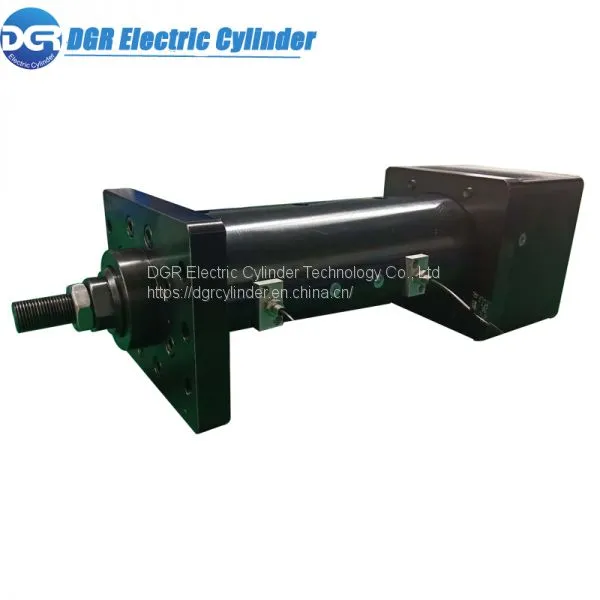

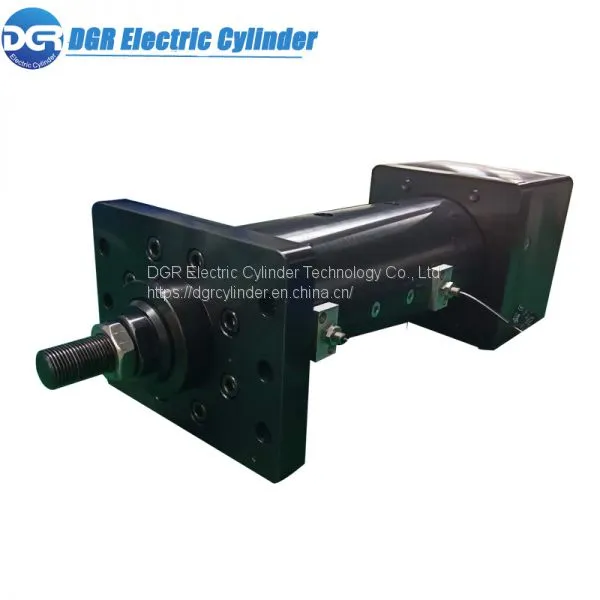

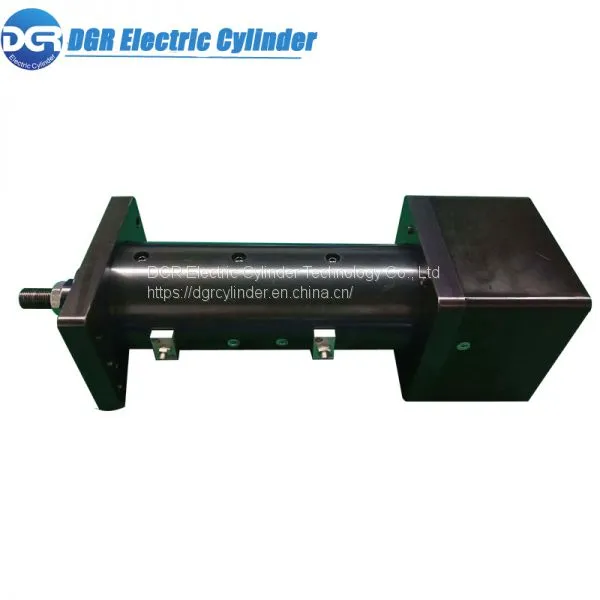

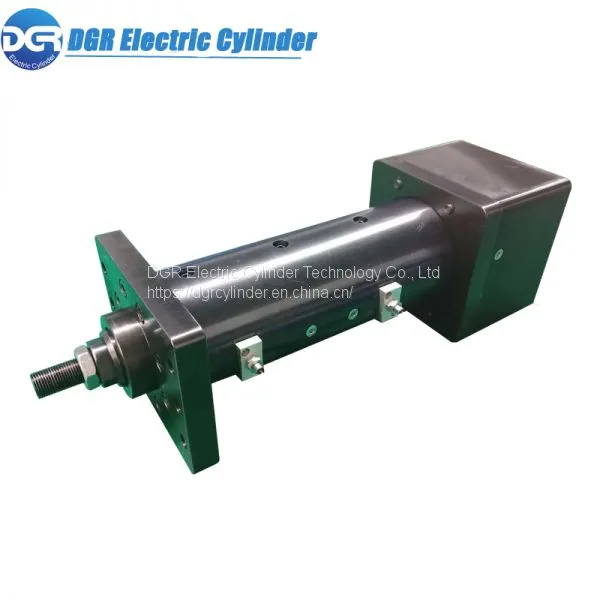

Carbon Steel servo electric cylinder Products Show
Features of DGRHT180 Carbon Steel servo electric cylinder
High Accuracy
The control precision reaches 0.01mm; the precision control thrust, the pressure sensor is increased, and the control precision can reach 1%;
Long Life
Run over a distance of 100,000km
Wide Thrust Range
Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.
Careful Material Selection
1. Use round carbon steel as the cylinder material
2. Select sensor components of internationally famous brands .
3. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. The connection between the screw nut and the piston rod is rigid
2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
4. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Work
The servo electric cylinder can be trouble-free in harsh environments, and the protection level can reach IP66.
Complete Testing
Professional factory inspection:Appearance, speed, accuracy, noise decibel etc.
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer’s particular application.
3.All customer requirements will be responded within 12 hours
Wide Selection of Motors
1. A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands
2. Motor comes with brake to ensure secure operation.
Entertainment Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats. | |
VR Simulations Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator | |
Automobile industry Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.; | |
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic. | |
Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc | |
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc. |
