Main features of PC lampshade extruder:
1. The production line is suitable for co-extrusion molding of PVC, PE, PP, PS, ABS, PET, PC, POM, PMMA, EVA and other materials with different colors;
2. It can give full play to the unique firmness of various plastics, making them play a leading role in composite materials;
3, can be a variety of materials together forming the overall technology, do not have to glue or laminate, so high efficiency, low cost;
4, hard material and soft material compound, set strength and elasticity in one;
5. Screw barrel material: high-strength nitride alloy steel (38CrMoALA) or high-strength quenching alloy steel (9Cr18MoV);
6. The main engine is driven by imported frequency converter or servo motor;
7. Imported digital temperature control meter with dual digital PID adjustment;
8. Heating and forced air cooling in zone 4 of the drum; copper heat sink can be brought as required to ensure the heat dissipation effect;
9. C-type flange connector ensures fast connection between downstream equipment and extruder
10. Optional with or without exhaust device;
11. Hard tooth surface reducer with high precision and low noise;
12. Special microcomputer control software and microcomputer operation panel for extruder can be configured;
13. Stainless steel hopper or hopper with drying function can be configured;

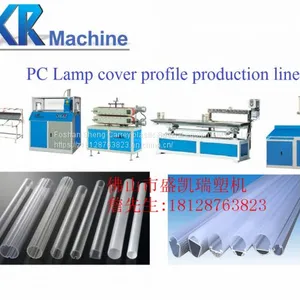

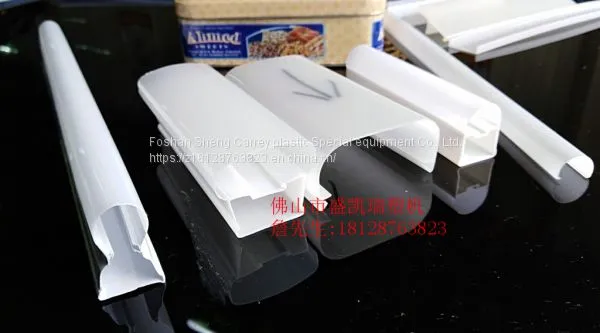

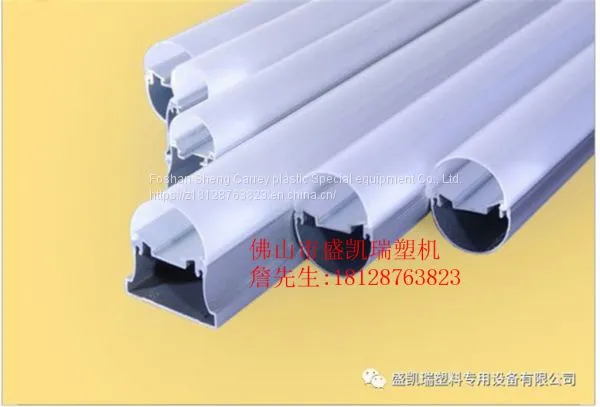

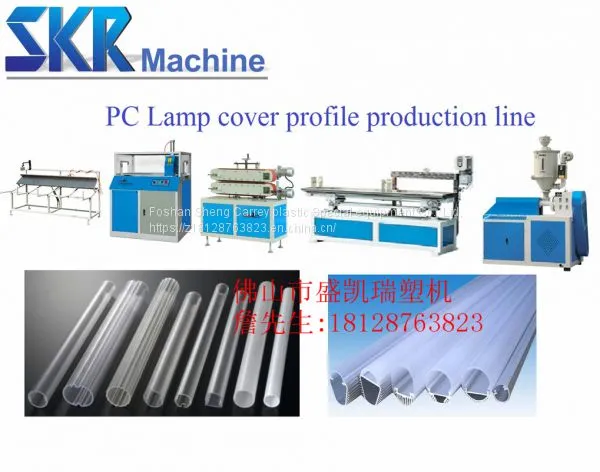

This production line is mainly used for PC lampshade T5 T8 and other special transparent tubes/mask/shell, diffusion chimney products, such products on the stability of the whole production line is very high, especially the extruder plasticizing stability, the degree of precision mould, and the size of PC/PMMA plastic products surface finish effect is very big.Our company constantly improve the details of the production line, effectively solve the problems of surface pull marks, seismic lines, etc., this PC lampshade production line can steadily produce PC and other profiles.The production line has the characteristics of high plasticization, high transparency, high output and low energy consumption.The production line is mainly composed of: precision extruder, three-dimensional moving shaping table, tractor, cutting machine, stacking frame and so on.The main machine USES efficient exhaust extruder, frequency conversion speed regulation, according to various specifications of the product configuration of different specifications of the main machine;The setting table adopts stainless steel water tray, vacuum pump;The whole machine can be adjusted in three dimensions;The tractor is double power synchronous drive belt type tractor, and the cutting length is fixed length.The material rack adopts pneumatic discharging, which can be used to produce PC, profile, acrylic, lamp tube, lamp shade, etc.
