JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
Model Explanation:
The TH038 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.
Benefits of High quality through hole slip ring with ID 30mm customized bore sliprings
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
Manufacture various kinds of slip rings as request, OEM acceptable.

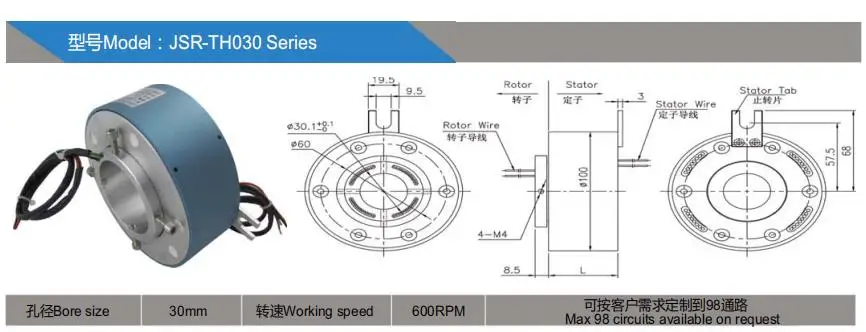

Flange mounted:
High quality through hole slip ring with ID 30mm customized bore sliprings
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample: 5 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: kris Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
|
|
