XIECHENG 12KW Water Mold Temperature Controller Machine for Plastic Industry
1, PID adopted to control the temperature. Keeping the error within ±0.1°C.Keeping long time constant temper-
ature, high efficiency and energy saving.
2, Six protective measures: alarm for thermo- couple open circuit, phase fault protect, pump protect, overheat p-
rotect, oil shortage protect.
3, Dual digital display shows the actual temperature and the seat temperature.
4, Microcomputer chip control panel with light-touch switch to start the machine with one press
Visual and easy to operate, easy to maintain
5, Stainless steel tank without leakage and durable
6, Circumfluence type is able to recollect the diathermanous oil easily and rapidly
7, Exquisite appearance and small in size
Product specification:
Model | XC-TM12KW-W |
heat transfer medium | water |
highest temperature | 1000C |
Pump power(kw) | 0.75 |
Pump flow(L/min) | 56 |
Throw of pump | 38 |
Heating power | 6 |
Inlet of medium | 12mm*2 |
Practical cooling capacity(Kcal/h) | 1000 |

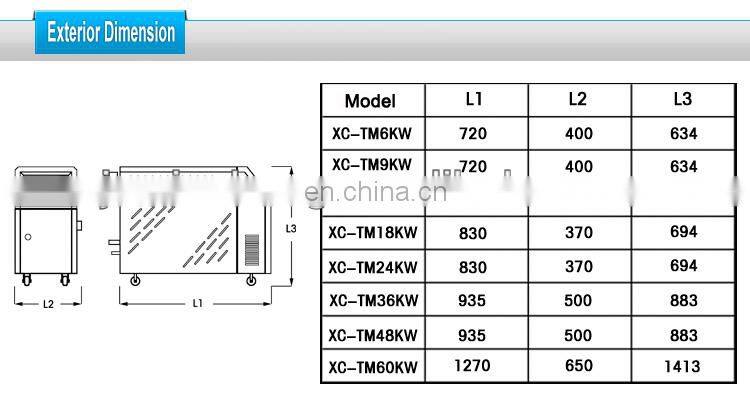

Dimension(mm) | 739*310*643 |
Net weight(kg) | 50 |
Model | XC-TM9KW-W | XC-TM12KW-W | XC-TM18KW-W | XC-TM24KW-W | XC-TM36KW-W | XC-TM60KW-W |
heat transfer medium | water | |||||
highest temperature | 1000C | |||||
Pump power(kw) | 0.37 | 1.5 | 1.5 | 2.2 | 3.75 | 3.75 |
Pump flow(L/min) | 50 | 80 | 80 | 200 | 380 | 380 |
Throw of pump | 30 | 45 | 45 | 30 | 35 | 35 |
Heating power | 9 | 12 | 18 | 24 | 36 | 60 |
Inlet of medium | 12mm*4 | 12mm*4 | 1.5"*1 | 1.5"*1 | 1.5"*1 | 1.5"*1 |
Practical cooling capacity(Kcal/h) | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 |
Dimension(mm) | 739*310*643 | 739*310*643 | 966*370*694 | 966*370*694 | 966*370*694 | 1380*530*1083 |
Net weight(kg) | 50 | 50 | 110 | 110 | 120 | 135 |
