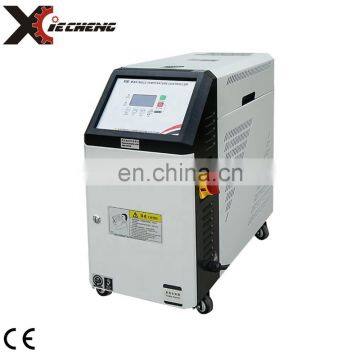

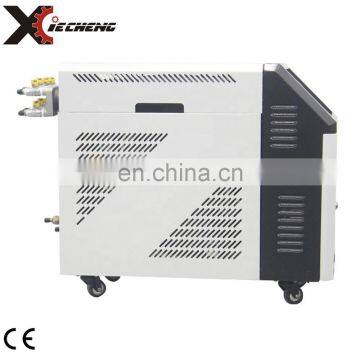

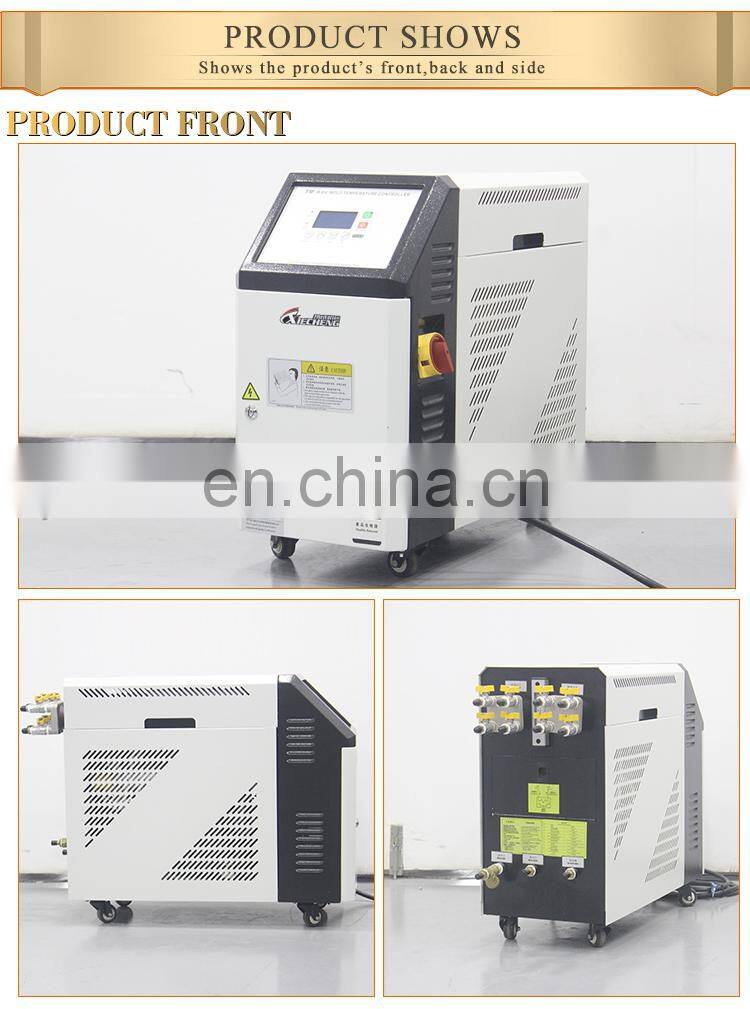

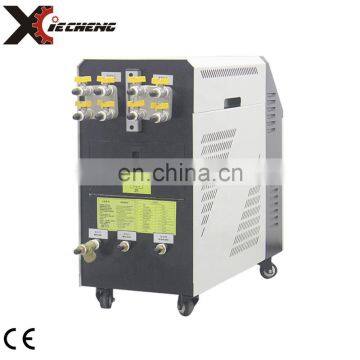

Hot Sale Max 200 Degree Oil Type Price Mold Temperature Controller for Rubber Plastic Industry
- Jiangmen/Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| Type | Oil Temperature Machine | |||
| Weight | 55kg | Dimension(L*W*H) | 730*310*643mm | |
| Voltage | 380V/50Hz/3Phase as usual | Temperature Range | 30~200 degree | |
| Certification | CE | Application | plastic industrial mold heater | |
| Condition | New | Power(W) | 9KW | |
| Internal Piping Size | 3/8''*4 | Temperature Control Accuracy | +/- 0.1 degree |

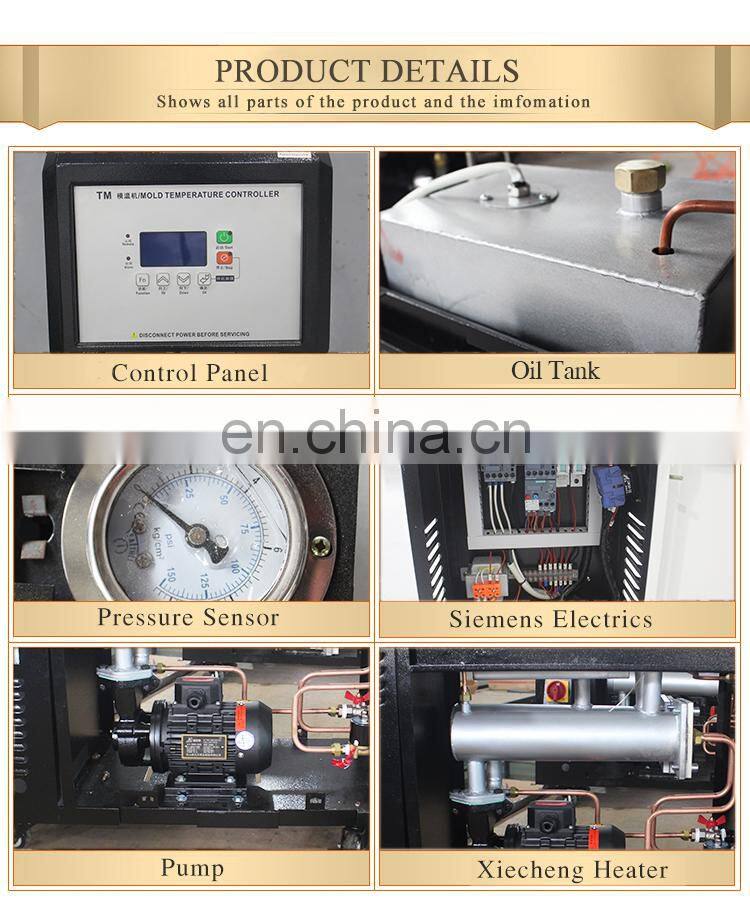

Product Description
hot sale max 200 degree oil type price mold temperature controller for rubber plastic industry

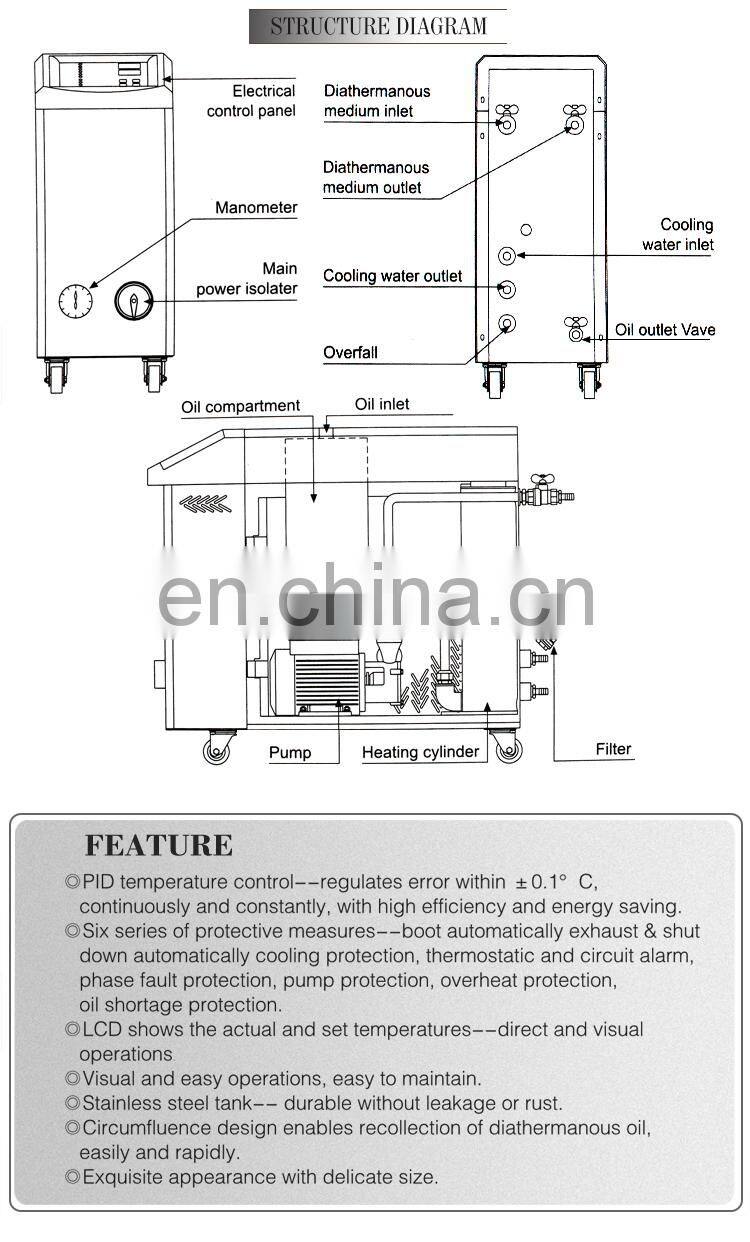

1, PID adopted to control the temperature. Keeping the error within ±0.1°C.Keeping long time constant temperature, high efficiency and energy saving.
2, Six protective measures: alarm for thermo- couple open circuit, phase fault protect, pump protect, overheat protect, oil shortage protect.
3, Dual digital display shows the actual temperature and the seat temperature.
4, Microcomputer chip control panel with light-touch switch to start the machine with one press
Visual and easy to operate, easy to maintain
5, Stainless steel tank without leakage and durable
6, Circumfluence type is able to recollect the diathermanous oil easily and rapidly
7, Exquisite appearance and small in size
| Model | Transfer Medium | Max.Temp. | Pump(KW) | Pump Flow(L/min) | Loading Distance(m) | Heating Distance(KW) | Inlet/Outlet Diameter | Dimension(mm) | Approx.Net Weigh(KG) | |
XC- TM6KW-W | Water | 100°C | 0.37 | 42 | 28 | 6 | 3/8"×2 | 730*310*643 | 45 | |
XC- TM9KW-W | 0.37 | 42 | 28 | 9 | 3/8”×4 | 730*310*643 | 46 | |||
| XC-TM12KW-W | 0.75 | 56 | 38 | 12 | 3/8”×4 | 730*310*643 | 50 | |||
| XC-TM18KW-W | 1.5 | 160 | 27 | 9*2 | 1"×1 | 990*520*983 | 65 | |||
| XC-TM24KW-W | 1.5 | 160 | 27 | 12*2 | 1"×1 | 990*520*983 | 100 | |||
XC- TM36KW-W | 2.2 | 315 | 26 | 12*3 | 1.5"×1 | 1090*520*983 | 110 | |||
XC- TM6KW-O | Oil | 200°C | 0.37 | 33 | 22 | 6 | 3.8"×2 | 730*310*643 | 52 | |

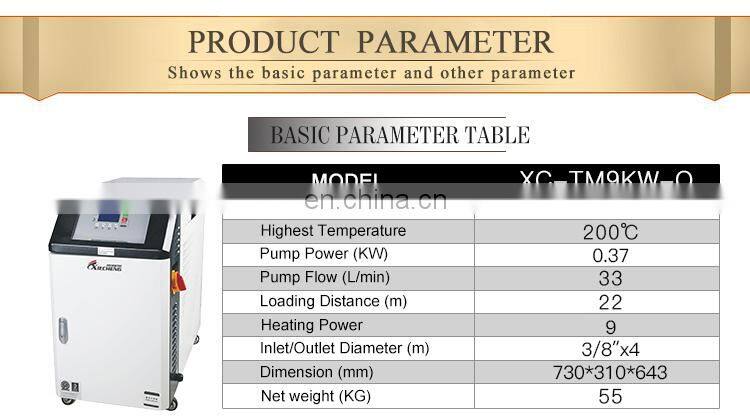

XC- TM9KW-O | 0.37 | 33 | 22 | 9 | 3/8"×2 | 730*310*643 | 55 | |||
| XC-TM12KW-O | 0.75 | 45 | 30 | 12 | 3/8”×4 | 730*310*643 | 55 | |||
| XC-TM18KW-O | 1.5 | 128 | 21 | 9*2 | 1"×1 | 990*520*983 | 68 | |||
| XC-TM24KW-O | 1.5 | 128 | 21 | 12*2 | 1"×1 | 990*520*983 | 110 | |||
| XC-TM36KW-O | 2.2 | 252 | 21 | 12*3 | 1.5"×1 | 1090*520*983 | 113 | |||
