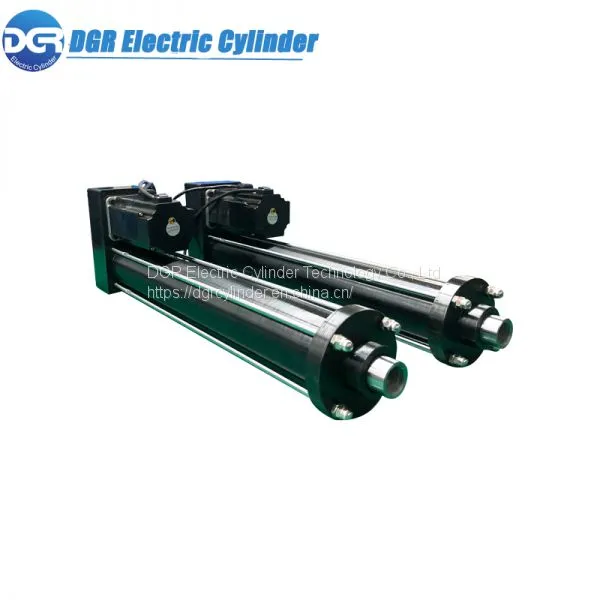

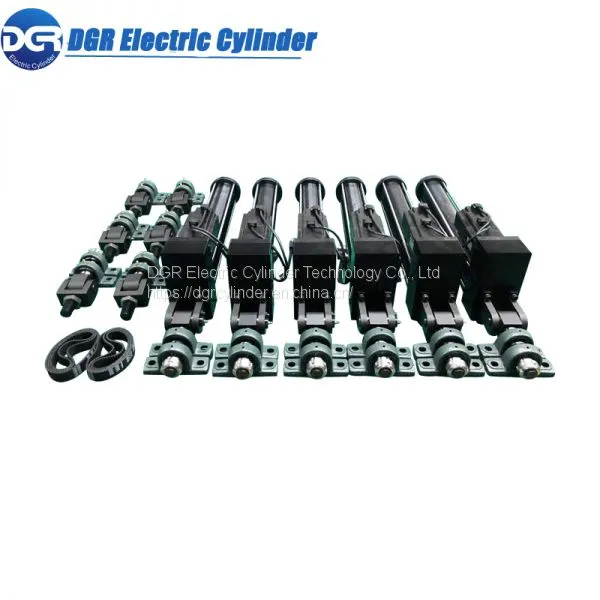

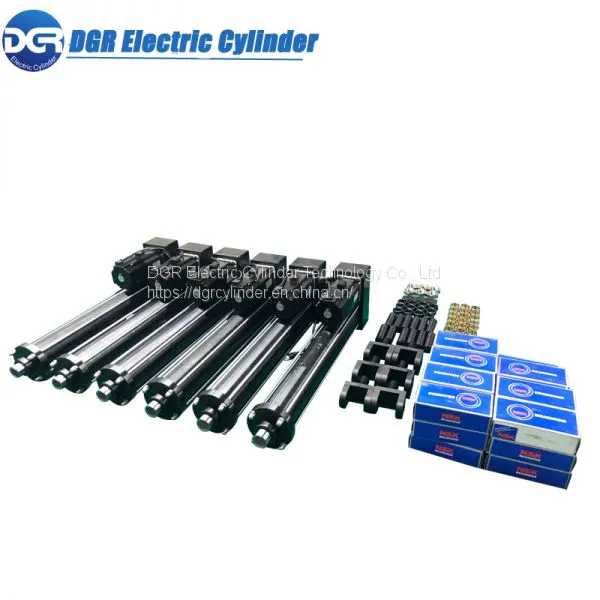

Help CenterSpeed And Position Adjustable High Positioning Accuracy Telescopic Electric Cylinder With Servo Driven
Related Products
-
Round Body Stainless Steel Long Stroke Low Noise Linear Electric Cylinder For Food IndustryUS$ 365 - 385MOQ: 1 Piece -
Environmentally Friendly High Response 80KN Rarge Thrust Piston Electric Cylinder for Industrial Production LinesUS$ 370 - 390MOQ: 1 Piece
-
Non-standard Precise Position Control 2 Meters Long Stroke Heavy Duty Electric Push-pull Linear ActuatorUS$ 360 - 380MOQ: 1 Piece
-
High Quality Long Life Piston Electric Cylinder Industrial DC Servo Electric Linear Actuator For Pump TruckUS$ 370 - 390MOQ: 1 Piece
-
High Quality Long Life 2000mm Ultra Long Stroke Precision Positioning Servo Electric Linear ActuatorUS$ 360 - 380MOQ: 1 Piece
DGR-HT-63 Speed And Position Adjustable linear actuator Model designations:
DGRHT |
63 |
T5 |
L1500 |
S250 |
Heavy duty electric cylinder |
Bore/size |
Lead T5=5mm T10=10mm |
Stroke L1500=1500mm |
Rated speed S250=250mm/s |
F5 |
I/U |
P1000 |
i1 |
|
|
Rated load F5=5KN |
Motor mounting Inline mounting ：I Parallel mounting：U |
Power P1000=1000W |
Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1 |
DGR-HT-63 Speed And Position Adjustable linear actuator Technical Data
Product Series |
DGRHT63 |
|
Screw lead / pitch (mm) |
5 |
10 |
Max. Power of Motor (W) |
1000 |
|
Max. Rated Thrust (N) |
5000 |
|
Max. Speed (mm/s) |
250 |
500 |
Rated Driving Torque (N.m) |
4.2 |
8.5 |
Max. Ball Screw Diameter (mm) |
20 |
20 |
Rated Dynamic Load of Ball Screw (kgf) |
1551 |
1516 |
Max. stroke (mm) |
1500 |
|
Axial Backlash (mm) |
0.02-0.04 |
0.02-0.04 |
Lead Error Every 300mm (mm) |
0.023 |
0.023 |
Repeatability Accuracy (mm) |
0.02 |
0.02 |
Note:
1. If you need to know the ball screw life, please contact customer service for detailed consultation;
2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
DGR-HT-63 Electric Cylinder With Servo Driven Motor Selection List
Product Series |
DGRHT63 |
Flange Size of Optional Servo Motor Series (mm) |
86/90 |
Flange Size of Optional Stepper Motor Series (mm) |
86 |
Flange Size of Optional Gear Box Series (mm) |
90 |
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Features of DGRHT63 Electric Cylinder With Servo Driven
High Accuracy
High precision lead screw and motor for high positioning accuracy, fast response, adjustable stroke and speed
High Reliability
Multiple, multiple security measures to ensure safe operation of equipment
Long Life
Run over a distance of 100,000km
Wide Thrust Range
Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.
Careful Material Selection
1. Use round carbon steel as the cylinder material
2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure
4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. The connection between the screw nut and the piston rod is rigid
2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3. Adopt domestic ball screw and bearing products, light load output, high cost performance
4. All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Duty Cycle
Use high-precision transmission parts such as ball screws to reduce friction and increase the service life of electric cylinders
Complete Testing
Professional and detailed factory testing: Appearance, thrust, stroke, speed, accuracy, noise decibel
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer’s particular application.
Wide Selection of Motors
Can choose AC motor, DC motor, stepper motor, servo motor.
DGR electric cylinder applications
|
Entertainment Six degrees of freedom motion platform latform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats. |
|
VR Simulations Multi-degree of freedom |
|
|
Automobile industry
Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.; |
|
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic. |
|
|
Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc |
|
|
|
