Home > Products > Water Well Drilling Rig > FY200 Crawler Percussive Rotating Rock Borehole Drilling Rig For Water Well 200 Meters

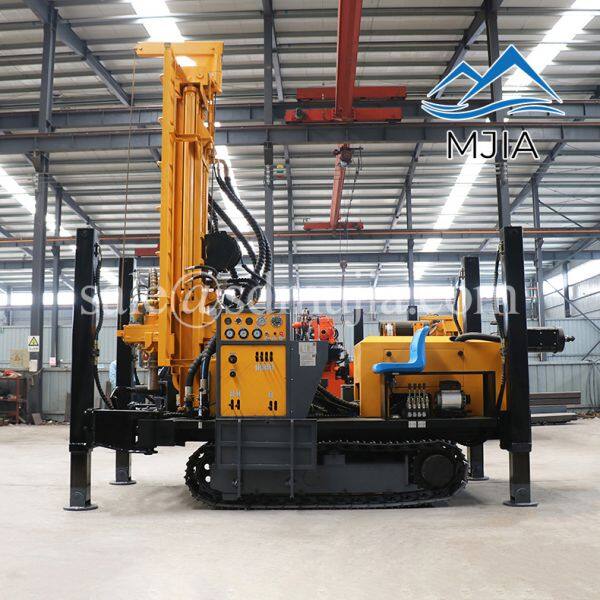

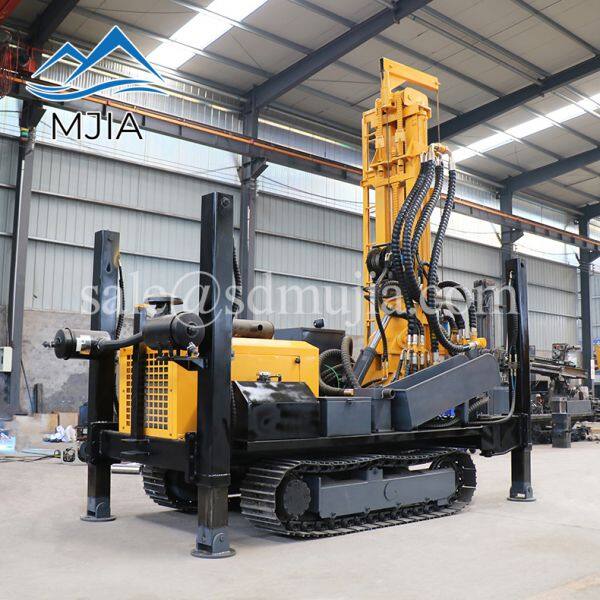

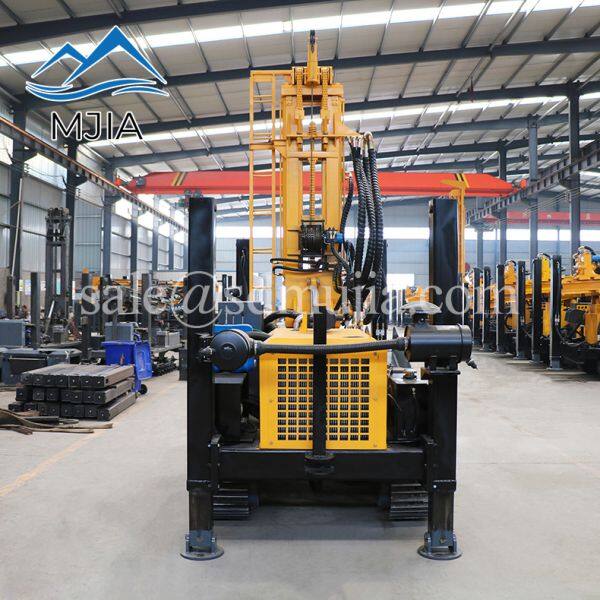

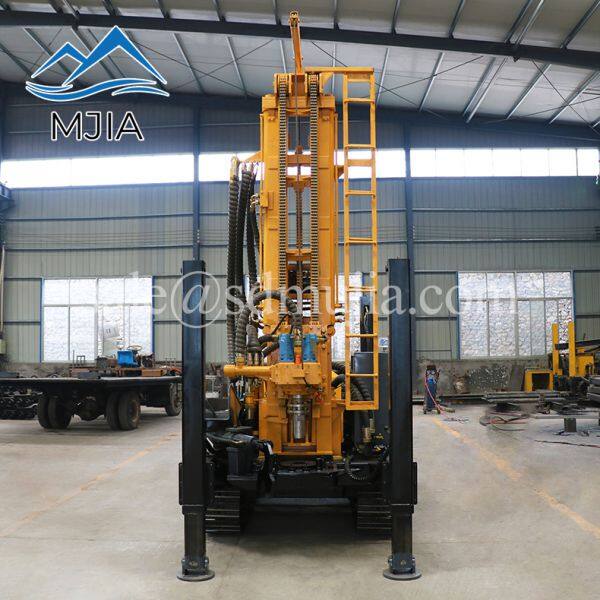

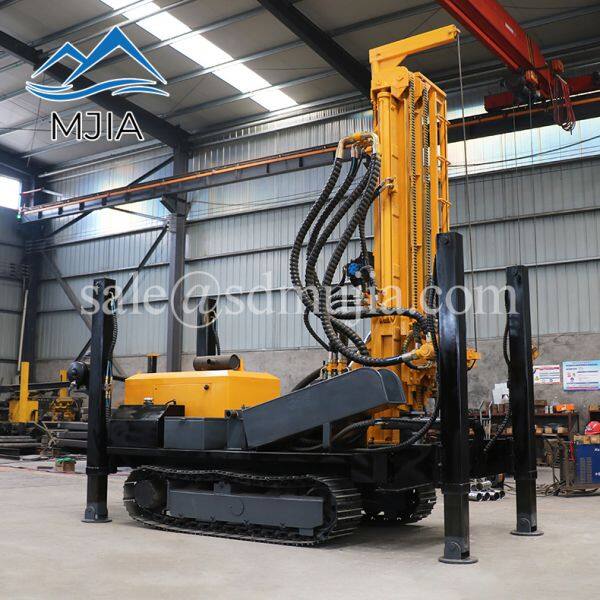

FY200 Crawler Percussive Rotating Rock Borehole Drilling Rig For Water Well 200 Meters
- 12 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | MJIA | Place of Origin: | China | Model Number: | FY 200 |
| Type: | Other, Percussive Rotating Drill | Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | One Year | Weight: | 4.6 T | Dimension(L*W*H): | 3800*1600*2450 MM |
| Power Type: | Diesel | Voltage: | 380 V | Usage: | Water Well |
| Condition: | New | Power(W): | 65 KW |
Product Description
FY200 crawler pneumatic water well drilling rig
1. The applications of FY200 crawler pneumatic water well drilling rig
l civil engineering drilling
l geothermal drilling
l water well drilling
2. Advantages of FY200 pneumatic water well drilling rig
l Large Hole Diameter
l Deep Drilling
l High Penetration Rate, especially under pure rock condition
l Flexible Movement
l Wide Application Area
1. The specifications of FY200 crawler pneumatic water well drilling rig
Model | FY200 | |
Gross weight | t | 4.6 |
Dimension | mm | 3800*1600*2450 |
Aperture | mm | 140-325 |
Drilling depth | m | 200 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 65 |
Rotary speed | rpm | 50-70 |
Rotation torque | n.m | 5000-6500 |
