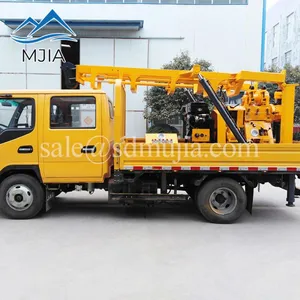

XYC-200 Hydraulic Rock Core Sample Machine Water Well Drilling Rig 200 Meters
- 12 Set / Sets per Month
- Qingdao
- T/T L/C PayPal Other Cash
- 10 days
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Brand Name: | MJIA | Place of Origin: | China | Model Number: | XYC-200 |
Type: | Core Drilling Rig | Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | One Year | Weight: | 5 T | Dimension(L*W*H): | 6*2*2.25 m |
Power Type: | Diesel | Voltage: | 380 V | Usage: | Water Well |
Condition: | New | Power(W): | 22 HP For The Drilling Rig |
Product Description

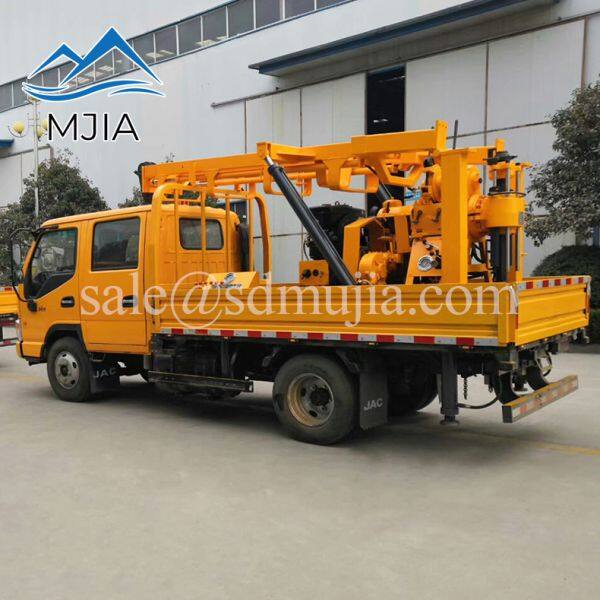

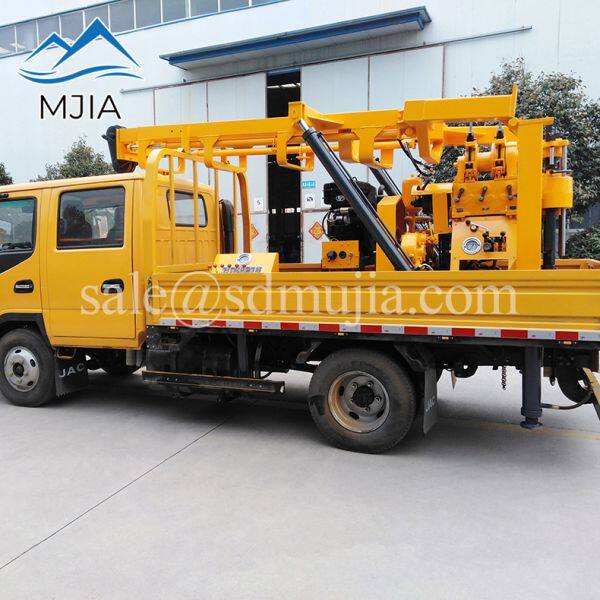

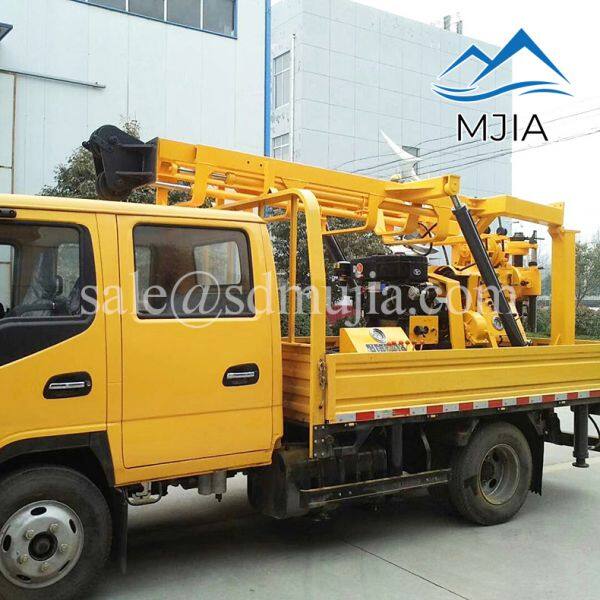

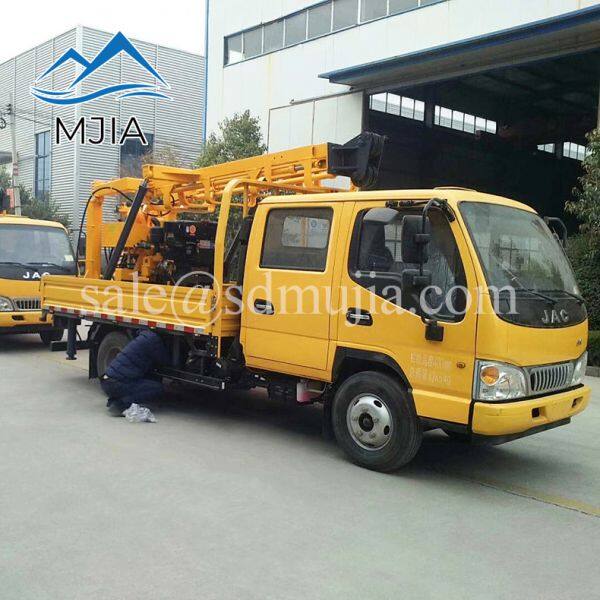

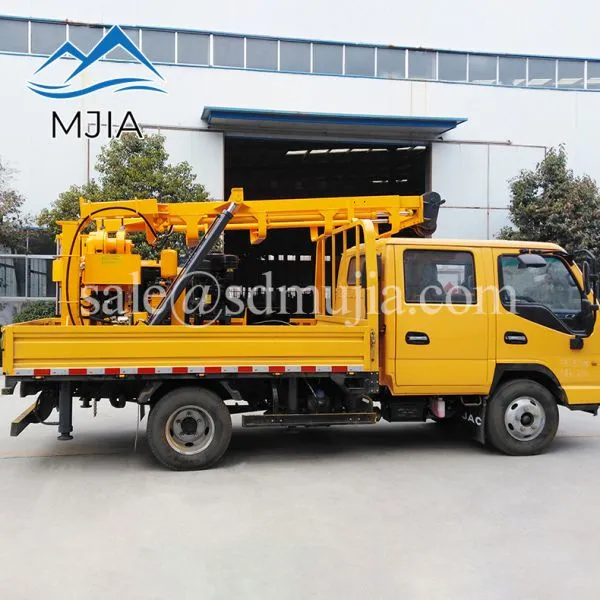

XYC-200 vehicle-mounted hydraulic water well drilling rig
1. Applications of XYC-200 vehicle-mounted hydraulic water well drilling rig
l Civil water well
l Geological exploration
l Soil survey
l Road and building exploration
l Mind exploration on the ground
l Blast hole
l Borehole
2. Features of XYC-200 vehicle-mounted hydraulic water well drilling rig
l The truck chassis is a double cap, which is enough to carry the rig team and allows them to have a good rest.
l The truck mounted drilling rig has four hydraulic stands, which assists the rig to balance during drilling.
l The rig is has the full hydraulic control drill mast, which increases drilling safety and efficiency, reduces labor usage and saves cost.
l The rig has the electric engine starter, which allows the machine to work in extreme weather condition.
l The rig has two hydraulic slide tracks, which makes it easier to lift up the rod without opening the gear box. The slide device extends the life span of the rig.
l The hydraulic tube twist machine can be installed, which helps to unload the rod.
l The truck mounted drilling rig is full automatic, which is easy to operate and free of maintenance.
3. Specifications of XYC-200 vehicle-mounted hydraulic water well drilling rig
XYC-200 Vehicle-mounted hydraulic water well drilling rig | ||
Drilling Depth (m) | 30-200 | |
Drilling Diameter (mm) | 300-75 | |
Drilling Angel (mm) | 90-75 | |
Rotation Speed (r/min) | 64/128/287/557 | |
Feed Stroke (mm) | 450 | |
Main Winch Pull Force (kg) (single line)(Kg) | 1600 | |
Main Winch Roll Capacity (m) (m) | 35 | |
Pull Speed (r/s) | 17/35/75/151 | |
Wire Rope Diameter (mm) | 12.5 | |
Mast Height (mm) | 7000 | |
Mast Effective Height (mm) | 6500 | |
Active Rod (mm) | 59*53 | |
Drill Rod (mm) | 42/50/60 | |
Rig Weight ( kg) | 1150 | |
Engine | Model | ZS1115 Diesel Engine |
Rated Power | 14.7 KW/2200 Rpm | |
BW 160 Mud Pump | Rated Flow (l/min) | 160 |
Rated Pressure (mpa) | 1.3 | |
Driving Power (kw) | 5.15 | |
Weight (kg) | 190 | |
Dimension (mm) | 1110*725*965 | |
Vehicle Chassis | Model | Jianghuai Light Truck |
Drive Type | 4*2 | |
Dimension | 6*2*2.25 m |
Any changes of the parameters mentioned above can be made without prior notice.
The truck mounted drilling rig is a multi-function hydraulic spindle rotary drilling rig.
The drilling rig and mud pump are installed on the truck chassis in a reasonable and compact layout.
The drilling rig is equipped with BW160 or BW250 mud pump. The mud pump has big high pressure and big flow, which ensures the drill depth and hole diameter.
The drilling rig has hydraulic control drill mast, which is easy to operate and ensures the safety and efficiency.
