XYX-3 Diesel Hydraulic Spindle Borehole Core Drilling Machine Water Well Drilling Rig
- Qingdao
- T/T L/C PayPal Other Cash
- 10 days
You May Like
-
XYC-200A Vehicle Mounted Full Hydraulic Control Rotary Drilling Rig For Water Well & Soil Survey
-
XYC-200A Tricycle Mounted Hydraulic Rotating Geological Exploration & Water Well Drilling Rig
-
FY200 Crawler Percussive Rotating Rock Borehole Drilling Rig For Water Well 200 Meters
-
200 Meters Crawler Pneumatic DTH Hammer Rock Borehole Drilling Rig For Water Well
-
Crawler Mud Air Drilling Rig Dual Usage Mud Rotary Drilling Rig And Air Percussive Drilling Rig For Water Well & Exploration
-
Mud Air Drilling Rig Rotary Rock Core And Impact Rock Borehole Drilling Rig For Water Well And Soil Survey
Product Details
| Brand Name | MJIA | Place of Origin | China | |
| Model Number | XYX-3 | Type | Core Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | One Year | Weight | 5 T | |
| Dimension(L*W*H) | 6*2*2.25 m | Power Type | Diesel | |
| Voltage | 380 V | Usage | Water Well | |
| Condition | New | Power(W) | 39 KW For The Drilling Rig |
Product Description

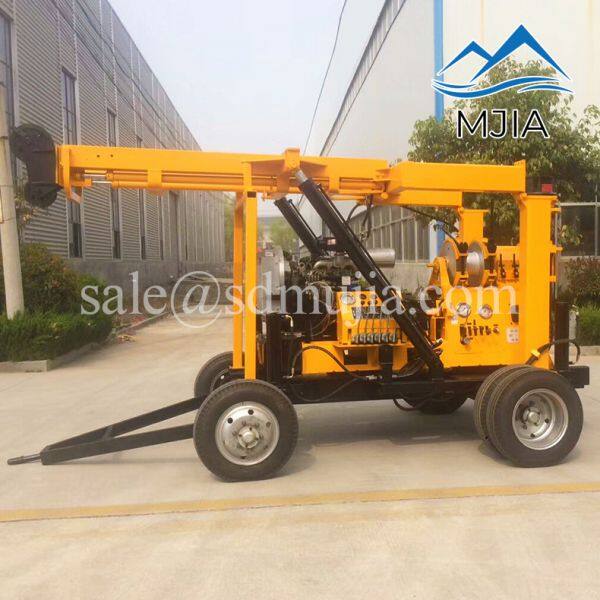

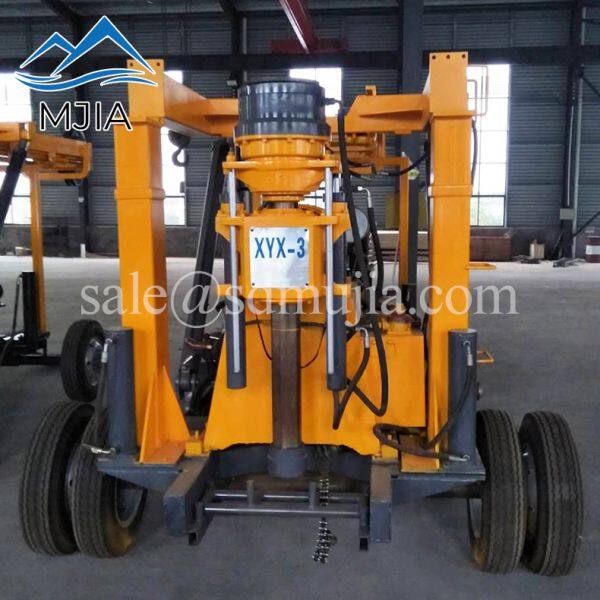

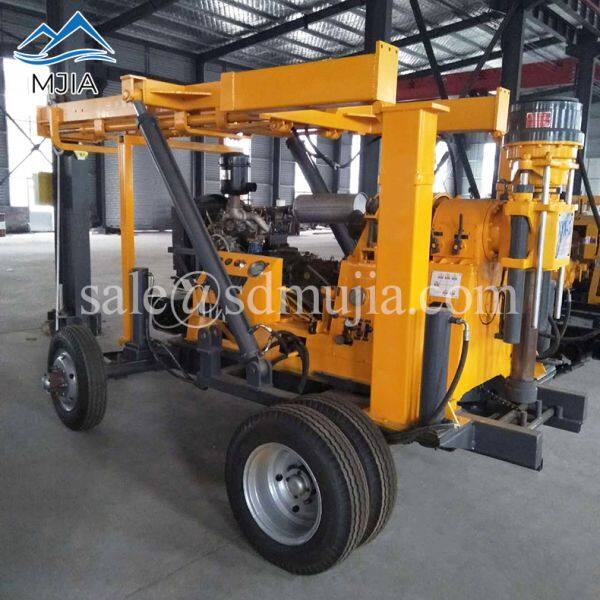

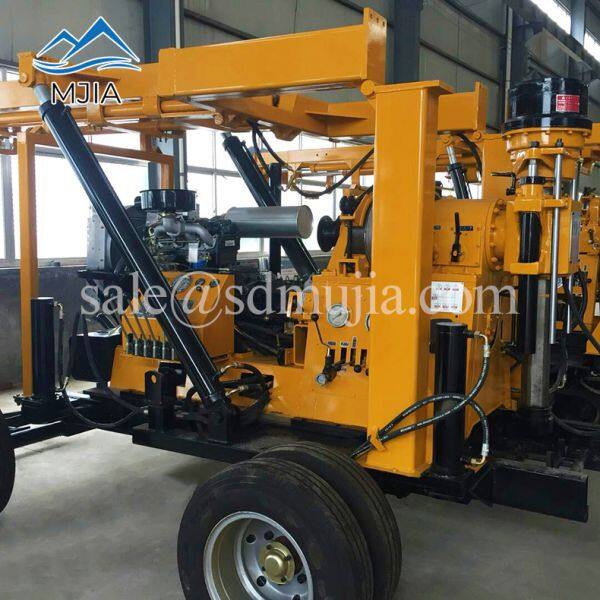

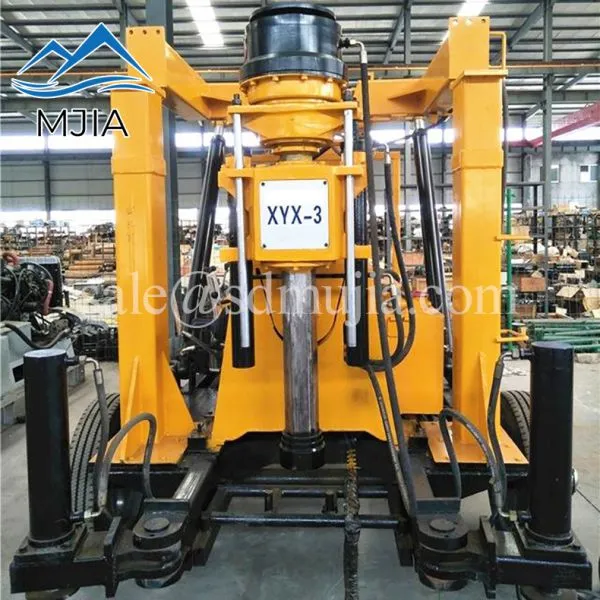

XYX-3 wheeled hydraulic water well drilling rig
1. Applications of XYX-3 wheeled hydraulic water well drilling rig
l Civil water well
l Geological exploration
l Soil survey
l Road and building exploration
l Mind exploration on the ground
l Blast hole
l Borehole
l Small foundation work
2. Features of XYX-3 wheeled hydraulic water well drilling rig
l The rig is equipped with truck transmission, which has 10 forward gears and 2 reverse gear. The transmission ensures enough reasonable speed range.
l The rig is configured with hydraulic chuck, which is more stable and reliable.
l The rig’s spindle inner diameter is 96mm and can output big torque.
l The winch can lift Max. 3000 KG lifting force with single line
l The rig has electric start and two hydraulic slide tracks
l The drilling speed and hydraulic feeding system are easy to control to meet the requirements of different soil conditions.
l The rig has reasonable structure and is easy to disassemble
l The rig has the pressure meter so the operator can monitor the hole situation
l The rig is configured with the wheeled walking system, which is easy for the machine to move
l The rig has the full hydraulic control drill mast. The drill mast can be put up automatically by hydraulic cylinders, which increases the labor safety and working efficiency, and ultimately reduces the costs.
1. Specifications of XYX-3 wheeled hydraulic water well drilling rig
XYX-3 Wheeled Hydraulic Drilling Rig | ||
Drill Depth (m) | 100/ 250 / 300/ 600 | |
End Hole Diameter (mm) | 300 / 200 /150 / 75 | |
Drill Rod Diameter(mm) | 60 | |
Matching Power | Diesel Engine | 39 KW |
Electric Motor | 22 KW | |
Weight Without Power (kg) | 3600 | |
Dimension (m) | 2.9*2.56*3.3 | |
Drilling Angle (°) | 90 -75 | |
Spindle | ||
Forward Rotation Speed (r/min) | 30-1050 | |
Reverse Rotation Speed (r/min) | 29-137 | |
Feed Stroke (mm) | 560 | |
Spindle Inner Diameter (mm) | 96 | |
Spindle Lifting Capacity (kn) | 60 | |
Main Winch (Hydraulic Drive) | ||
Pull Speed (m/min) | 0.3 - 1.9 | |
Wire Rope Diameter (mm) | 14 | |
Drum Diameter (mm) | 300 | |
Roll Capacity (m) | 30 | |
Maximum lifting capacity of single rope | 40kn | |
Secondary Winch (Hydraulic Drive) | ||
Drum Diameter (mm) | 140 | |
Wire Rope Diameter (mm) | 6 | |
Roll Capacity (m) | 450 | |
Mud Pump (Optional) | ||
Mud Pump | BW-250 | |
Flow (l/min) | 250 | |
Working Pressure (mpa) | 7 | |
Inlet Hose Diameter (mm) | 75 | |
Outlet Hose Diameter (mm) | 50 | |
Gear Pump | ||
Dual Gear Oil Pump | CBF-F63/25 | |
Front Displacement & Pressure | 63 l/min 20 mpa | |
Rear Displacement & Pressure | 25 l/min 20 mpa | |
Chassis | ||
Bearing Capacity (ton) | 3.5 | |
Dimension (m) | 2.6 *2*0.6 | |
Any changes of the parameters mentioned above can be made without prior notice.
