4-20mA Micro Smart Air Differential Pressure Transmitter

4-20mA Micro Smart Air Differential Pressure Transmitter thumbnail-1
4-20mA Micro Smart Air Differential Pressure Transmitter photo-1
US$ 54 - 78 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK-110
Contact Supplier Request Quote Chat Now
Xi`an Shelok Instrument Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shelok
Place of Origin China
Model Number SLK-110
Product Description
4-20mA micro differential pressure transmitter

SLK-110 differential pressure transmitter detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. differential pressure transmitter ranges from 0~±50Pa to 0~±10000Pa. These transmitters boast of their outstanding performance,high quality and economical pricing.

Specification
Specification of micro differential pressure transmitter
Medium
Dry gas
Material
Aluminium alloy
Measuring range
-10~0~10KPa
Maximum static pressure
70KPa
Overload capativity
200%FS
Pressure type
Differential pressure
Output signal
4-20mA,0~5V,0~10V,1~5V,RS485
Power supply
9~36VDC(15~36VDC for 0~10VDC)
Accuracy
0.25%FS,0.5%FS
Anti-seismic property
25g(20~2000Hz)
Respond frequency
≤500Hz
Stablility performance
±0.01%FS/year
Temperature drift
±0.01%FS/℃
Ingress protection
IP54
Maximum power
Current:≤0.02Us(w);voltage:≤0.008Us(w);digital:≤0.015Us(w);Us=voltage
Load characteristic
Current load≤ Ω(Us-7)/(Us=voltage);Current load≥100KΩ

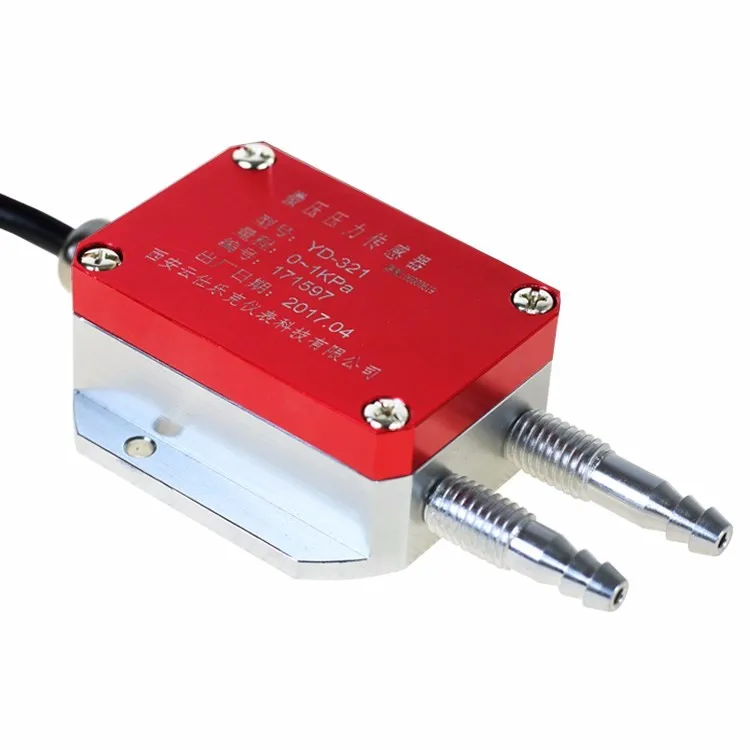

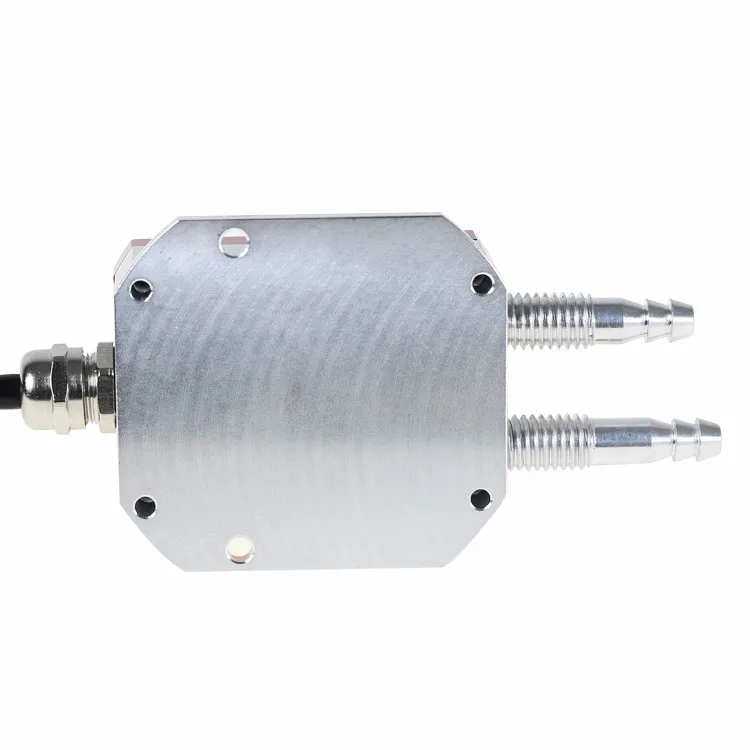

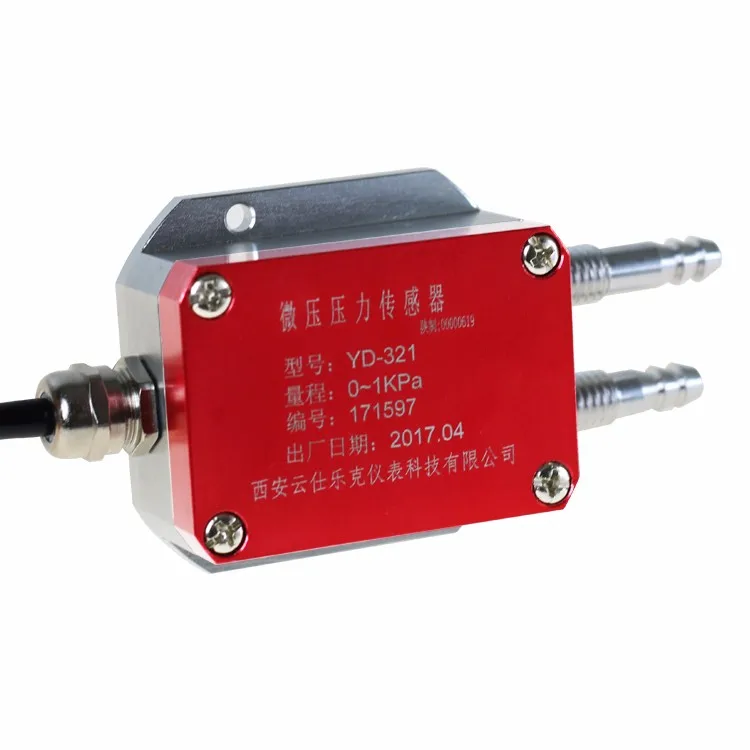

Detailed Images

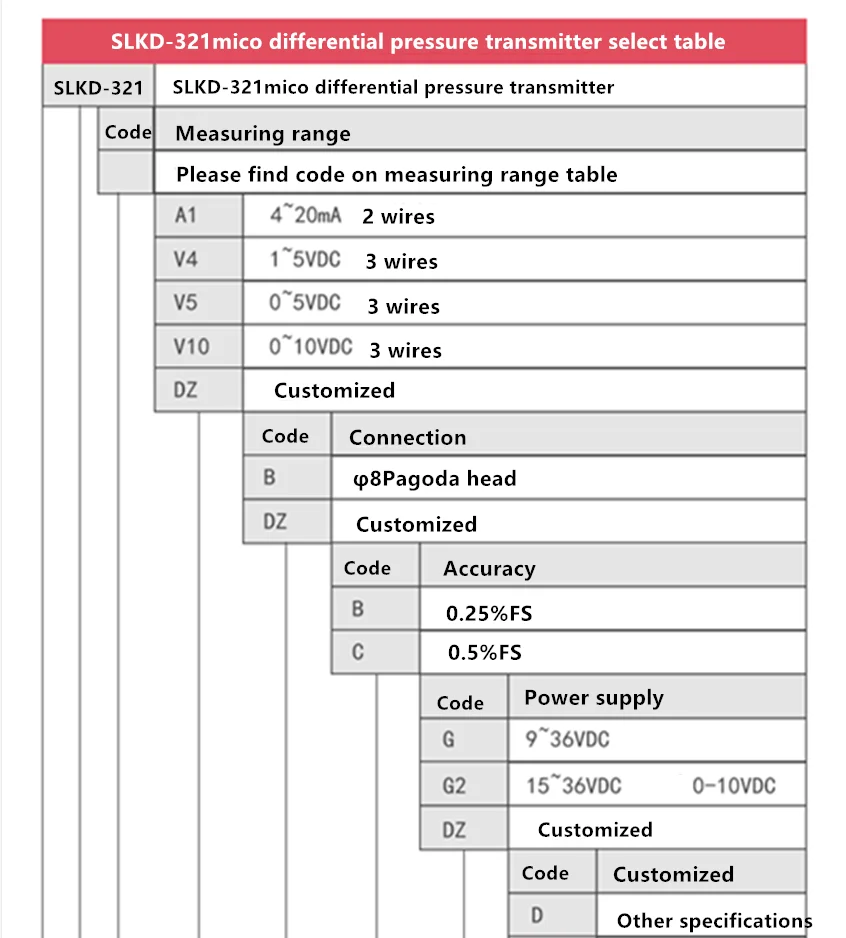

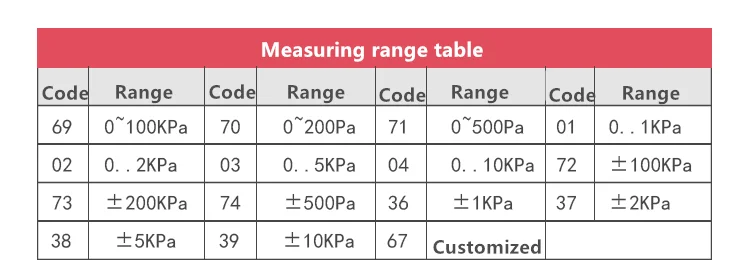

Selection table

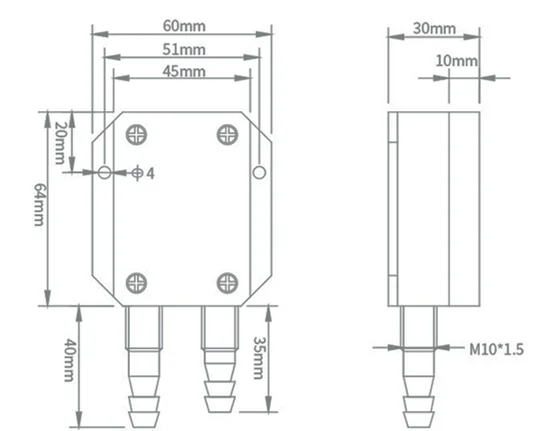

Dimension


Product Tags: differential pressure transmitter , air pressure transmitter , 4-20mA pressure transmitter
