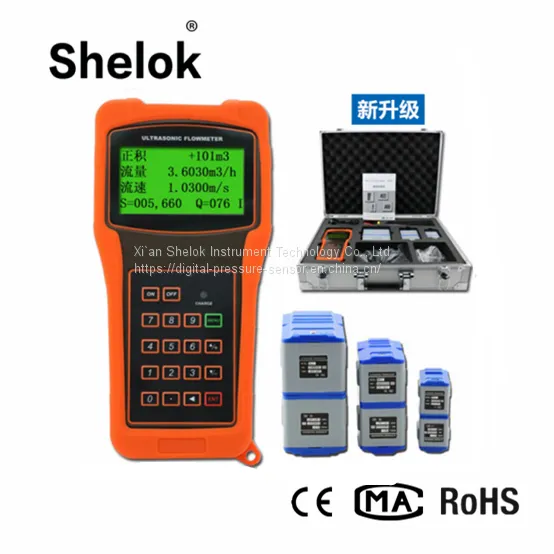

The ultrasonic chemical flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe.The ultrasonic chemical flow meter is built-in rechargeable battery and data-logger with non-contacting measuring.
|
·4 Line large-screen LCD ·High accuracy measuring ·Wide measuring range ·Small and light ·RS-232 |
|
|
·4 Line large-screen LCD ·High accuracy measuring ·Wide measuring range ·Small and light ·RS-232 |
|
Repeatability |
Better than 0.2% |
Accuracy |
±1% of reading at rates>0.2 mps |
Linearity |
0.5% |
Velocity |
±32 m/s |
Totalizer |
7-digit totals for net, positive and negative flow respectively |
Liquid Types |
Virtually all liquids |
Security |
Setup values Modification Lockout. Access code needs unlocking |
| Response Time | 0-999 seconds, user-configurable |
Signal output |
Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |
Transducer Cord Length |
Standard 2x10 meters, optional 2x 500 meters |
Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. |
Case Size |
100x66x20mm |
Data Logger |
Built-in data logger can store over 2000 lines of data Housing Material ABS |
Handset Weight |
514g (1.2 lbs) with batteries |
