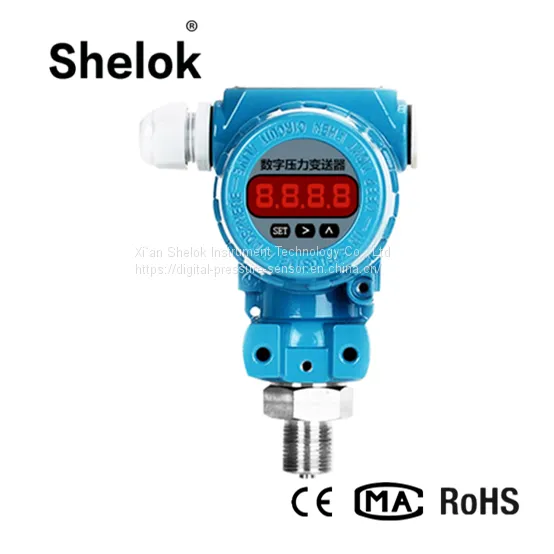

2088 Sanitary Hydraulic Gas Liquid Pressure Transmitter

2088 Sanitary Hydraulic Gas Liquid Pressure Transmitter thumbnail-1
2088 Sanitary Hydraulic Gas Liquid Pressure Transmitter photo-1
US$ 220 - 800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK-2088
Contact Supplier Request Quote Chat Now
Xi`an Shelok Instrument Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shelok
Place of Origin China
Model Number SLK-2088

1.Description

2088 hydraulic oil explosion proof sanitary pressure transmitter uses piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.



2.Feature

Wide range, cast aluminium & explosion-proof housing,

various pressure port

Various output signal, scene adjustable

Multiple protect, strong anti-interference capability.



3.Application

Can measure the pressure of the noncorrosive gases & liquids.

Special use in harsh environment conditions.



4.Specification

Measurement Range:-0.1….0~0.01...~100MPa

Proof pressure:≤1.5X rated pressure or 110MPa which ever is less

Pressure type:Gauge, absolute ,sealed gauge

Accuracy:±0.25%, ±0.5%

Long term stability:±0.2%F.S/year

OperatingTemperature:-20℃~80℃

Storage Temperature:-40℃~120℃

Power supply:15~30VDC

Output signal:4~20mA,0~10/20mA,0/1~5VDC

Pressure port:M20×1.5 or customize

Housing material:1Cr18Ni9Ti,stainless steel

Diaphragm material:316L

O-ring:Fluoro rubber

Electrical housing:Cast aluminium alloy(2088housing)

Insulation resistance:100MΩ,100VDC

Protection:IP65

Eexplosion-proof grade: ExiaIICT6




Product Tags: liquid pressure transmitter , sanitary pressure transmitter , hydraulic pressure transmitter
