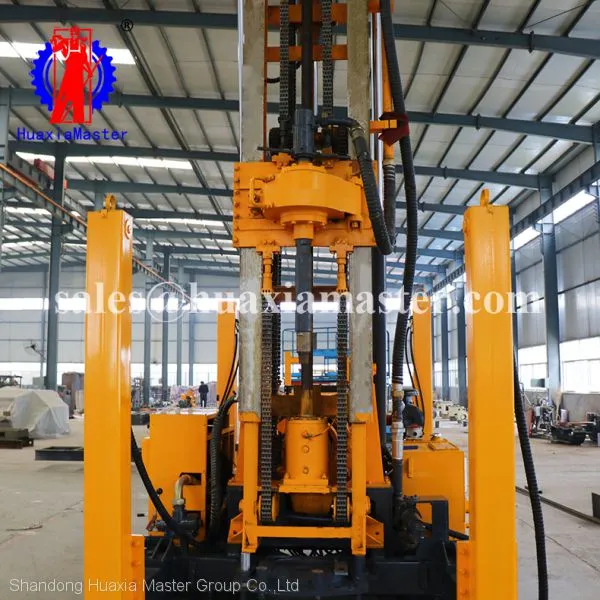

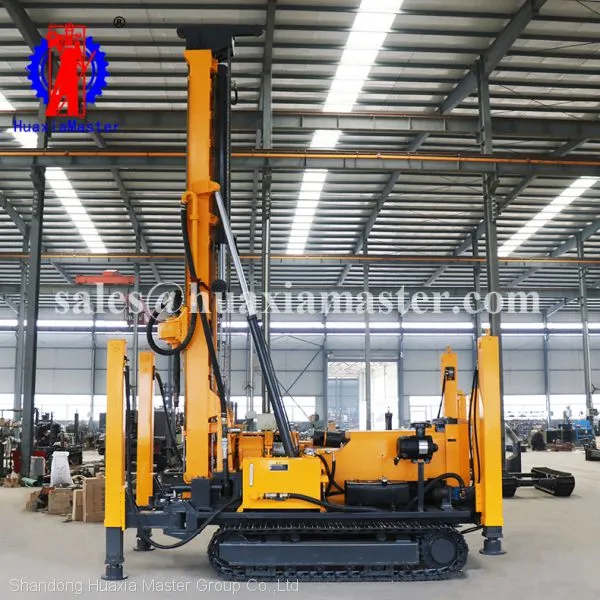

Help CenterFull Hydraulic Air Drilling Rig JDL-400 From Huaxia Master /soil Layer and Bed Rock Water Well Drilling Machine for Sale
Related Products
-
Huaxiamaster Supply Crawler Drilling Rig/multifunction Mud/air Water Well Equipment Borehole Rotary Drilling RigUS$ 25000 - 25200MOQ: 1 Set -
Hot Sale DTH Drilling Rig KQZ-180D/wheeled Water Well Drilling Machine With High Working Efficiency Easy MoveUS$ 4100 - 4300MOQ: 1 Set
-
China Manufacturer KQZ-200D Water Well Drilling Rig/pneumatic Borhole Driilling Machine for Sale Quality GuaranteeUS$ 4800 - 5000MOQ: 1 Set
-
High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for SaleUS$ 16500 - 17000MOQ: 1 Set
-
Excellent Direct Sale Multifunctional Crawler Pneumatic Water Well Drilling Rig/large Diameter Civil Well Machine in StockUS$ 25200 - 26000MOQ: 1 Set

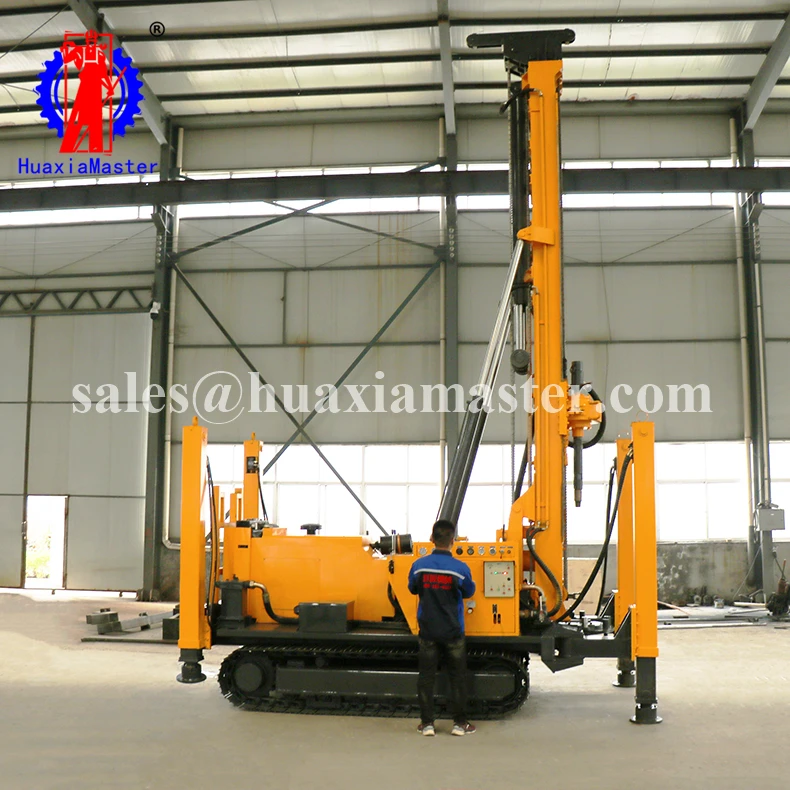

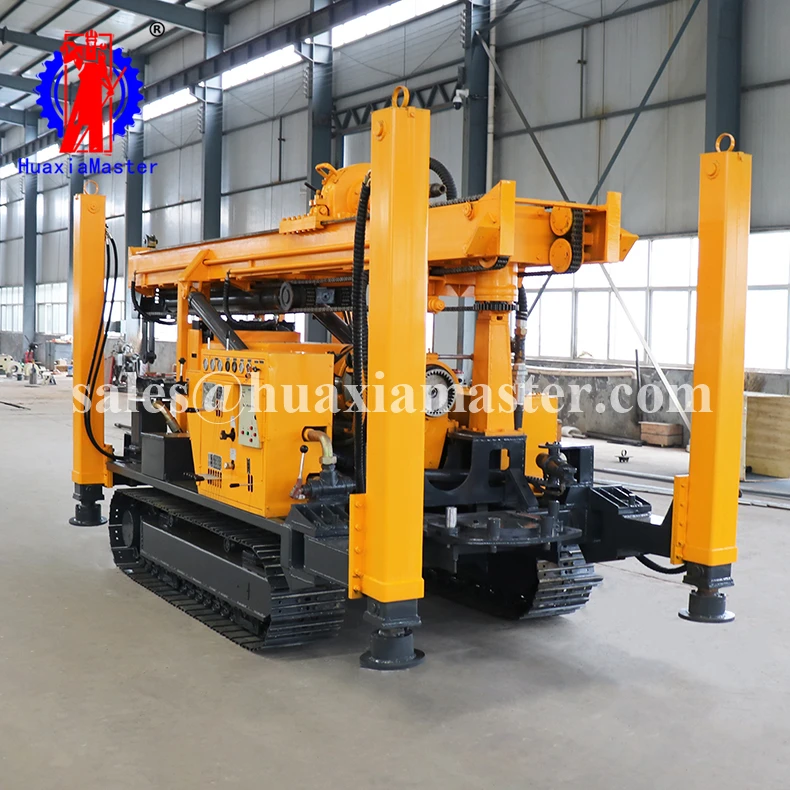

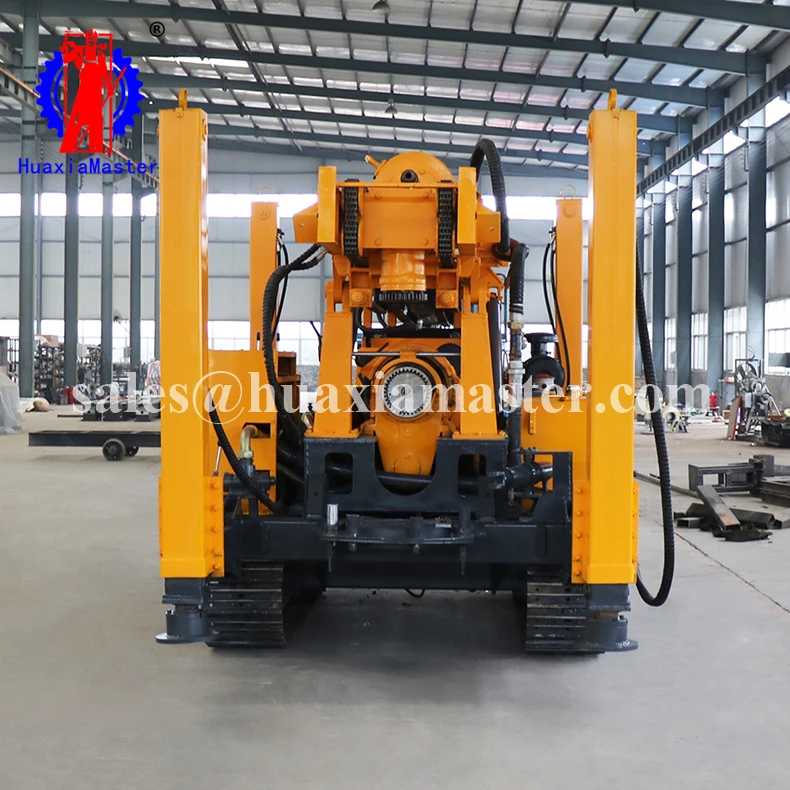

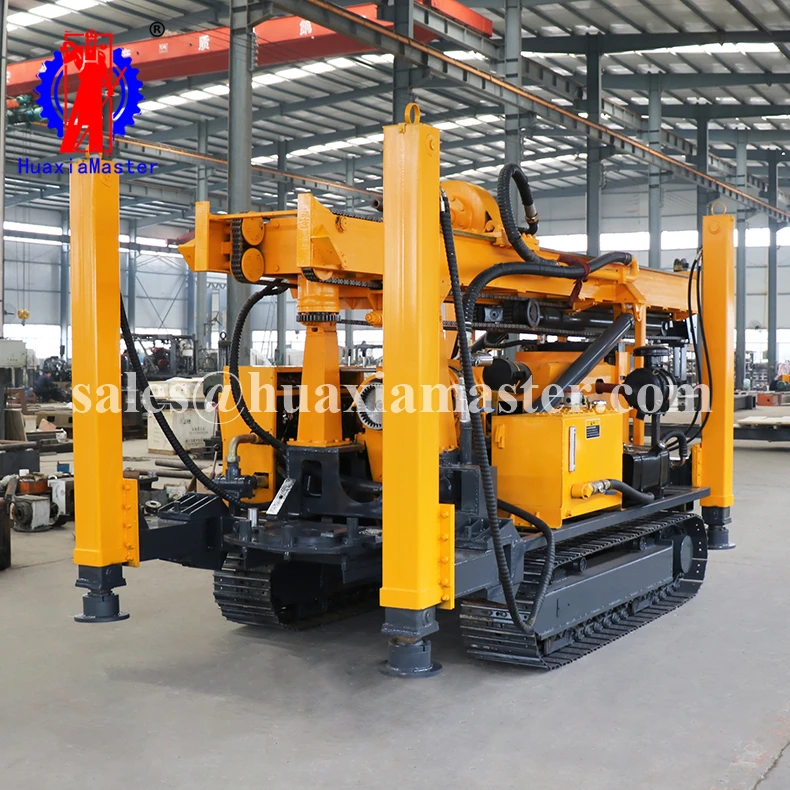

JDL-400 Mud/Air Drilling Rig
1. Introduction of JDL-400 mud/air drilling rig
JDL-400 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.
2. Features of JDL-400 mud/air drilling rig
· Adopt AMT automatic manual transmission gearbox.

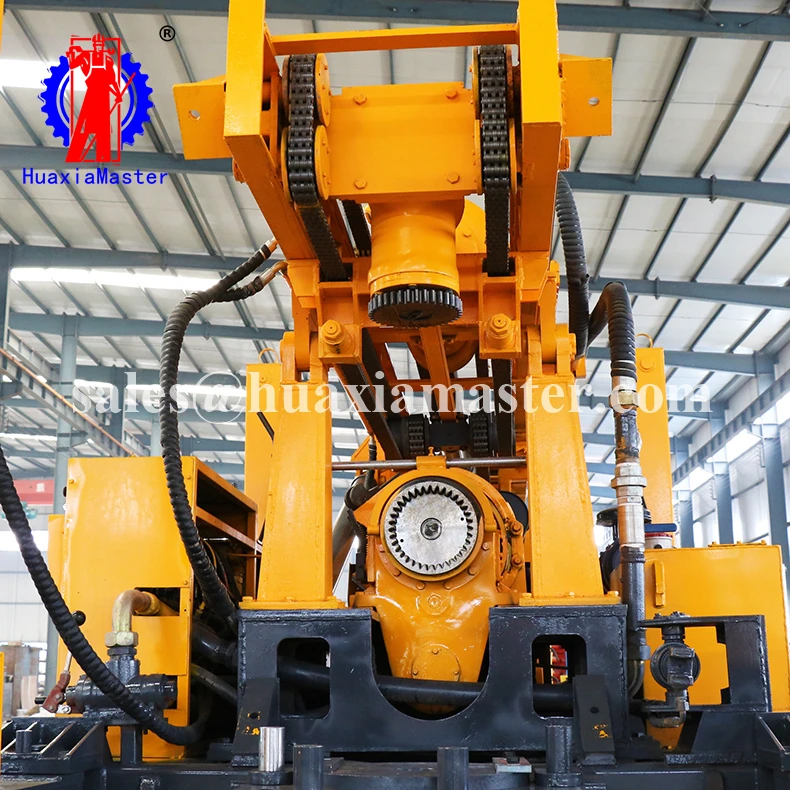

· The rig adopts a long stroke mechanism and a mechanical power head.
· The drilling rig adopts double oil pump for oil supply, and the hydraulic system uses split flow and convergence technology.
· The main shaft of the drilling machine adopts mechanical transmission.
· Some functional interfaces are reserved in the hydraulic control system of the drilling rig.
3. Parameters of JDL-400 mud/air drilling rig
JDL-400 mud/air drilling rig | ||
Working stratum |
Loose soil layer and bed rock(hardness:F6~20) |
|
|
Drilling method |
Mechanical top head rotation, hydraulic feeding, work with mud pump or DTH. |
|
|
Drilling capacity |
Φ42 Mud drilling depth |
1200m |
NQ wireline coring |
800m |
|
Φ75 Air Drilling depth |
400m |
|
Borehole dia. |
≤Φ350 |
|
|
Power |
Diesel engine model |
YN33GBZ |
Rated power |
76kw |
|
Rated speed |
2400rpm |
|
|
Drive head |
Rotary speed |
14~650r/min |
Max. torque |
13400N.m |
|
|
Feeding system |
Lifting capacity |
18T |
Thrusting capacity |
9T |
|
|
Winch capacity |
Hydraulic tool winch(optional) |
1.5T |
Mechanical winch |
3T |
|
|
Drill pipe |
Drill pipe dia. |
Φ76/Φ89/Φ102 |
Drill pipe length |
3000mm |
|
|
Crawler chassis |
Walking speed |
0~2km/h |
Climbing angle |
20° |
|
Dimension |
Transport |
5600*2120*2650mm |
Working |
3800*3250*6700mm |
|
Weight |
8000kg |
|
|
Air compressor |
Air pressure |
10.5~24.6bar |
Air consumption |
16~35m³/min |
|
The above parameters are subject to change without prior notice.
Shandong Master Machinery Group specializes in mud/air drilling rig. The main models are JDL-300 and JDL-400.
]
