High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale

High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale photo-1
High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale photo-2
High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale photo-3
High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale photo-4
High Quality and Low Price Crawler Pneumatic Water Well Drilling Rig FY180/full Automatic Hydraulic Water Well Rig for Sale photo-5
US$ 16500 - 17000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huyaxia master
Place of Origin:
China
Model Number:
FY180
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name huyaxia master
Place of Origin China
Model Number FY180
Type Core Drilling Rig
Certification iso9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 3800kg
Dimension(L*W*H) 3800*1550*2350 mm
Power Type Diesel
Usage Other, well geology exploration
Condition New
Power(W) 65kw


.jpg

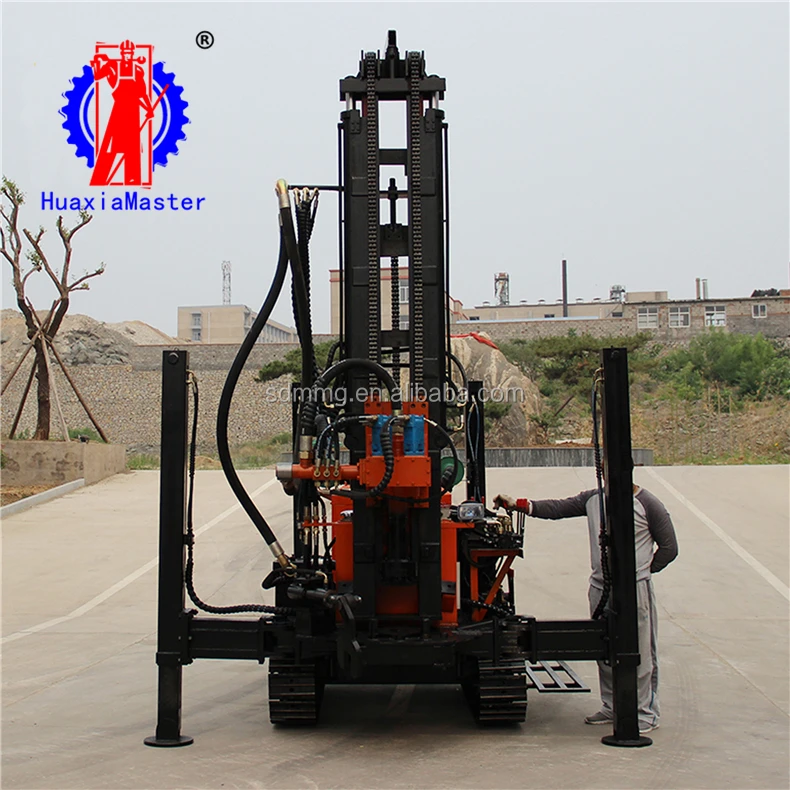

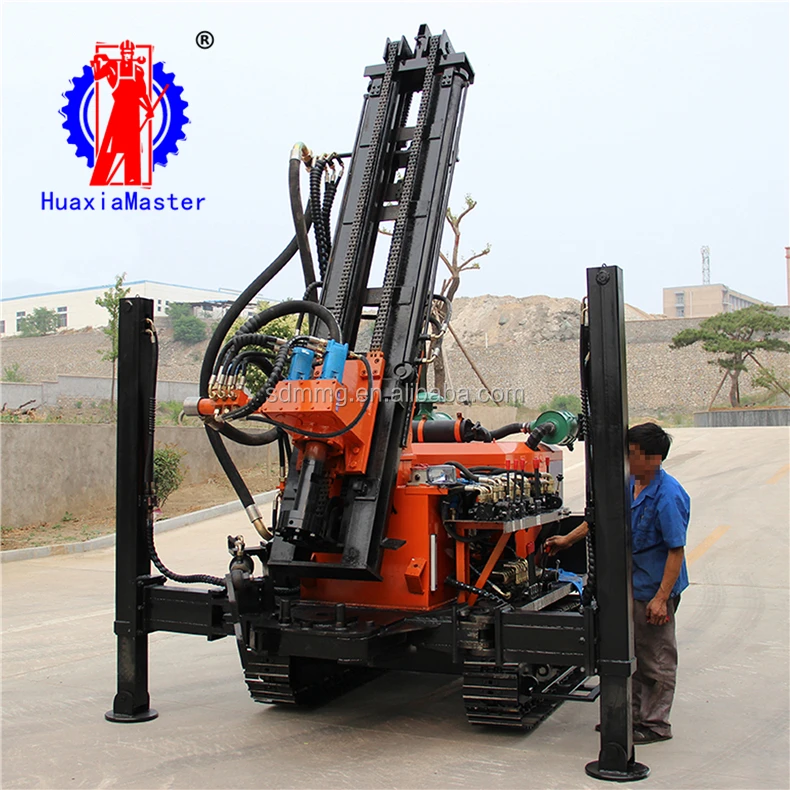

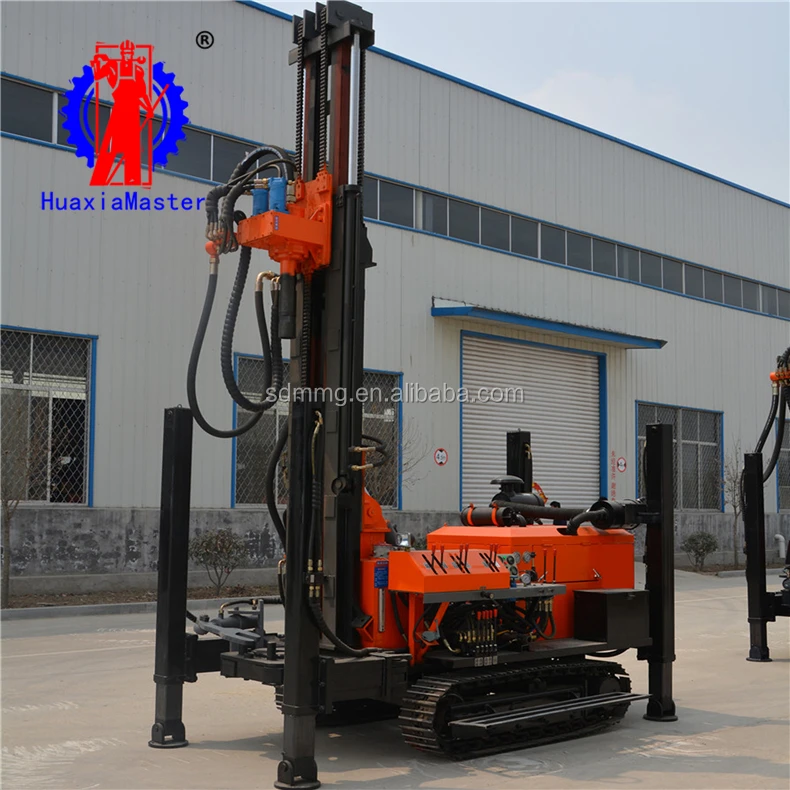

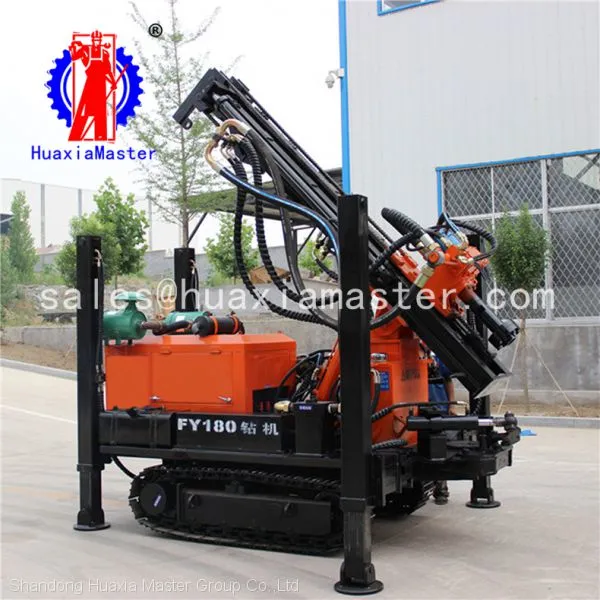

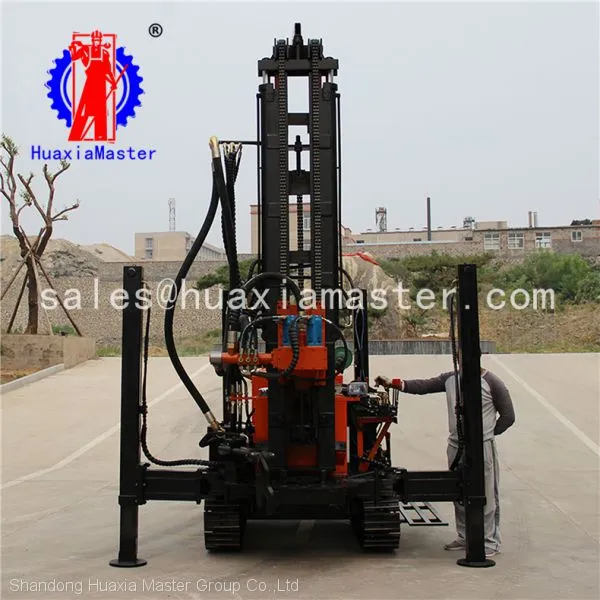

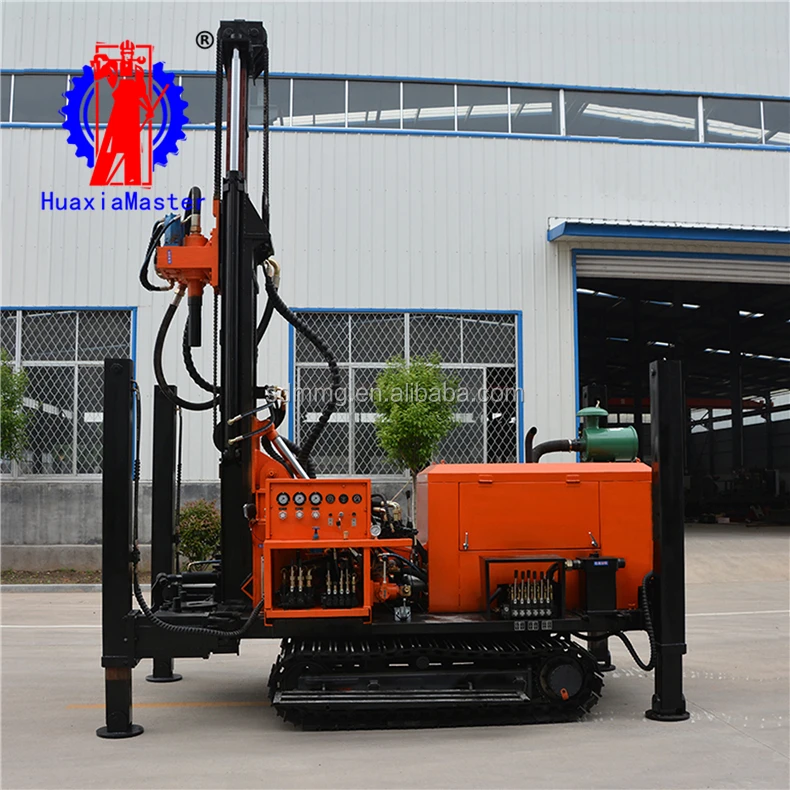

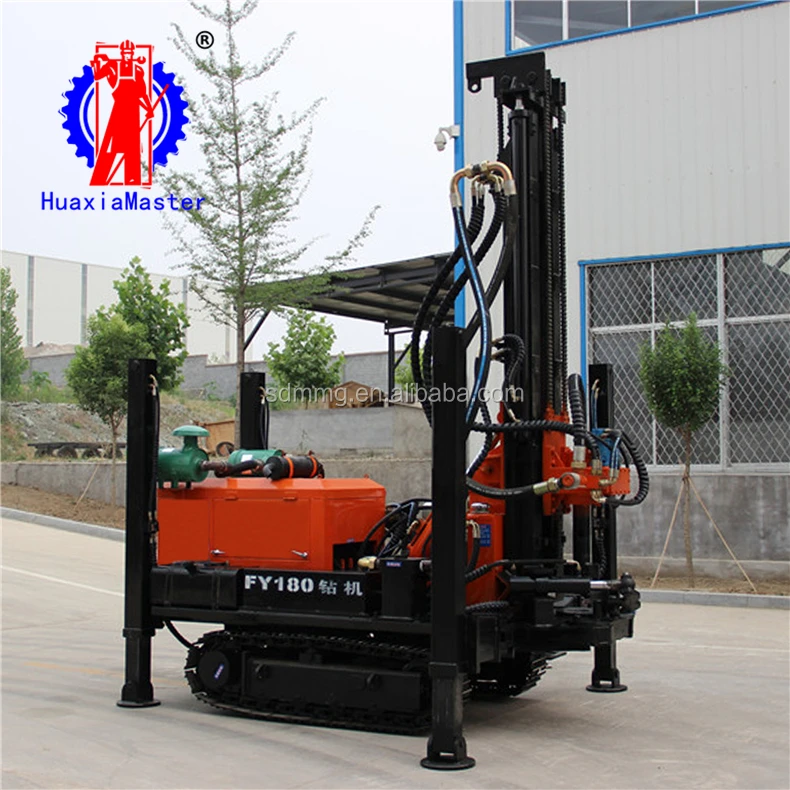

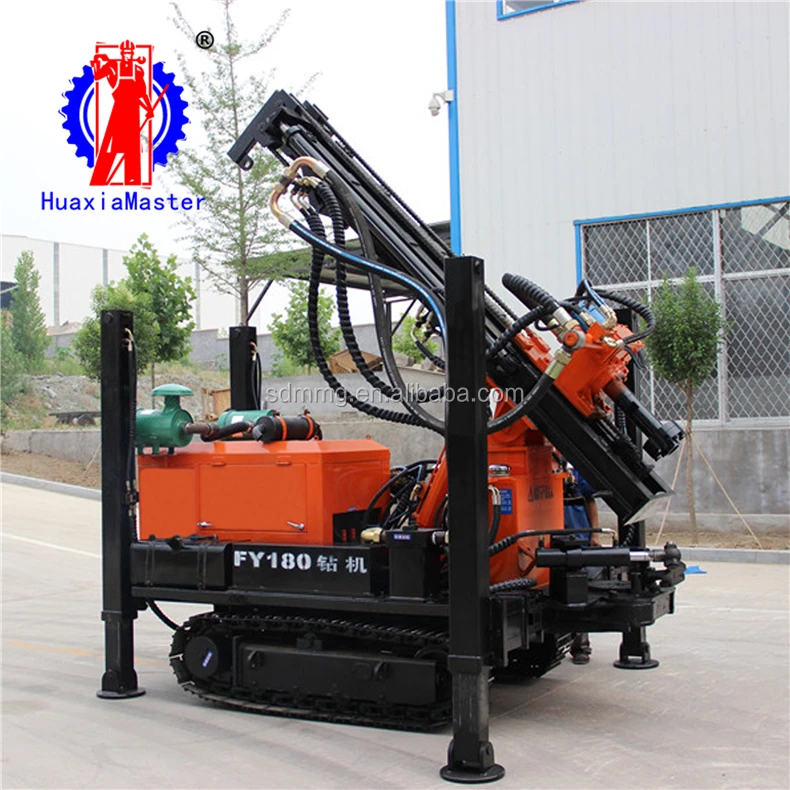

FY180 crawler pneumatic water well drilling rig

1.The applications of FY180 crawler pneumatic water well drilling rig

· civil engineering drilling

· geothermal drilling

· drilling with large diameter and deep drilling footage

· It's fast, flexible and efficient

2.The specifications of FY18crawler pneumatic water well drilling rig

model

FY180



Gross weight

T

3.8

Dimension

mm

3800*1550*2350

Aperture

mm

130-254

Drilling depth

m

180

Feed stroke

mm

3000

Travel speed

km/h

2.5

Grade ability

Max.

30°

Rising height from ground

mm

250

Wind pressure

Mpa

1.7-2.5

Air consumption

/min

15-27

Engine power

kw

42-65

Rotary speed

rpm

48-70

Rotation torque

N.m

4200-5600

.jpg

FY1801FY1802FY1803FY1805FY2002FY1804

.jpg



Product Tags: well drill machine , full automatic hydraulic water well rig , crawler pneumatic water well drilling rig
