Home > Products > pneumatic drilling rig > China Manufacturer FY300 Pneumatic Water Well Drilling Rig /crawler Type Industry Water Well Drill 300m Depth

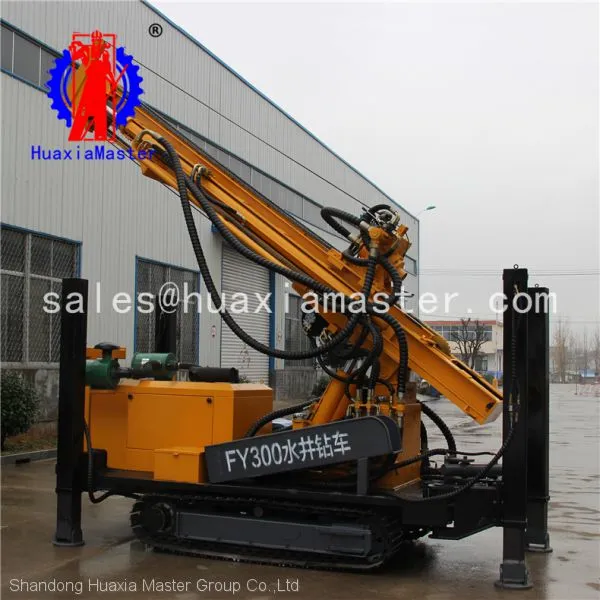

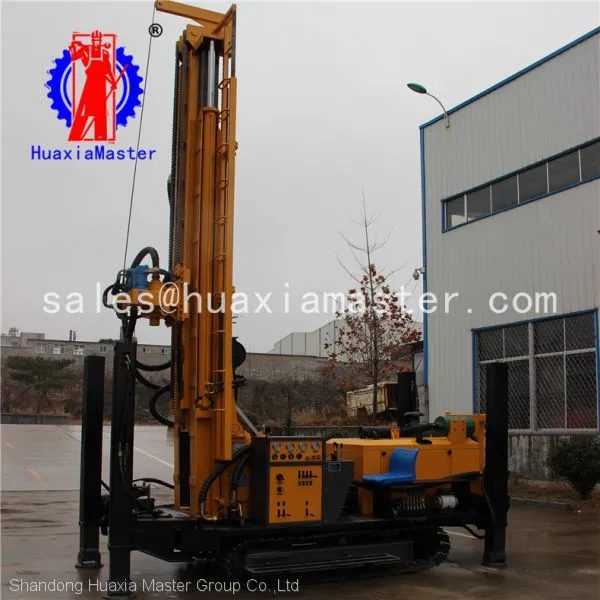

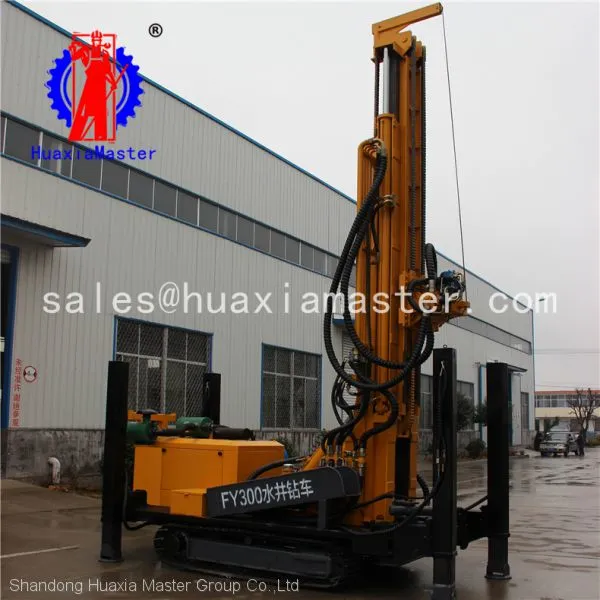

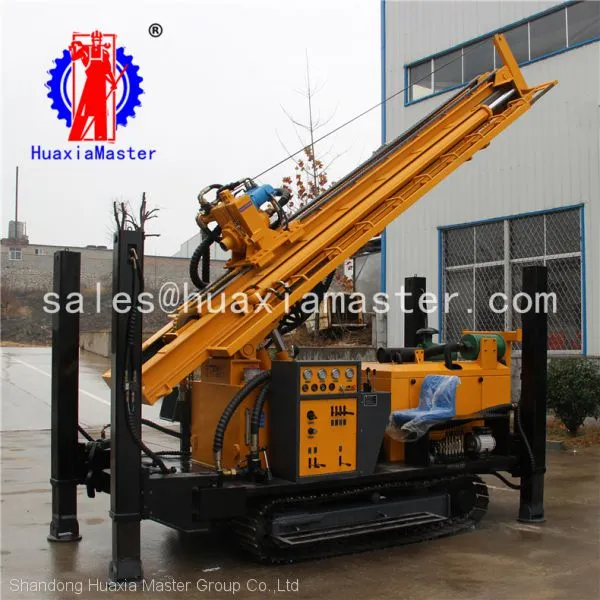

China Manufacturer FY300 Pneumatic Water Well Drilling Rig /crawler Type Industry Water Well Drill 300m Depth
US$ 29500 - 30000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C
You May Like
-
Huaxia Master Pneumatic Water Well Drilling Rig/hydraulic Diesel Power Well Drill Equipment for Price
-
China Made FY600 Crawler Type Rock Core Drilling Rig/pneumatic Water Well Drilling Machine Well Drilling Equipment
-
Huaxia Master Supply SPJ-300 Millstone Water Well Drill Rig/hydrology Geology Exploration Machine for Sale
-
KY-150 Full Hydraulic Coal Mine Tunnel Drilling Rig Horizontal Drilling Machine for Price
-
200m Tunnel Hydraulic Drilling Rig/full Hydraulic Machine for Metal Mine Different Angle Drill Hole for Sale
-
KQZ-70D Gas And Electricity Linkage Dive Drilling Machine Well Drilling Rig for Sale
Product Details
| Brand Name | huaxia master | Place of Origin | China | |
| Model Number | FY300 | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 8800 kg | |
| Dimension(L*W*H) | 4350*1850*2750 mm | Power Type | Diesel | |
| Usage | Water Well | Condition | New | |
| Power(W) | 85kw |
Product Description
FY300 crawler pneumatic water well drilling rig
1. The applications of FY300 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling,
· drilling with large diameter and deep drilling footage
· It’s fast, flexible and efficient
2. The specifications of FY300 crawler pneumatic water well drilling rig
Model | FY300 | |
Gross weight | t | 8.8 |
Dimension | mm | 4350*1850*2750 |
Aperture | mm | 140-325 |
Drilling depth | m | 300 |
Feed stroke | mm | 6000 |
Travel speed
| km/h | 2 |
Grade ability | max. | 30° |
Rising height from ground | mm | 230 |
Wind pressure
| mpa | 1.7-3.3 |
Air consumption
| m³/min | 23 |
Engine power | kw | 85 |
Rotary speed | rpm | 55-115 |
Rotation torque
| n.m | 7200-8500 |
