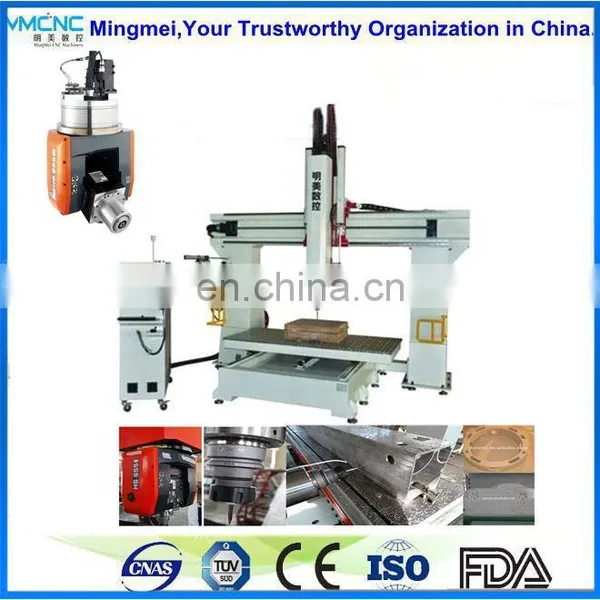

Gantry plastic steel and aluminum milling 5 axis cnc machine with good price

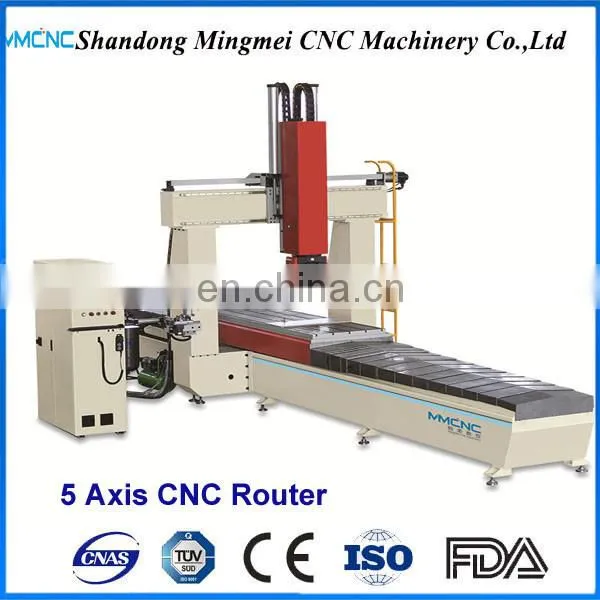

Shandong Mingmei Gantry Type ATC 5 Axis CNC Router Working Center t is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door ,all kinds of long strip hateromorphoism chair back ,bag suitcases hateromorphism cutting ,hateromorphism square tube cutting etc; also can be used for mass production.
MINGMEI focus on the quality of CNC Router and details to creating the value to customers.
1.Let us show you the details images of machine as follow:

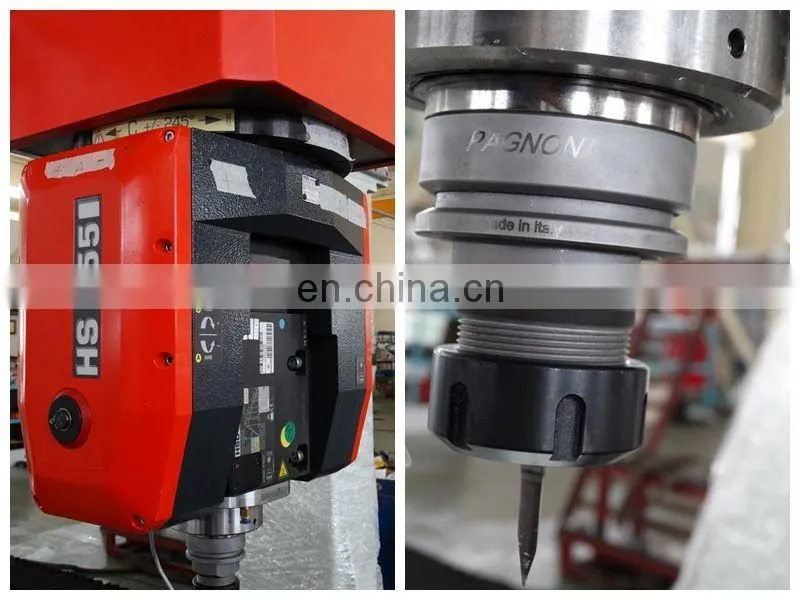

1.1 HSD Main spindle 18KW

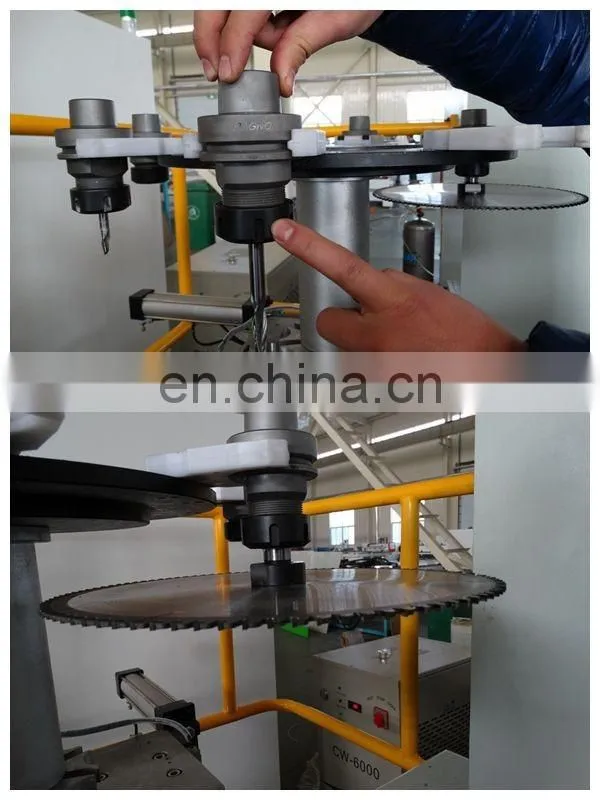

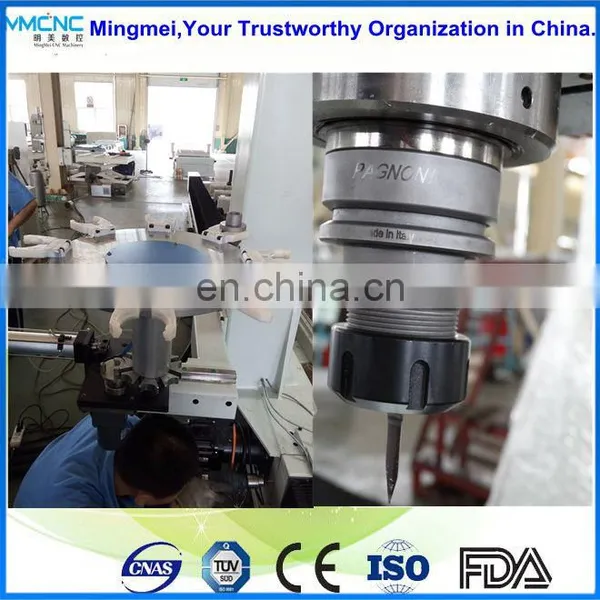

1.2.Disc tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade

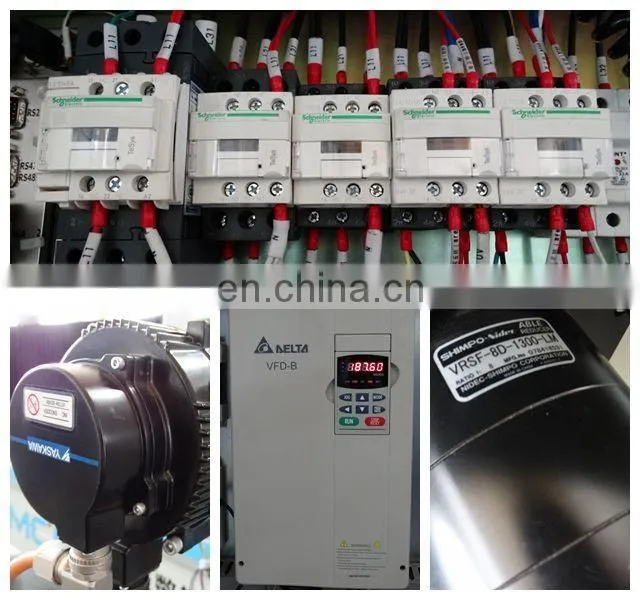

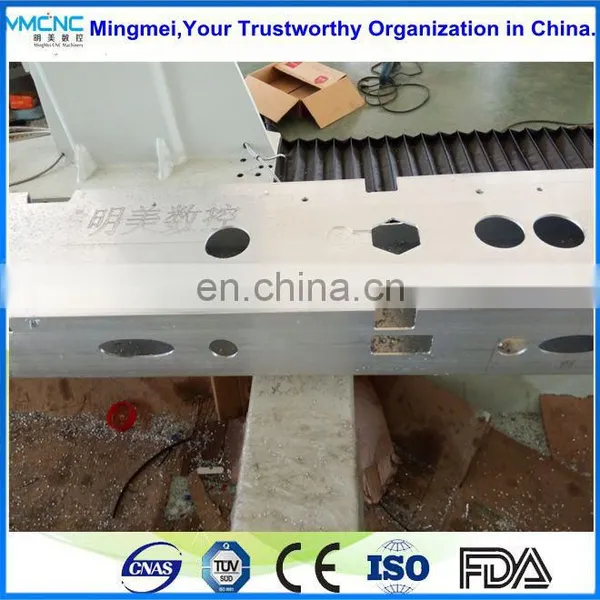

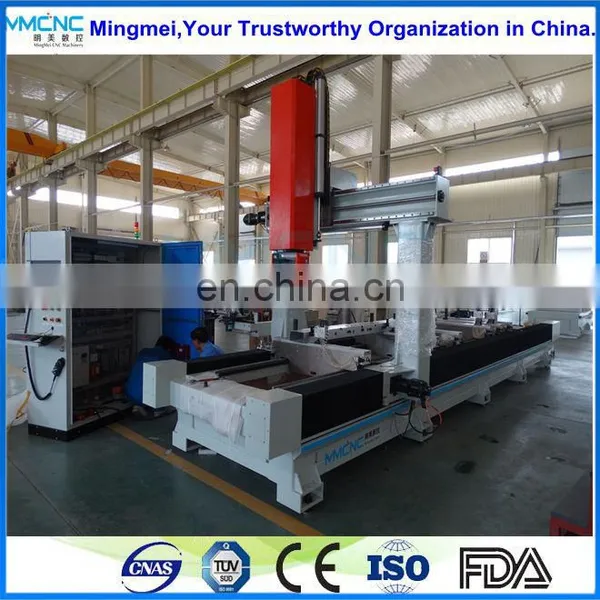

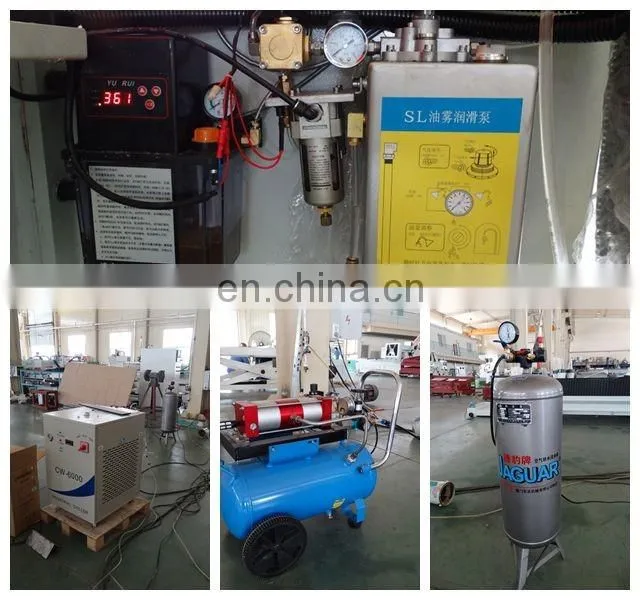

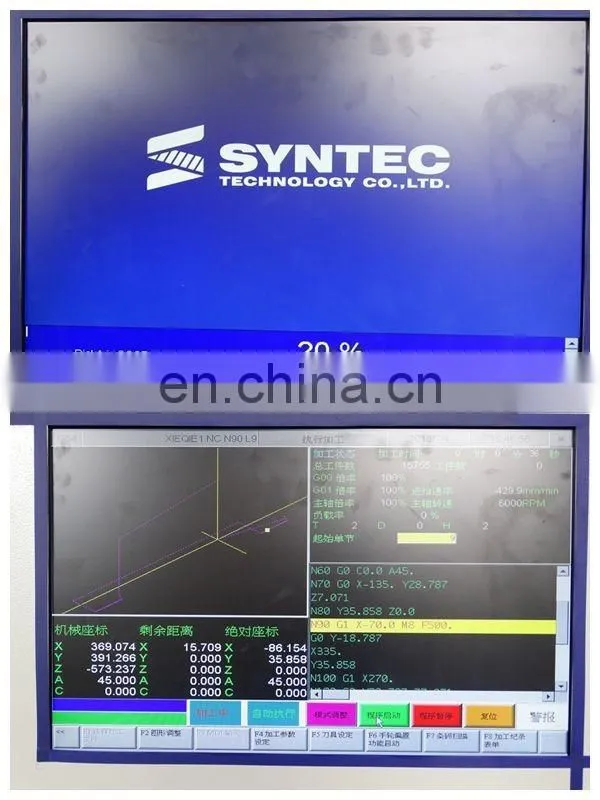

1.3 Automatic oil lubracation system; Mist spray for cooling down bit temperature; Water chiller for cooling down spindle; booster pump and air filter 1.4 Taiwan Syntec 200MA control system 1.5 France scheneider electric parts; Japan 1.3KW Yaskawa servo motors&drivers with SHIMPO reducers; Taiwan Delta VFD-B inverter2. Samples of our 5 axis gantry working center

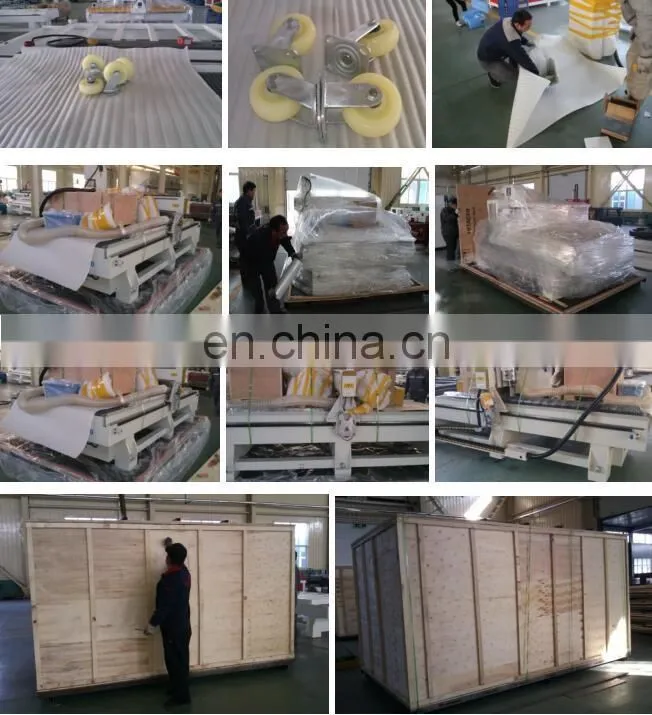

3. Machine Packaging &Shipping
Please add my Mob/whatsapp/wechat 008613789813719 for more details.Thanks.
Features:
1. This machine is specially for cutting,hole drilling,groove milling processing on all kinds of aluminum profile,plastic steel.
2. Adopt Taiwan Syntec five axis synchrozizing cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
3.Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Jpan SHIMPO high performance reducer. Taiwan ball screw, fast speed,low noise,high precision ,long use life etc advantages.
4.It is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door ,all kinds of long strip hateromorphoism chair back ,bag suitcases hateromorphism cutting ,hateromorphism square tube cutting etc; also can be used for mass production.
| SPECIFICATIONS | |
Rmark |
The specification just for your reference, we can bulid cnc router as your specific requirements |
Movement typer |
Movable table |
| Travel ling | C Axis ±240° A Axis ±120° |
| Beam spacing(mm) | 2750 |
| Beam Height(mm) | 1500 |
| Double pendulum head type | HS655 |
| Supplier for Double pendulum head | HSD |
| Output power of spindle | 15KW |
| 12.0KW Italian HSD Spindle speed | 24000r/min |
| Servo system | YASKAVA servo system |
| Inverter | Delta inverter |
| Table size(mm) | 1500*6000 |
| Tool magazine | Rotary tool magazine(8positions) |
| Cutter specifications | HSK.F63.ER40 |
| Control system | Taiwan Syntec 200MA |
| Software version | V7 |
| Programming Softwares | AlphaCAM |
| Minimum training period for operator | 2 weeks |
| Maximum speed |
X Axis 60m/min Y Axis 60m/min Z Axis 30m/min C Axis 2700°/min A Axis 2700°/min |
| Dimension(L*W*H) | 8500*2500*3000mm |
| Weight: | 6000kg |
| Customization | Customized cnc router Available , this specification just for you reference |

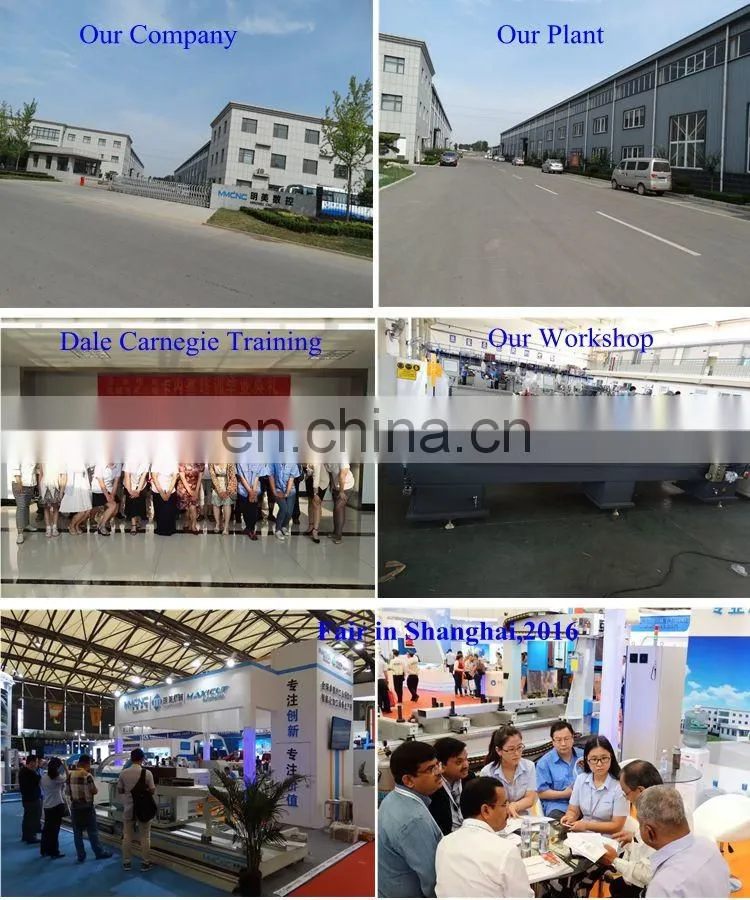

MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,
machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door as well
as curtain wall, such as---
Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC WeldingMachine;
Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got CE,ECM,
EEC authorization .and it has won good market reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement
With us your money in safe,your business in safe!
.
Welcome to visit our factory ! More and more clients choose MINGMEI.
MINGMEI CNC: Supplying the most durable CNC machine is our lifelong promise!
