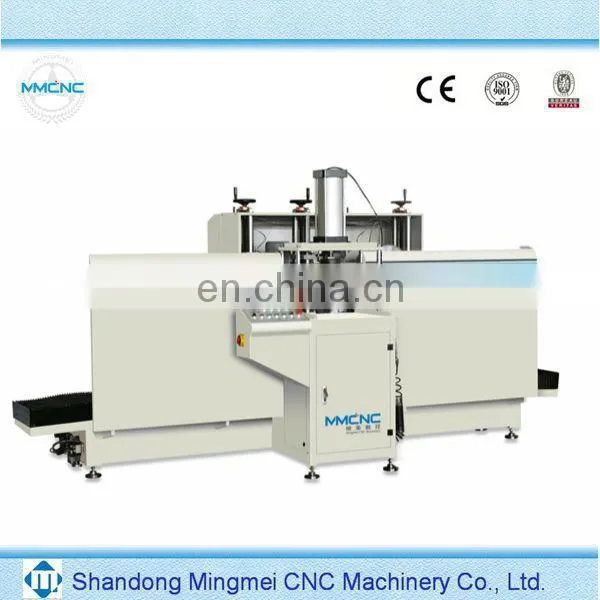

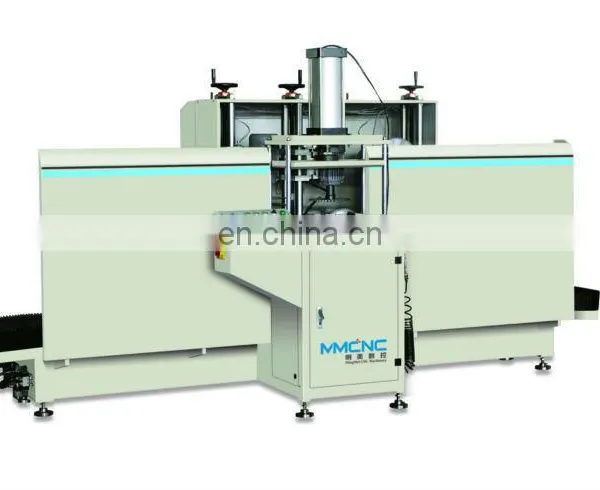

Aluminum Curtain Wall Automatic Tenon MillingMachine
1.HIGHLIGHT in Equipment Feature
1.1 It has features of easy opertion,reliable performance,advanced technique and
convenient maintenance etc. 1.2 This machine have the function of fixing profile and moving blade,can processing
multiple quantity and batches for longer profile
1.3Six sets blades can be combined any size according to customer need,and two sets blades can be adjusted within 180°
1.4One feeding can be realized milling your needed size,at the same time our company can make different thickness special blades according to customer’s request,so it can
satisfy different milling size
1.5Installed the worm gear and worm reducer can realize the feeding stable,so can
make sure the profile processing size.
1.6The use of imported control system, control system adopts the man-machine
interface, high automation degree
1.7The tool adopts hard alloy saw blade, motor power, high cutting speed, high
productivity, high precision machining
2.SUPERSTANDARDTechnical Parameter
Power supply |
380V/50Hz |
Cutting motor power |
13.2kw(six figures) |
Motor rotary speed |
2800r/min |
Operation air pressure |
0.5~0.8MPa |
Motor shaft diameter |
Φ32mm |
Number of milling cutter |
6 pieces Φ 250milling cutter 4pieces 14 saw blade 2 pieces |
Feeding space of workable |
1650mm |
Cutter adjustment Horizontal direction |
80mm |
Longitudinal direction |
280mm |
Contour dimension |
4810 x 1340 x 1965mm |
Weight about |
2000kg |

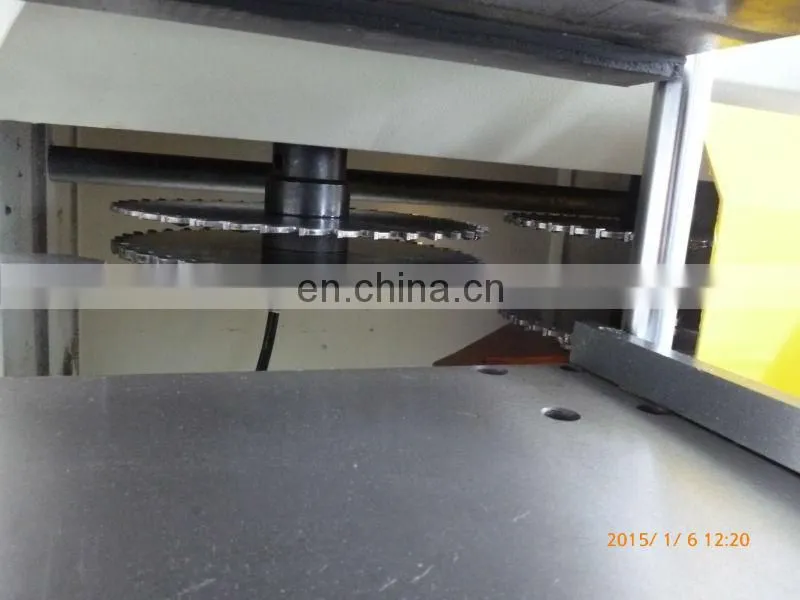

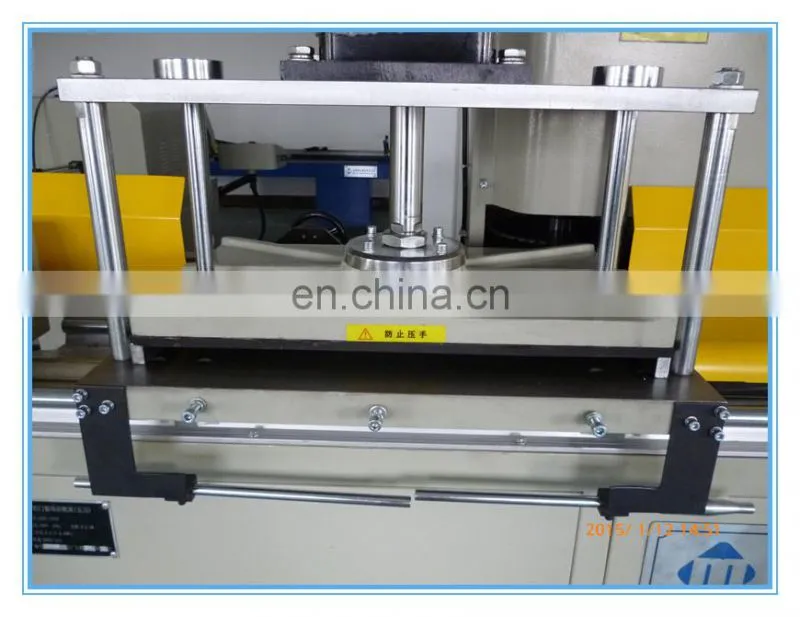

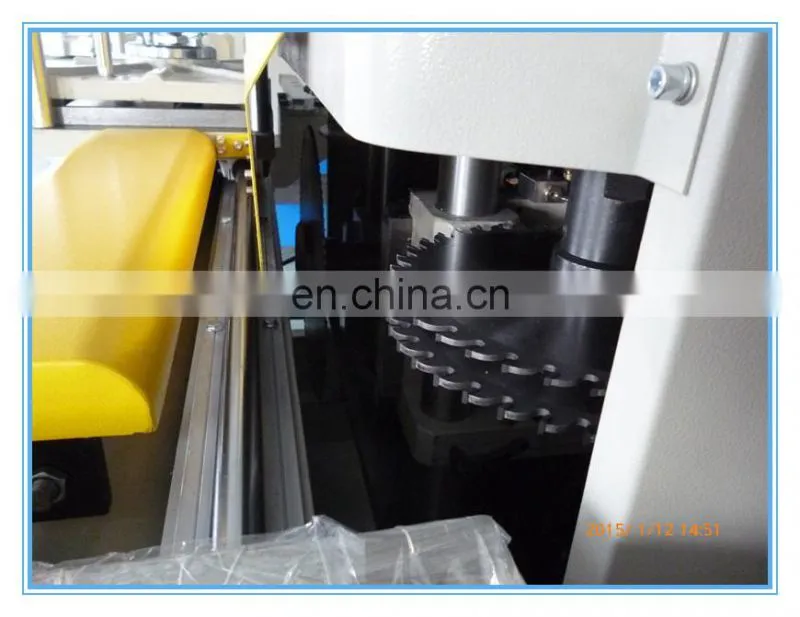

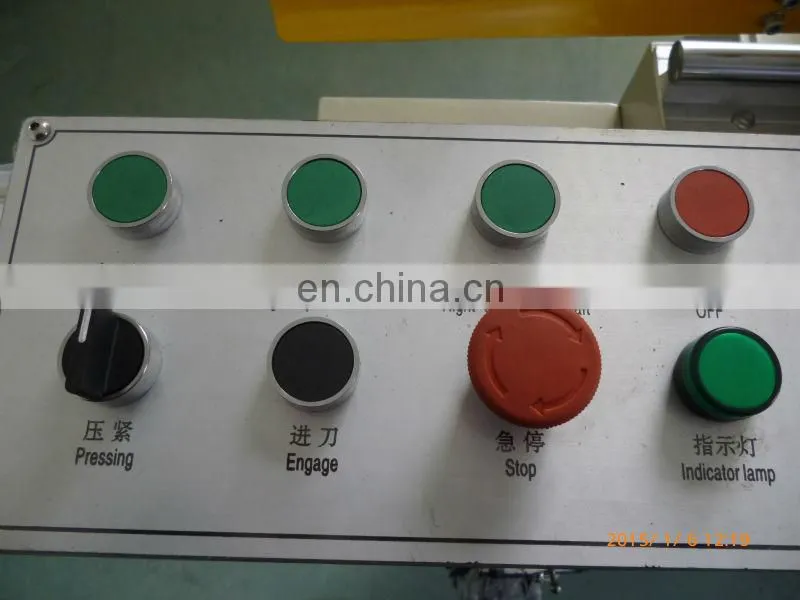

3.Details photo
4.Pattern Appreciation
5.Our factory-Showroom
l 1.One year warranty time, we can repair and replace parts for free in one year.
l 2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
l 3.Life time free maintenance service.
l 4.Free training course at our factory with professional engineers.
l 5.We provide the consumable parts at agent price when you need replacement.
l 6.Engineer available overseas.
