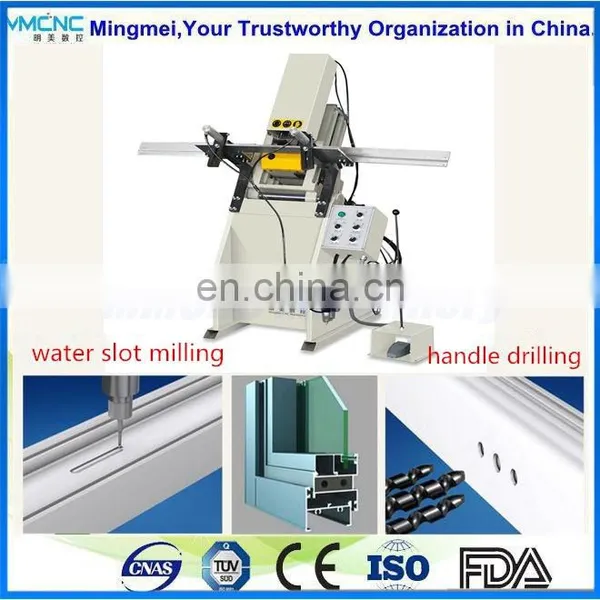

Automatic Cutter Changer PVC / UPVC Window Three Axis Water Slot Milling Machine
1.Main Features for our PVC window water slot milling machine |
|

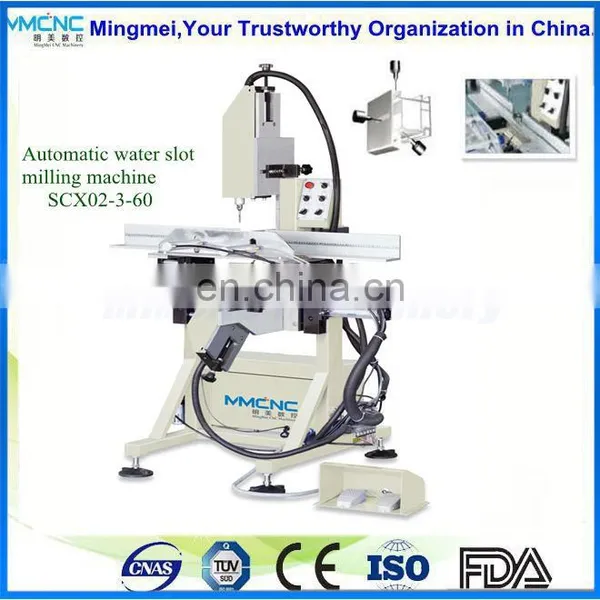

1.1 Model SCX01-1/2/3/4 1.1.1 Used for milling all kinds of water slots and air pressure balance grooves. 1.1.2 The milling head is provided with two,to meet the different requirements of the processing profile. 1.1.3 Claping one time to finish water slot processing 1.1.4 The length of milling water slot within 60mm is adjustable and its usage range is wide. 1.2 Model SCX02-3-60 1.2.1 Milling all kinds of water slots and air pressure balance groove 1.2.2 Full design with high rigidity, processing beautiful water slot, high appearance quality. 1.2.3 Automatic cutter changer on the under head, one time clamp to finish water slots processing. 1.2.4 High efficiency , suitable for mass production 1.2.5 Special feeling system, need no special maintenance, high milling quality 1.2.6 Easily adjustment for the Cutter location to meet different kinds of profiles 1.2.7 Water slot milling length adjustable within 100mm,wide adaptability 1.2.8 Adopt linear bearing motion to ensure the processing precision 1.3 Model SXSZ2-6-3000 1.3.1 Along the guide rail arrangement with two groups of three axis milling machine head, high rigidity, high processing quality 1.2.2 Clamping one time to finish water slot processing. 1.3.3 High efficiency ,suitable for mass production 1.3.4 Special feeding system ,high milling quality |
2.Specifications for Automatic Water Slot Milling Machine |
1 |
Model |
Model SCX01-1/2/3/4 |
Model SCX02-3-60 |
Model SXSZ2-6-3000 |
2 |
Air Presssure |
0.5~0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
3 |
Air Consumption |
30L/min | 30L/min | 90L/min |
4 |
Input Voltage |
220V/50Hz | 220V/50Hz |
220V/50Hz |
5 |
Input Power |
0.38Kw x 2/3/4 | 0.38Kw x 3 |
0.38Kw x 6 |
6 |
Main-shaft revolution |
20~100mm | 20~100mm |
20~100mm |
7 |
Cutter Diameter |
Φ4Φ5mm |
Φ4Φ5mm |
Φ4Φ5mm |
8 |
Slot Depth |
30mm | 30mm |
30mm |
9 |
Slot Length |
30-60mm | 10-100mm |
30-60mm |
10 |
Overall Dimension |
2100x860x1500mm | 1200x1200x1800mm | 4300x860x1500mm |
11 |
Weight |
about 800kg | about 200kg | about 200kg |
3.Detailed Images for your reference |
|

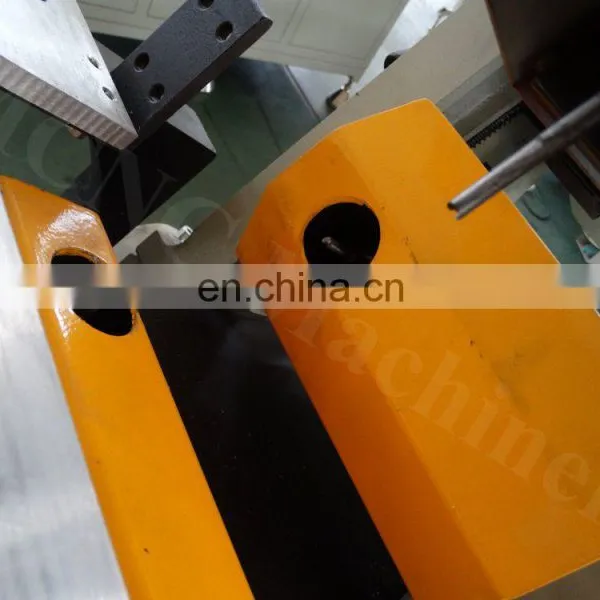

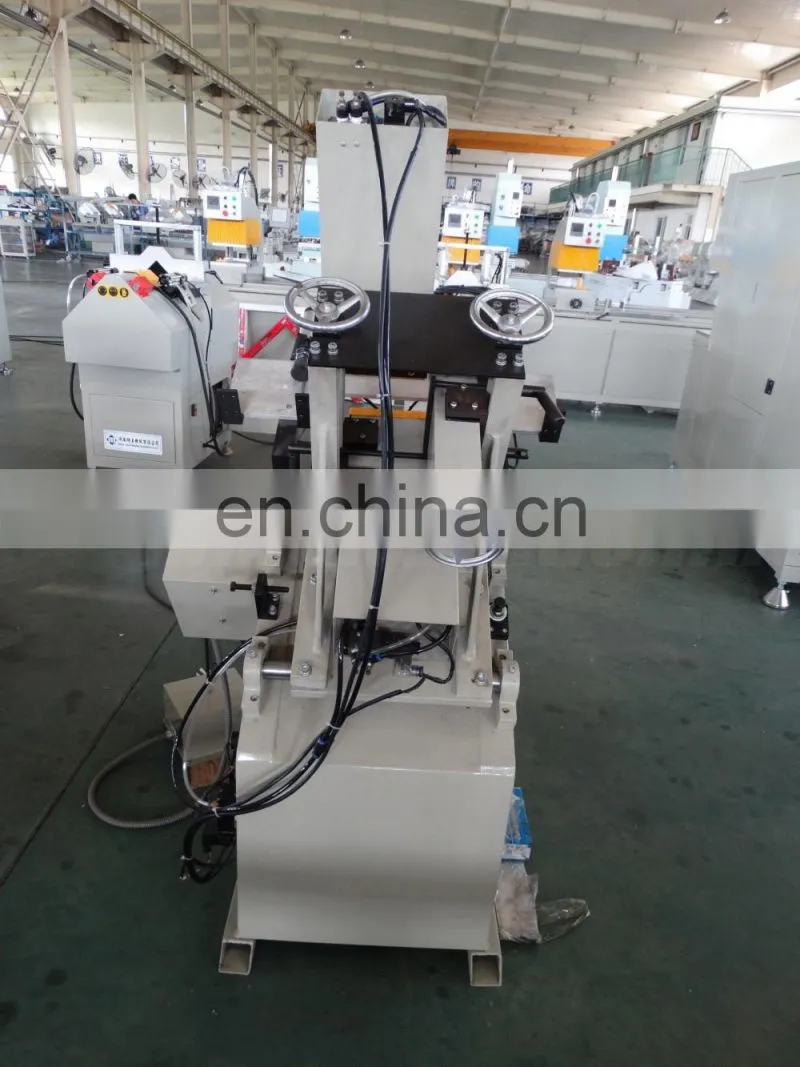

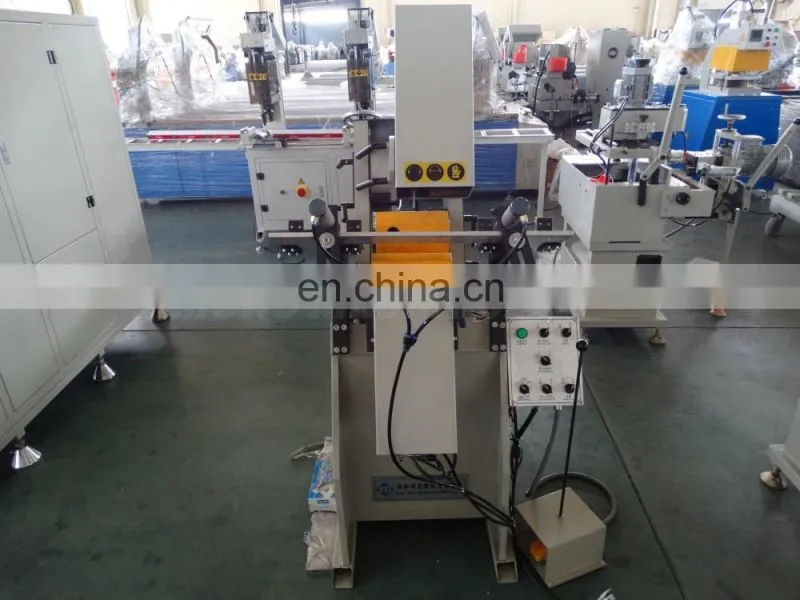

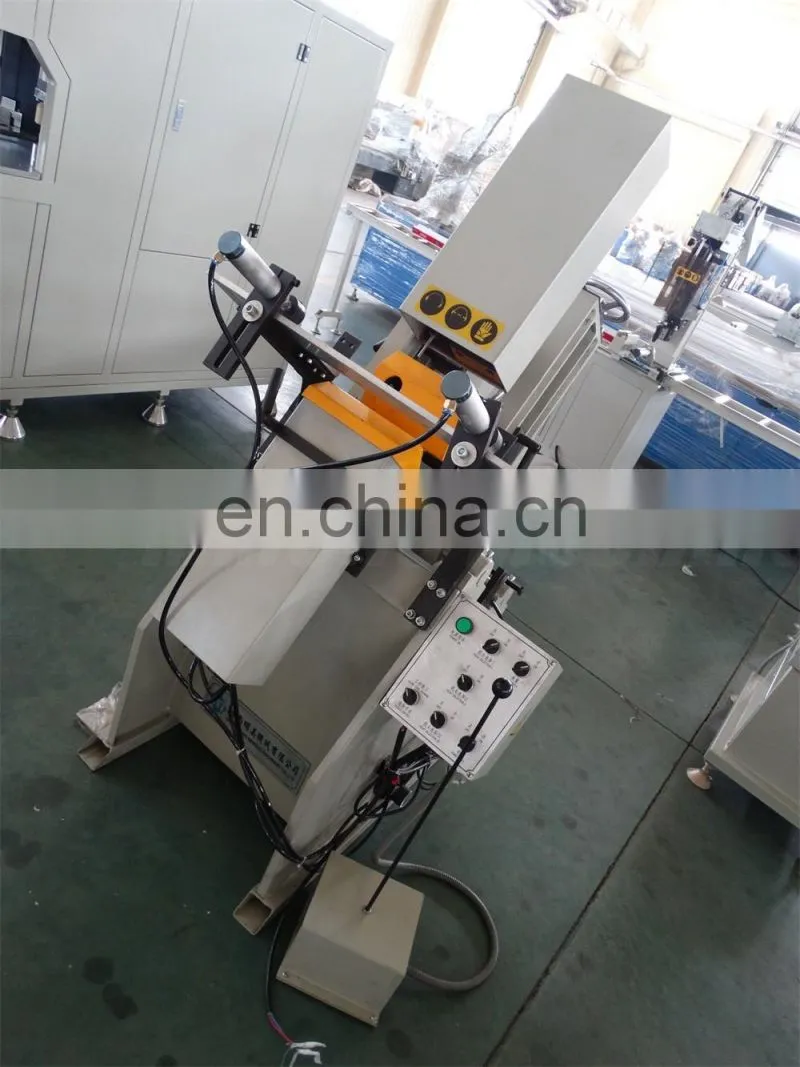

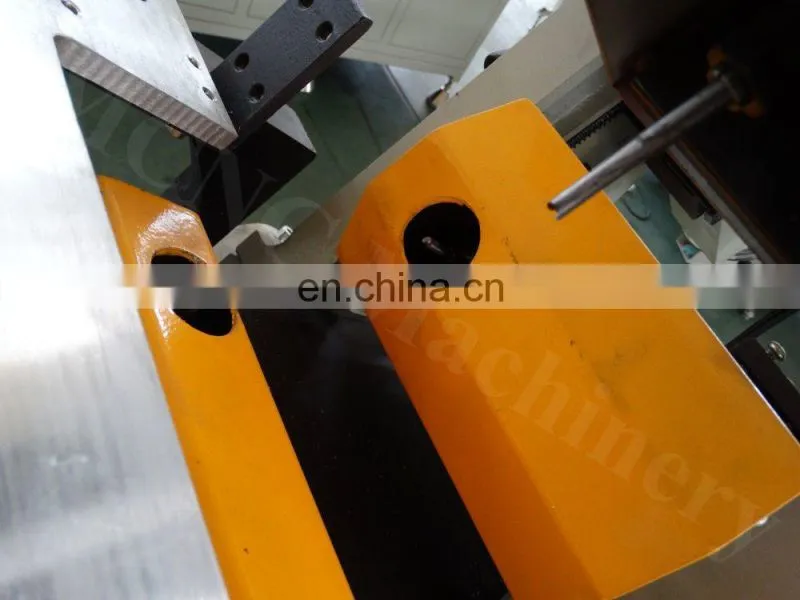

------PVC window door production line ------Overall images of machine

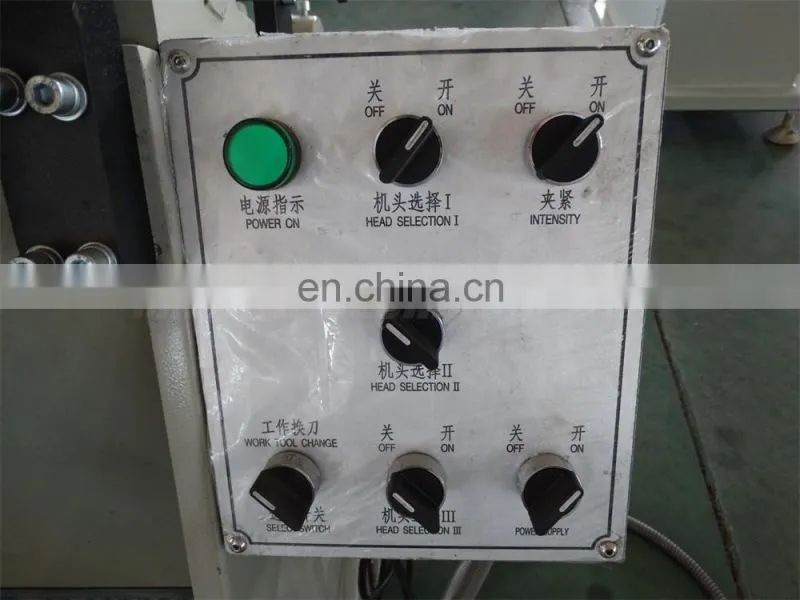

------3 axis(cutter).Double axis,four axis optional ------Control operate |

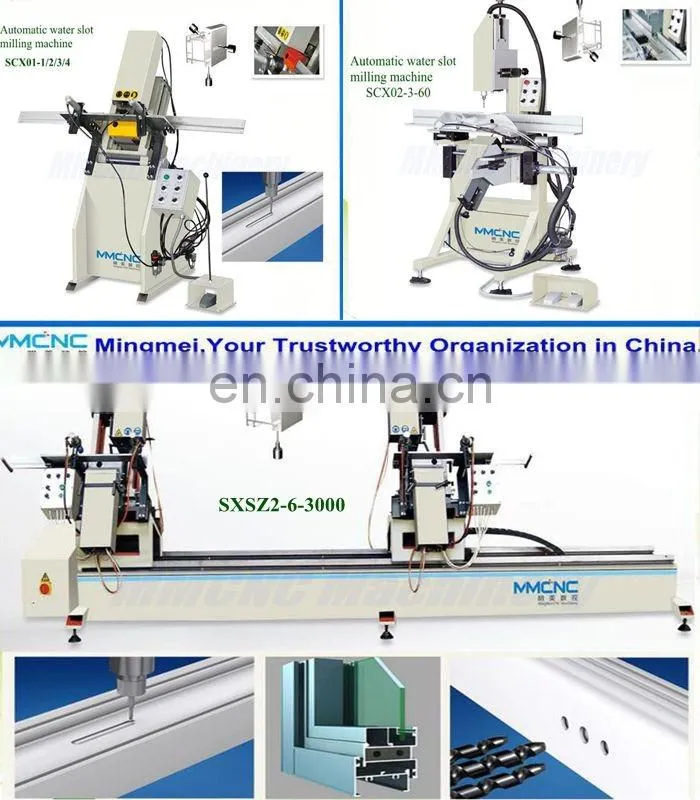

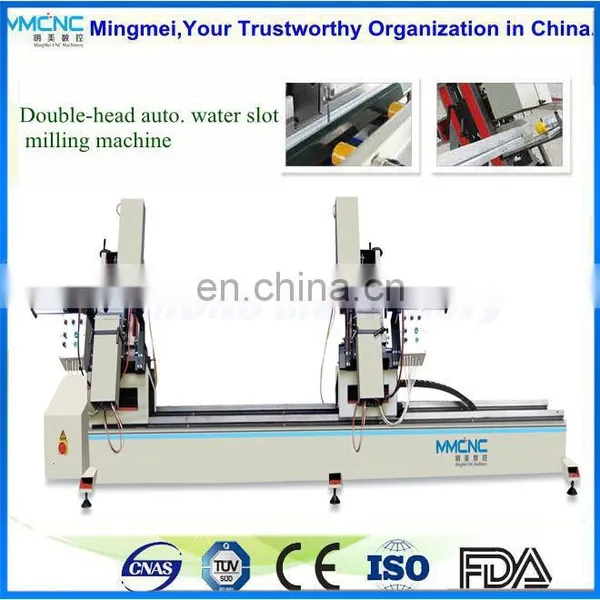

4. Different kinds of water slot milling machine for you reference |
|
5.Certifications of Mingmei CNC Machinery |
|
We Hope Fully Become Your Trustworthy Organization Jessica Jia (Sales Manager) Tel: 008613225317062 Skype: falconhatred Email: info@ |
What we can do for customers? |
|
-Pre-Sales Service * Inquiry and consulting support. * Design drawing of the factory workshop -After-Sales Service * One year warranty time, we can repair and replace parts for free in one year. * Our senior engineer is available to travel aboard, help the installation, maintenance and training staff. *We provide the consumable parts at agent price when you need replacement. By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation. With us your money in safe,your business in safe!
|
How about the Packing&Delivery? |
|
Packaging:These machines inside will be packed with Plastic Film and outside is standard export wooden case, to make sure customer will receive the machines they ordered Intact. Shipping:Shipping by 20GP,40GP,40HQ Container... We will provide professional packaging can save sea freight for cutomers. |
Shandong Mingmei CNC Machinery Co., Ltd |
|
MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs. MMCNC machine include Processing machine for making aluminum PVC window and door as well as curtain wall, such as--- Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got CE,ECM,EEC authorization .and it has won good market reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success! |
What's FAQ? |
|
1. Q: Are you a factory or trading company? A: We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall. 2.Q:How I can get suitable Machine? A:Please tell us what's your max working area (L*W*H), that will help us choice suitable machine for you 3. Q: How does your factory do regarding quality control? A:We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate. 4.Q:What you can do if my machines have problems? A: a.We can send you free components to you if your machines are in guarantee time. b.We can send our engineers to repair your machines 5. Q: If OEM available? A: Yes, as we usually do. 6.What's your payment methods? A: L/C, 30% deposit by T/T,70% spare payment L/C. |
