Automatic Water Slot Milling Machine
This machine is used for plastic door window
1.Equipment Features |
For our Automatic Water Slot Milling Machine |
Model SCX01-1/2/3/4
This machine is used for plastic door window
1 Milling all kinds of water slots and air pressure balance groove
2 Full design with high rigidity, processing beautiful water slot, high appearance quality.
3 Automatic cutter changer on the under head, one time clamp to finish water slots processing.
4 High efficiency , suitable for mass production
5 Special feeling system, need no special maintenance, high milling quality
6 Easily adjustment for the. Cutter location to meet different kinds of profiles
7 Water slot milling length adjustable within 100mm, wide adaptability
8 Adopt linear bearing motion to ensure the processing precision
2.Technical Parameter |
For our Mullion Cutting Saw |
1 |
Model |
SCX01-1/2/3/4 |
2 |
Air Pressure |
0.5~0.8Mpa |
3 |
Air Consumption |
100L/min |
4 |
Input Voltage |
380V/50Hz |
5 |
Input Power |
0.38Kw X2/3/4 |
6 |
Slot Depth |
30mm |
7 |
Slot Length |
30-60mm |
8 |
Cutting Diameter |
4 5 mm |
9 |
Overall Dimension |
4000x1120x1450mm |
10 |
Weight |
about 500kg |

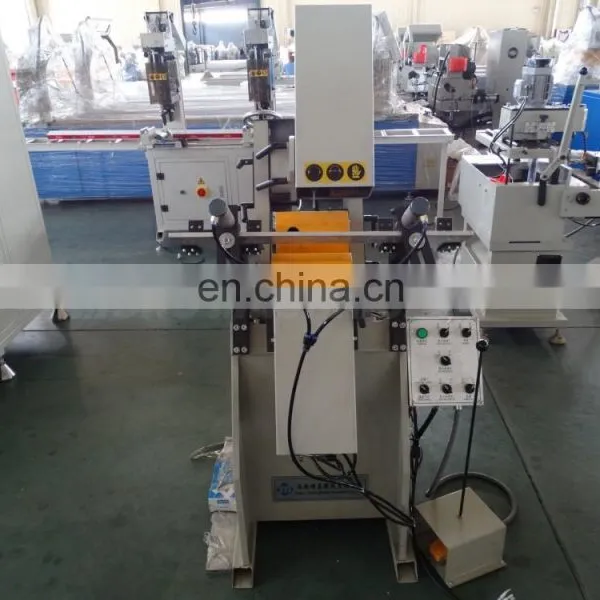

3.Whole Machine |
Automatic water slot |

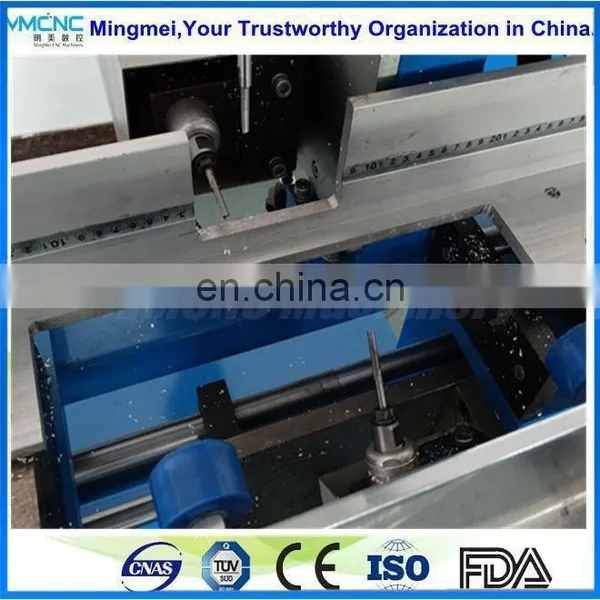

4.Detailed Photos |
Some parts of the machine |
