Home > Products > PVC Window-door Machine > PVC Plastic window door machine glazing bead saw
PVC Plastic window door machine glazing bead saw
- 50 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
Brand Name: | MMCNC MAXICUT | Place of Origin: | Shandong, China | Model Number: | SYJW-1800 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Plastic film or strong wood cases for PVC Plastic window door machine glazing bead saw
Product Description
Quality is our Culture!

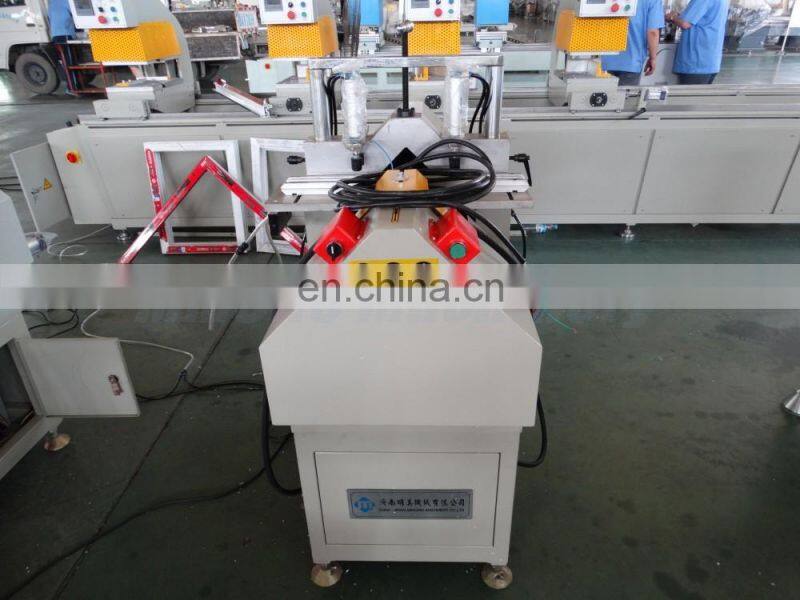

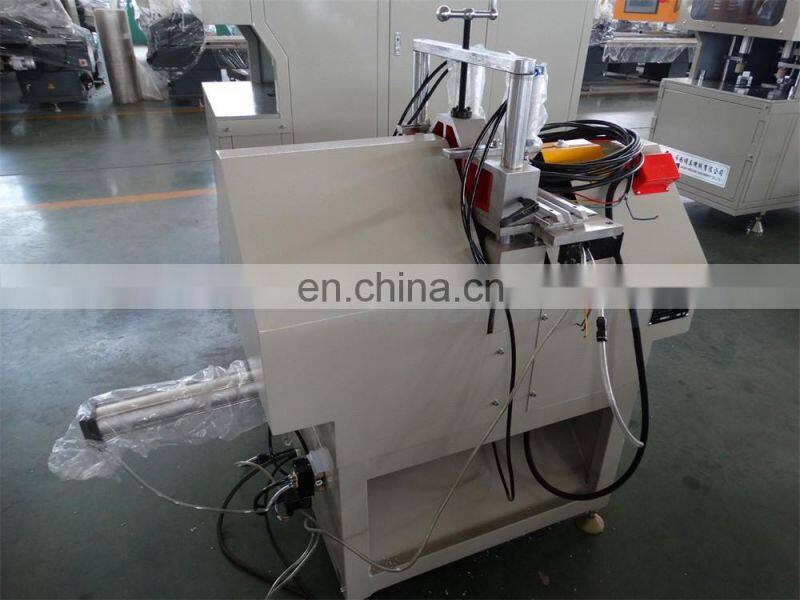

PVC Plastic window door machine glazing bead saw
1.Main Features for our V-shape Cutting Saw for PVC Profile |
Model SYJW-1800 For 45° glass batten cutting of aluminium and PVC profile. 1).The machine is used for processing the glazing beads, with the cutting and milling blades, it can finish the 45° cutting of two glazing beads in the back. 2).The machine is fixed horizontally so that the clamping of profile is simple and the cutting movement is stable, Thus, it ensures the high accuracy of bead processing and beautiful appearance. 3). This model is maily cut the PVC profile glaze bead profile, if you want to cut Aluminum profile glaze bead profile, we will change the strong saw blade for you, so that it can both cut Aluminum and PVC profile. 4).We will make the machine according to your true local power supply. |
2.Specifications for PVC Glass Glazing Bead Saw |
1 | Model | SYJW-1800 |
2 | Air Presssure | 0.4~0.6Mpa |
3 | Air Consumption | 80L/min |
4 | Input Voltage | 380V/50Hz |
5 | Input Power | 2x1.1Kw |
6 | Cutting Width | 120mm |
7 | Cutting Height | 29mm |
8 | Cutting Range | 320~1800mm |
9 | Overall Dimension | 1900x700x1350mm |
10 | Weight | about 160kg |
3.Detailed Images for your reference |

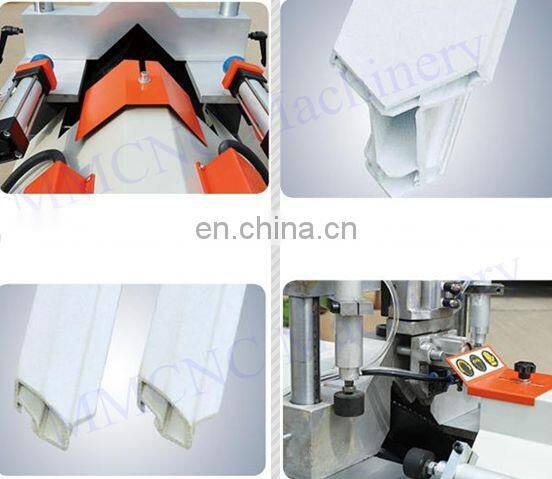

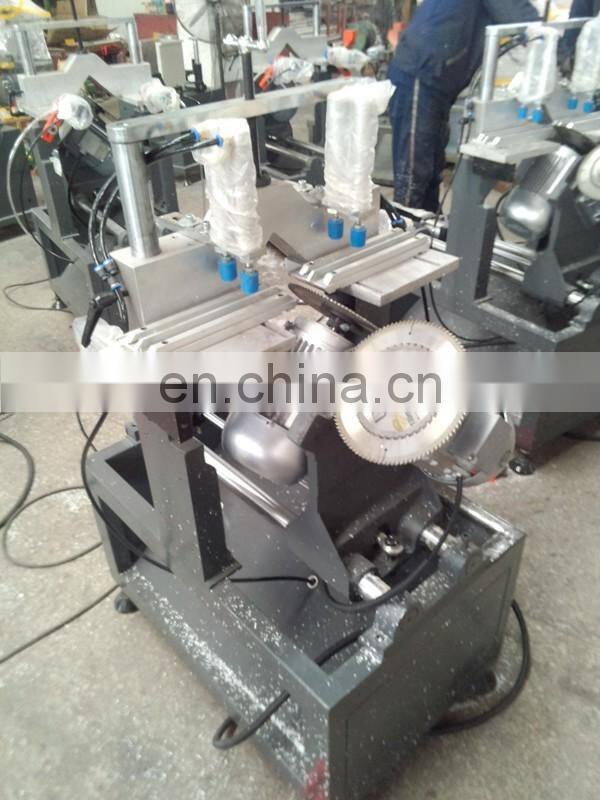

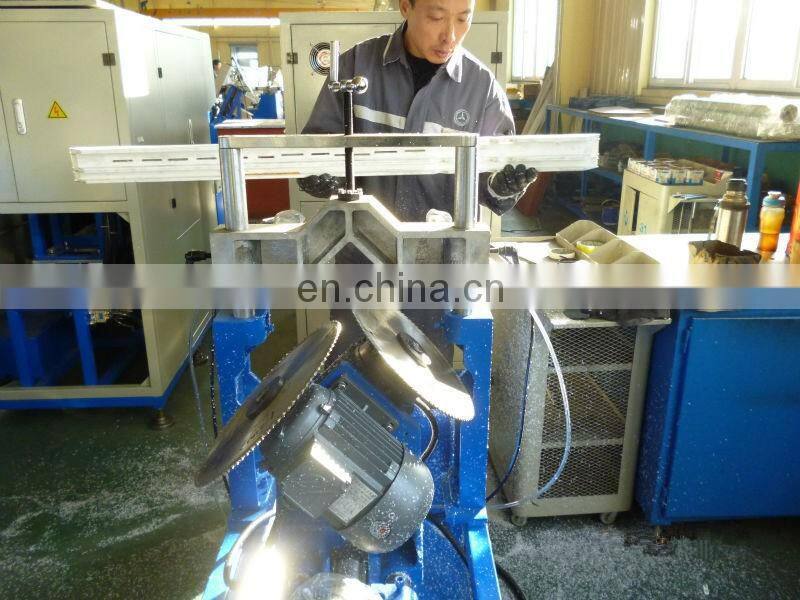

3.1 Details cutting blade 3.3 Machine during production in the workshop 3.4 Samples of V-cutting Saw and Glazing Bead Saw |
4.Certifications of Mingmei CNC Machinery |
We Hope Fully Become Your Trustworthy Organization Blair Zhang (Sales Manager) Tel: +86-15965629053 Wechat: cncmachines Email: trade@ |
What we can do for customers? |
-Pre-Sales Service * Inquiry and consulting support. * Design drawing of the factory workshop -After-Sales Service * One year warranty time, we can repair and replace parts for free in one year. * Our senior engineer is available to travel aboard, help the installation, maintenance and training staff. *We provide the consumable parts at agent price when you need replacement. By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation. With us your money in safe,your business in safe!
|
How about the Packing&Delivery? |

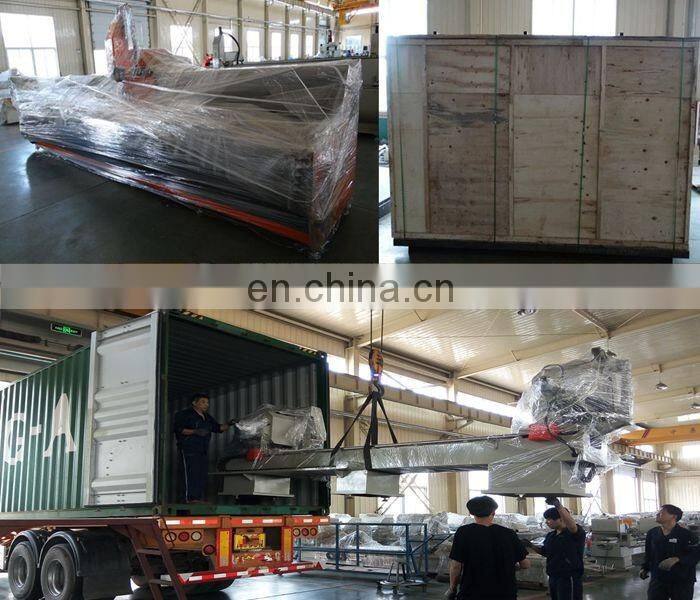

Packaging:These machines inside will be packed with Plastic Film and outside is standard export wooden case, to make sure customer will receive the machines they ordered Intact. Shipping:Shipping by 20GP,40GP,40HQ Container... We will provide professional packaging can save sea freight for cutomers. |
Shandong Mingmei CNC Machinery Co., Ltd |
MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs. MMCNC machine include Processing machine for making aluminum PVC window and door as well as curtain wall, such as--- Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got CE,ECM,EEC authorization .and it has won good market reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success! |
What's FAQ? |
1. Q: Are you a factory or trading company? A: We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall. 2.Q:How I can get suitable Machine? A:Please tell us your plan production, the max size of material,then we can tell your how many machines you needs, then tell you how much Squaremeters workshop is better for you. 3. Q: How does your factory do regarding quality control? A:We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate. 4.Q:What you can do if my machines have problems? A: a.We can send you free components to you if your machines are in guarantee time. b.We can send our engineers to repair your machines 5. Q: If OEM available? A: Yes, as we usually do. 6.What's your payment methods? A: L/C, 30% deposit by T/T,70% spare payment L/C. |
Mingmei CNC: Supplying the most durable CNC machine is our lifelong promise!
All of us appreciate your visiting our website.
Send your inquiry Details in the below and click"Send"now!
We are eager and ready to go to work for you.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
