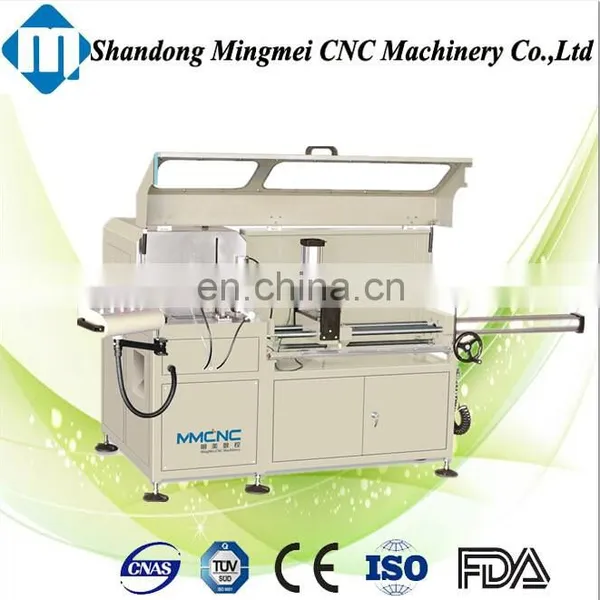

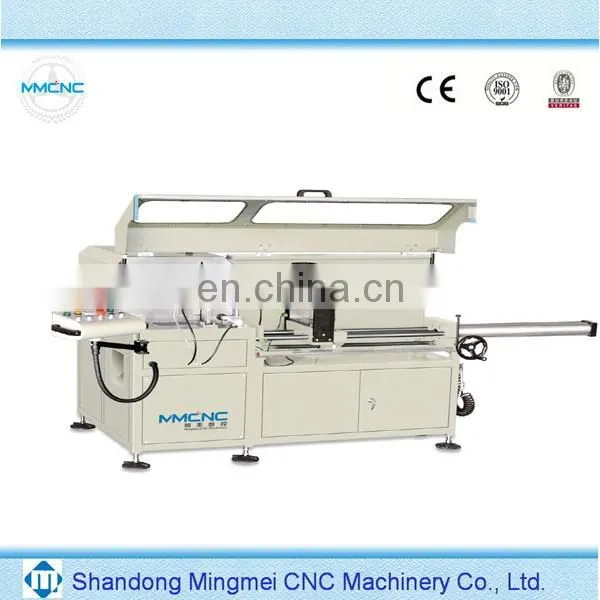

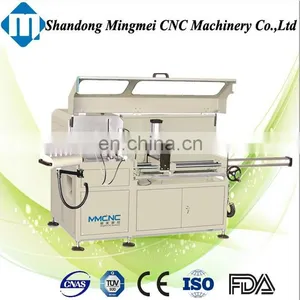

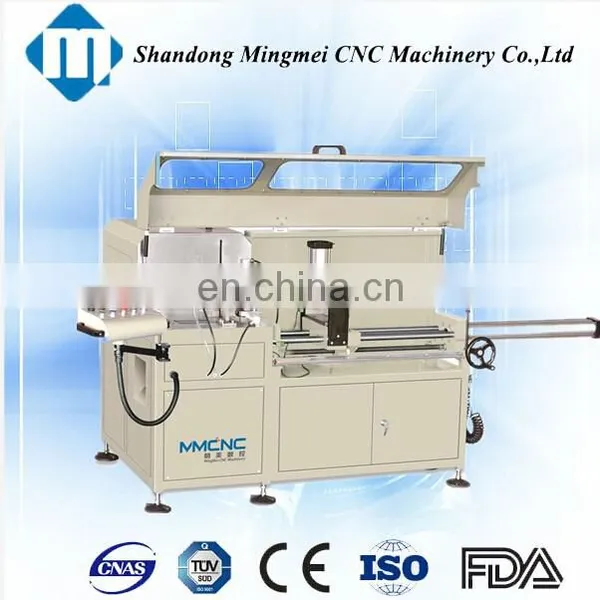

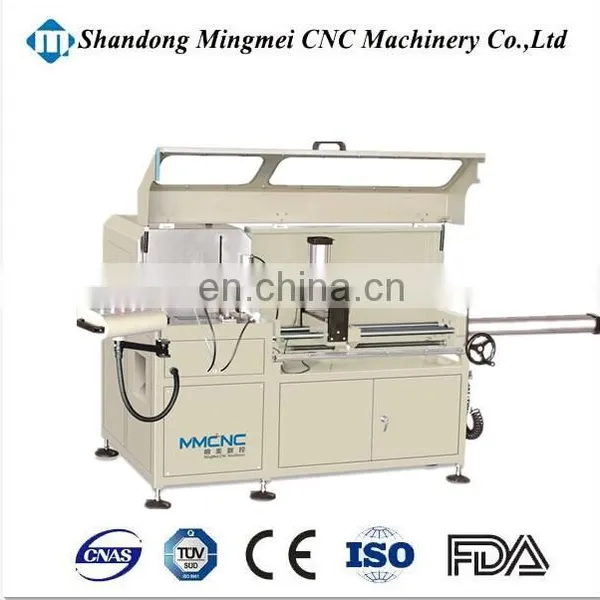

High Efficient CNC Full Automatic Corner Connector Cutting Saw
GXSK-450
Equipment Features:
1.Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade ,high transmission efficiency ,high machining precision ,high material utilization.
2.The kinematic pair of cutting part adopts linear guide ,the kinematic pair of automatic feeding adopts ball screw.Stable operation ,high precision .
2.With the function of automatic counting.
3.With the device of spraying,which could improve the processing presicion and prolong the service life of saw blade.
4.Forward and backward profile butt jiont without tailing,when the profile was cutting.(Patent No.:2015 20423765.6)
Technical Parameter
| Cutting length | 5mm-1000mm |
| Motor power | 3kw |
| Motor speed | 2800r/min |
| Working power | 380v,50HZ |
| Dimension of saw blade | φ450mmxφ30mmx2.6 |
| Saw blade feeding speed | 0-3m/min |
| Working air pressure | 0.5-0.8mpa |
| Dimension | 2500x1200x1650mm |
| The length of auto-feeding | 5-1000mm |
| Net weight | 780kg |
Company and equipments pictures
