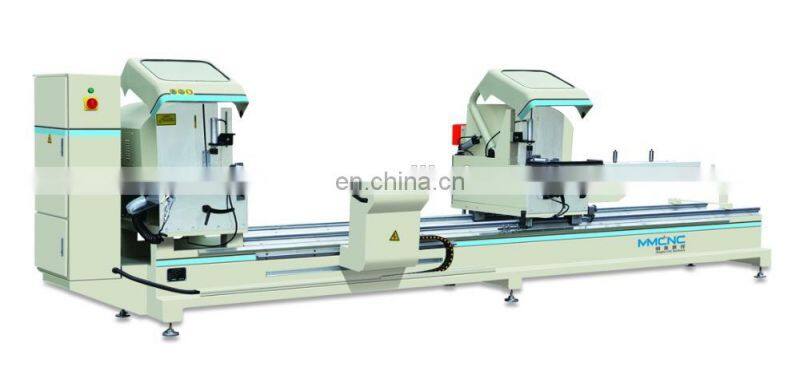

High precision 45 degree multi heads wood cutting machine
We are the company of trade assurance of Alibaba. You can send our company order on Alibaba website.The Alibaba will Ensure on-time shipment and pre-shipment product quality.
1.Feature
1.1 The two saw head independent swing angle,adopt cylinder driving,set up three common angle that is -45° 90°+45°
1.2 Set up Manually position at arbitrary angle function within 45°~90°,the knob to the positioning position,make the pendulum angle cylinder pressure to be released in full,avoid plane positioning arbitrary angle position change.
1.3 When saw head swing to 45°,the front protection hood automatically to two saw head of intermediate mobile,which increase the reliability of safety production.
1.4 Large cutting range,cutting 160~220mm when 90°,cutting 160~155mm when 45°(Profile width less than 160mm,the corresponding height increase).
1.5 The right saw head follow-up material carrying frame length is 1800mm
2. Parameter
Input Power |
5.9kw |
Power Supply |
380V/50Hz |
Working Pressure |
0.6-0.8 MPa |
Rpm |
2800r/min |
Size of Saw Blade |
φ500xφ30x4.4 |
Cutting Angle |
45°~90°~135° |
Cutting Length |
580~5000mm |
Cutting Width * Height |
160x155mm |
Dimension |
7300*1300*1500 |
Weight |
1800kg or so |

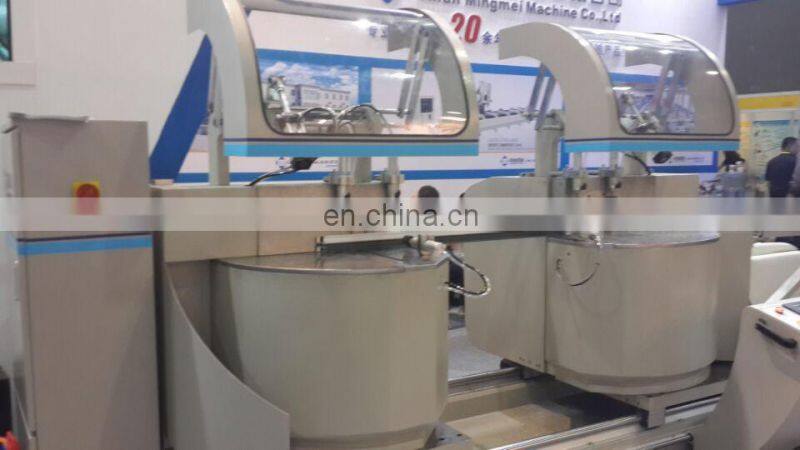

3.Picture of machine

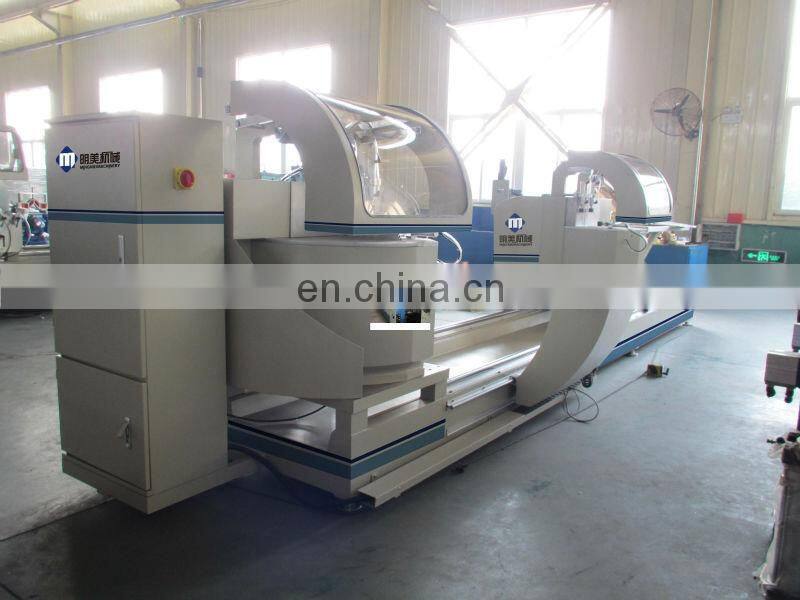

4.Detailed Pictures
Showing Room:
