Double-head Cutting saw for aluminum & PVC Profile
LJGS-500x4200
Features
1 The main material for aluminum alloy curtain wall, window material cutting, and can also be used for plastic profile cutting
2 The use of carbide saw blades, diameter up to 500 dia, line of high speed, high precision machining.
3 Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working.
4 This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size
5 Machine during operation, two saw blade can cut, can separate cutting.
6 The saw head can be set to 45 degrees and 90 degrees need angle
7 The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large
8 Adopted the electrical motor protect device to improve the safety.
Technical Parameters
1 Input power :5.9kw
2 Power supply 3800V50/Hz
3 Working pressure : 0.6-0.8MPa
4 Motor rotary speed :2800r/min
5 Saw blade specification:φ480xφ30x4.4
6 Cutting angle:90°-45°
7 Cutting length:480-4200mm
8 Cutting width x height:235x130
9 Overall dimension :5750x1300x1500
10 Weight:1550kg
Input Power |
5.9kw |
Power Supply |
380V/50Hz |
Working Pressure |
0.6-0.8MPa |
Rpm |
2800 |
Size of Saw Blade |
480*30*4.4 |
Cutting Angle |
90°-45° |
Cutting Range |
480-4200mm |
Cutting Width * Height |
235*130 |
Dimension |
5750*1300*1500 |
Weight |
1550kg or so |
Machine Picture

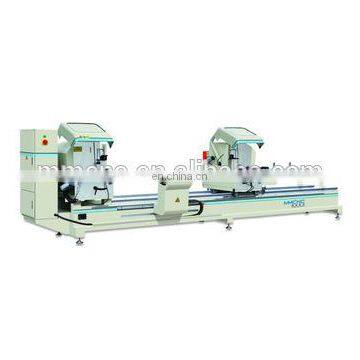

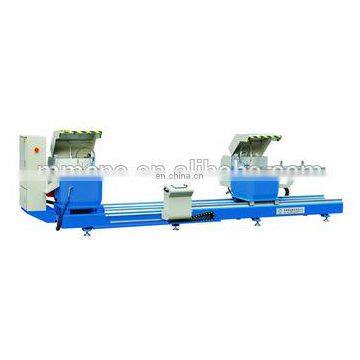

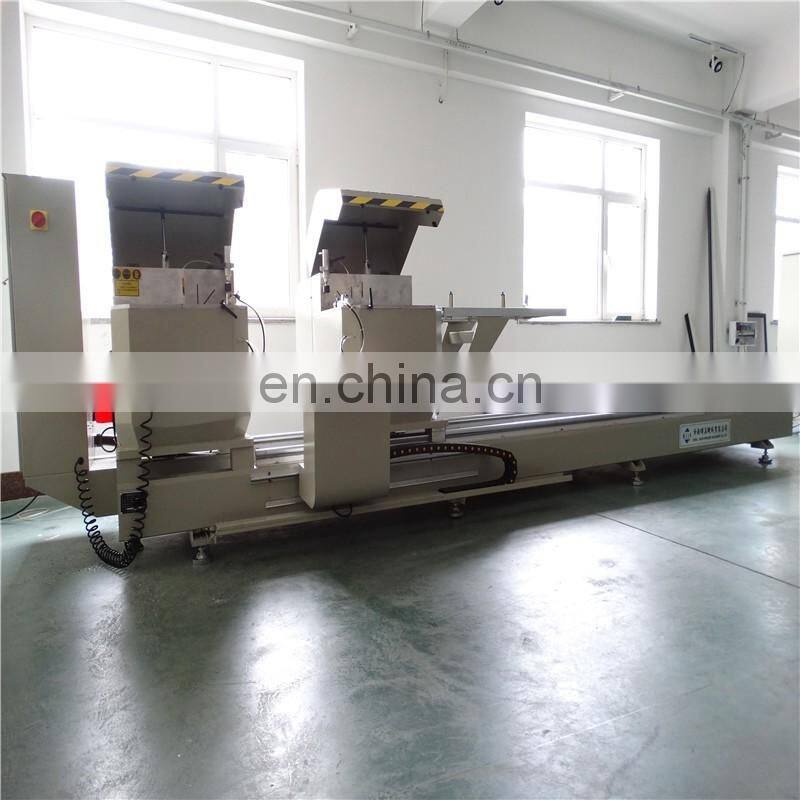

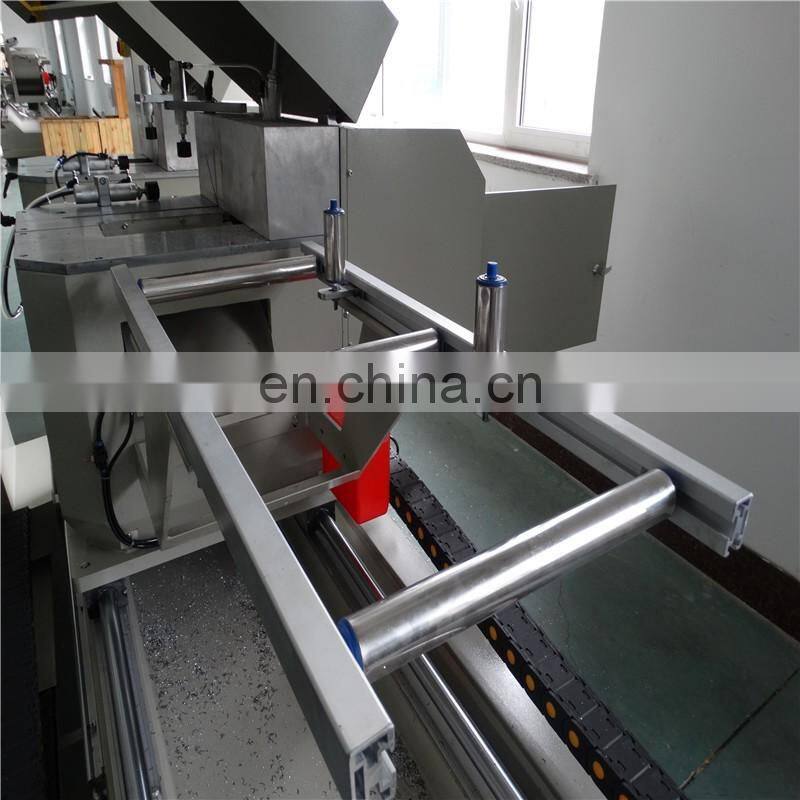

Whole picture

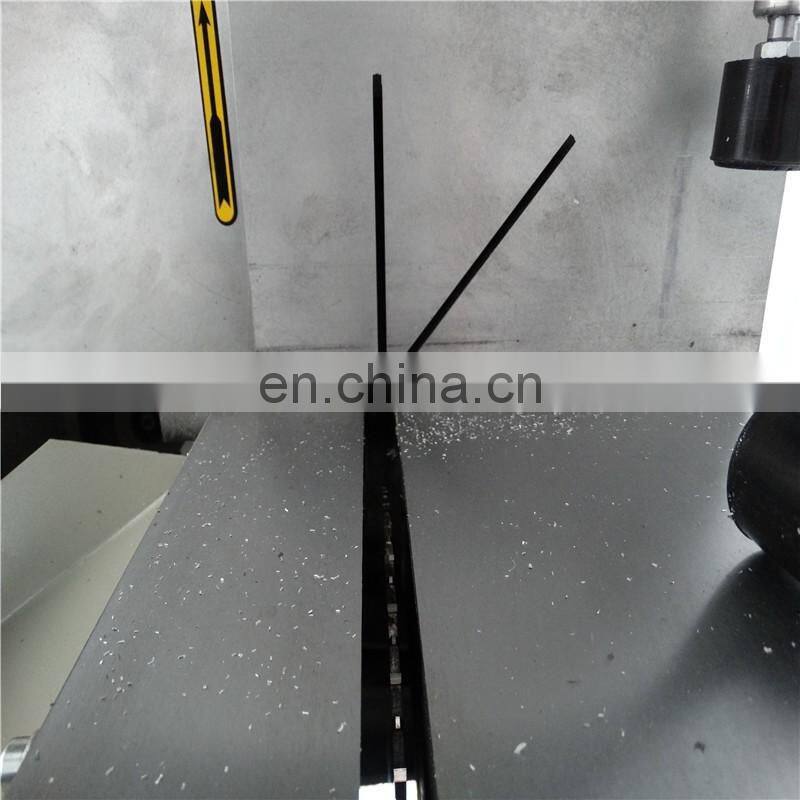

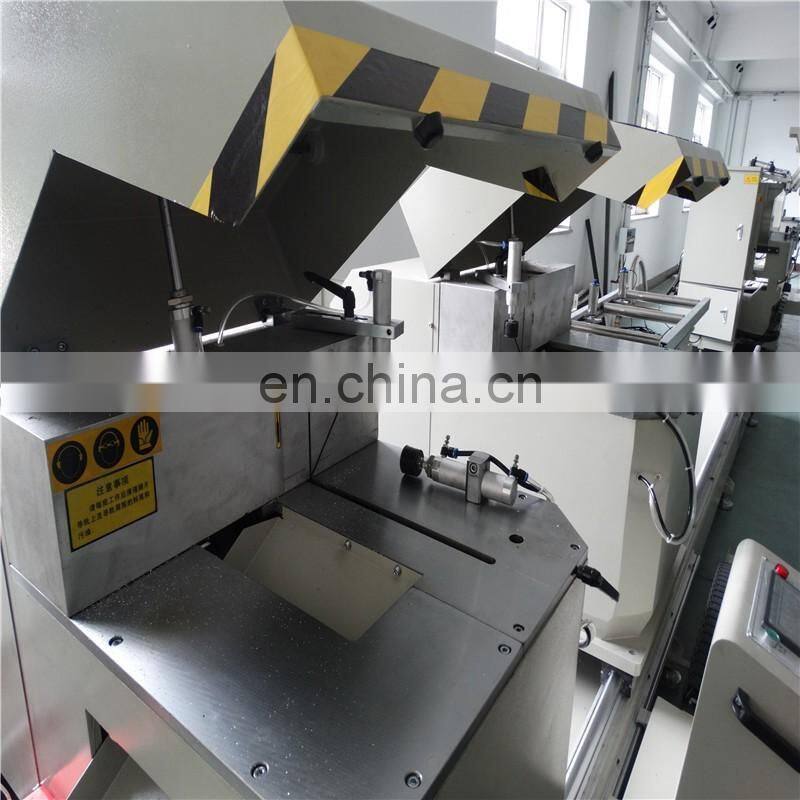

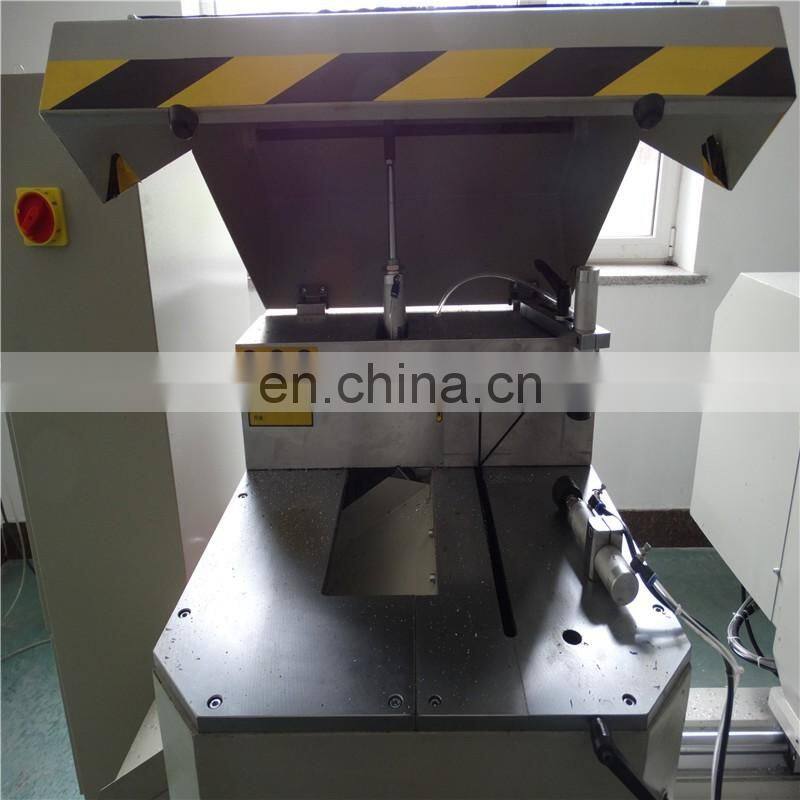

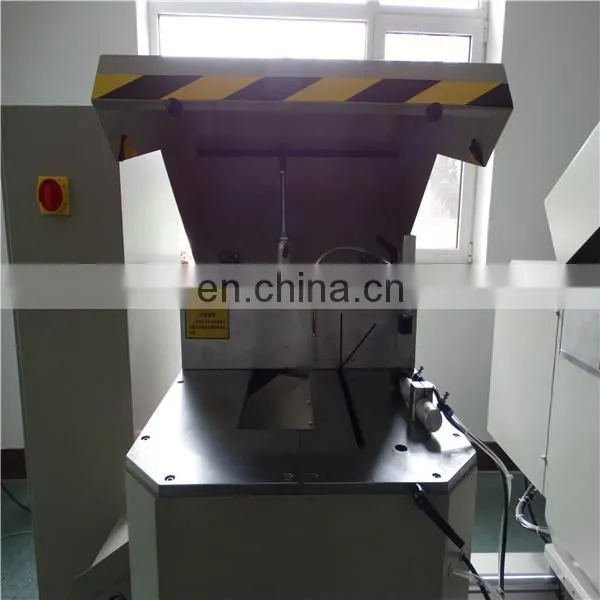

Saw picture

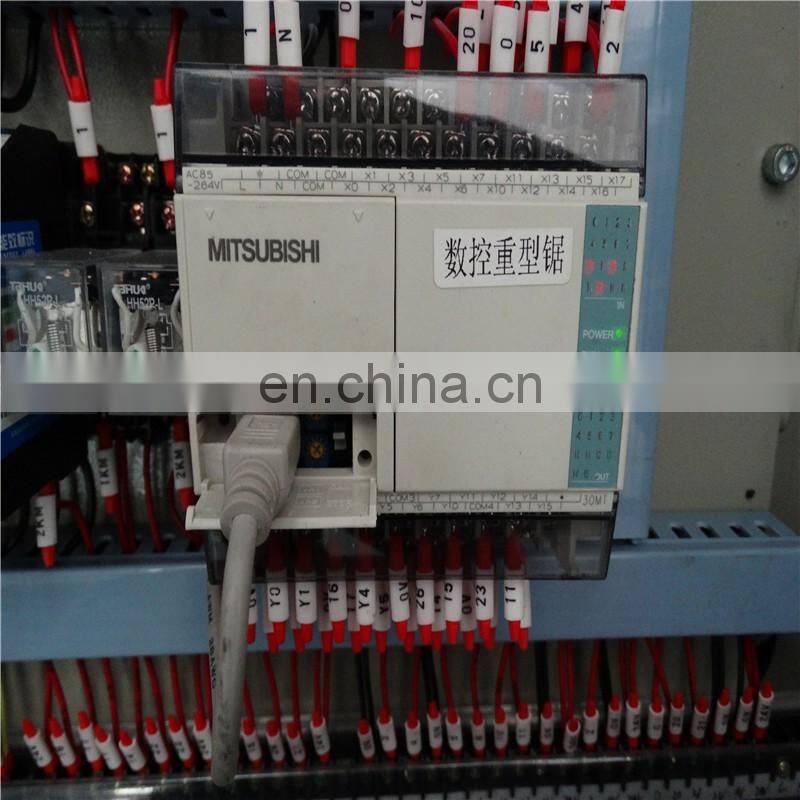

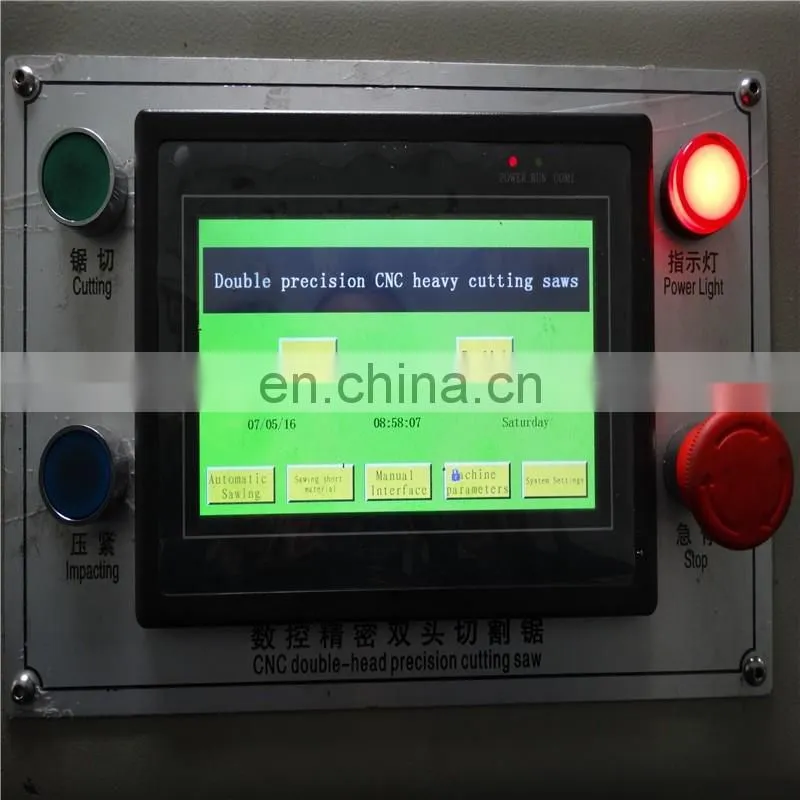

MitsubishiSystem

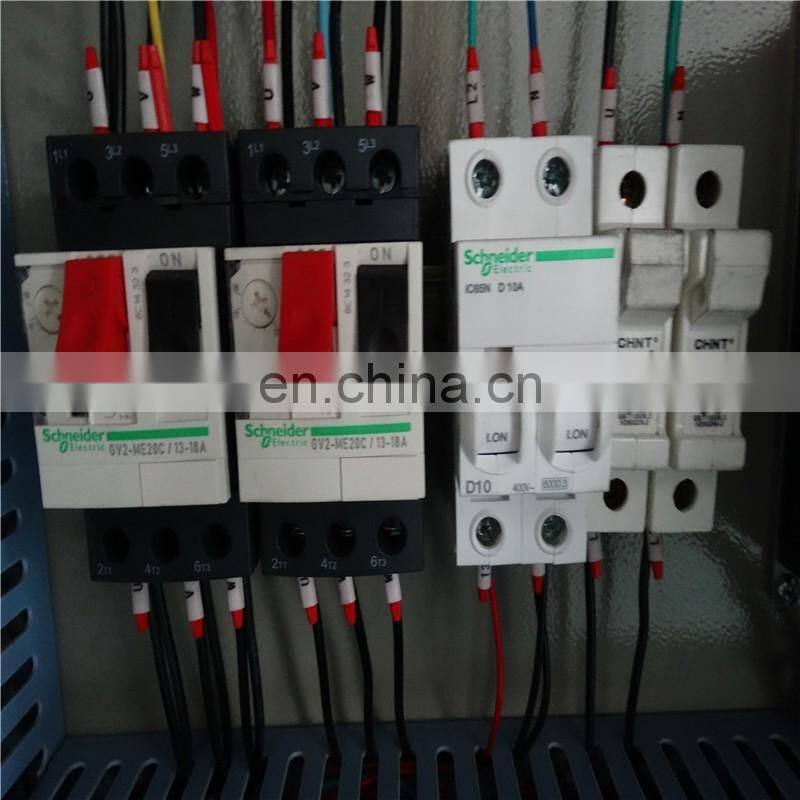

Electrical parts

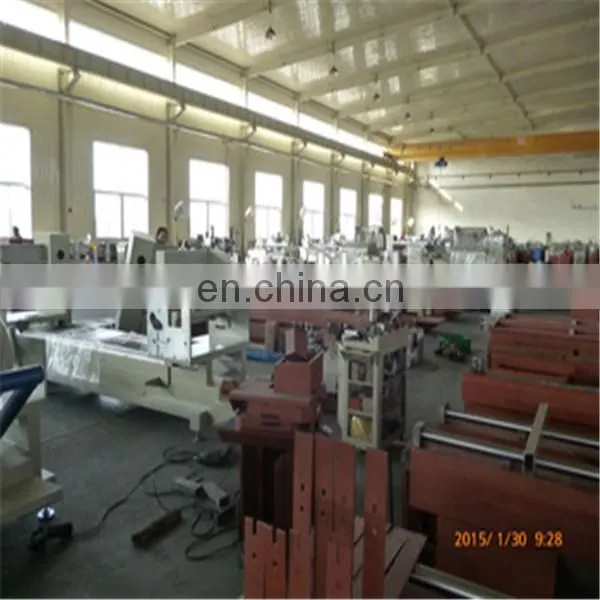

Shandong Mingmei CNC Macinery Co.,Ltd.was founded in 1995 ,locates in jinan economic dev.zone.Company cover total area of 70000m² and 200 personnel.
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
