Good Quality End Milling Machine UPVC Window and Door Machine made in Jinan
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
LXD-250 Full automatic Aluminum and UPVC window door mullion end milling machine made in Jinan
-
Hot sale 2016 Corner Connector Automatic Cutting saw for window making LJJA-500
-
Double Mitre Saw for Aluminum Profiles LJZ2(-CNC)-450X3700
-
China Factory Supply Automatic Aluminum Cutting Saw For Windo/Double-head high-efficiency Cutting Saw for Aluminum & PVC Profile
-
Double-head high-efficiency Cutting Saw for Aluminum & PVC Profile/double mitre saw for aluminum profiles
-
Aluminium Profiles Digital Dsipaly Double Head Cutting Saw Machinery / Aluminum Semi automatic Double Mitre Saw
Product Details
Brand Name | mmcnc | Model Number | LXDX-250*5 |
Strong Plywood
Product Description
End-miling Machine for Aluminum Profile
LXDX-250*5
Features
1 Used for aluminum profile and suitable for variousprofiles, clamp one time can processing muiti-piece profiles, which increased the processing effciency.
2 Universal milling blades can be adjusted in up/down left/right directions and not made extra, which to fit for different processing requirement and ensure the effcient working.
3 Convenient tool adjustment to meet different processing requirement, need not ordering tools when process various profile, thus candecrease cost and save time.
Technical Parameters
1 Cutting motor power : 4*2.2kw
2 Power supply :380V/50Hz
3 Working pressure :0.6-0.8MPa
4 Motor rotary speed:2800r/min
5 Worktable journey:1500m
6 Max open tenon: 40mm
7 Cutter adjustment:85mm
8 Saw blade specification:φ 250x φ32
9 Contour dimension :2680x1020x1600mm
10 Weight about:8867kg
Model | LXDX-250*5 |
Input Voltage | 80V 50Hz (three-phase, four-wire) |
Input Power | 4*2.2KW |
Rotary Speed | 2800r/min |
Air pressure | 0.6MPa~0.8Mpa |
Saw Blade Specification | φ250mm×32mm |
Max open tenon | 40mm |
Cutter adjustment | 85mm |
Worktable journey | 0-1500mm |
Overall Dimension | 2680mm×1020mm×1600mm |
Weight | about 887kg |
Machine Picture

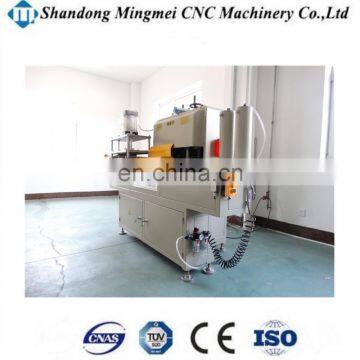

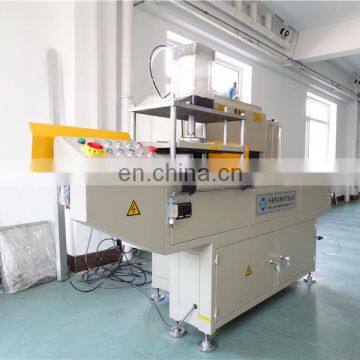

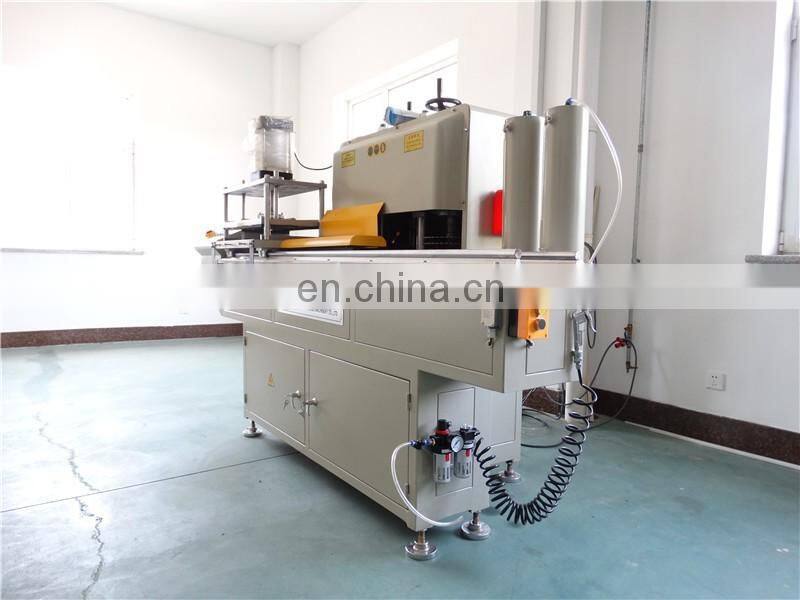

Whole picture

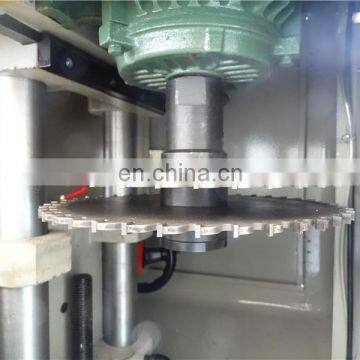

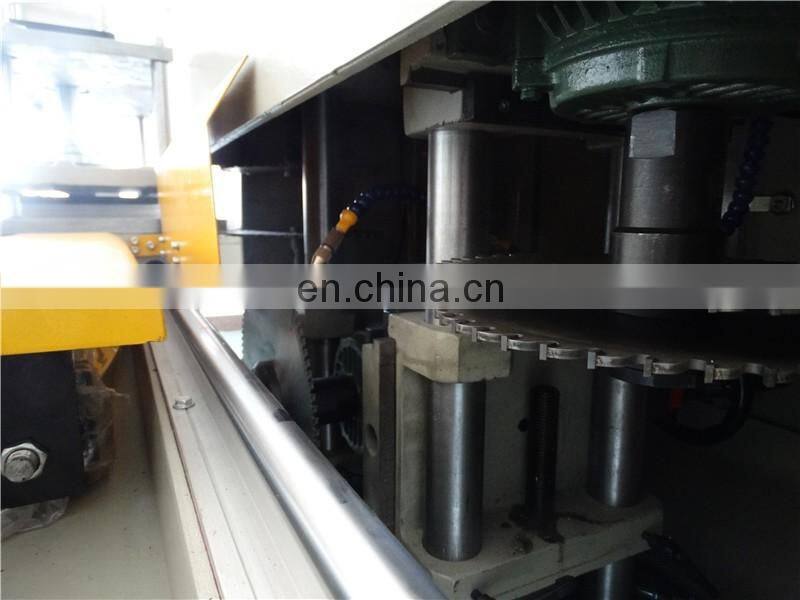

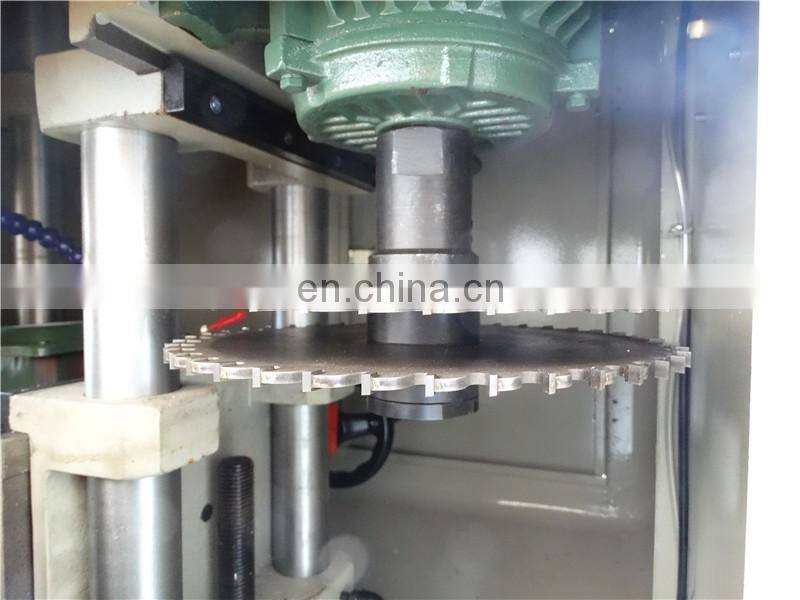

Saw picture

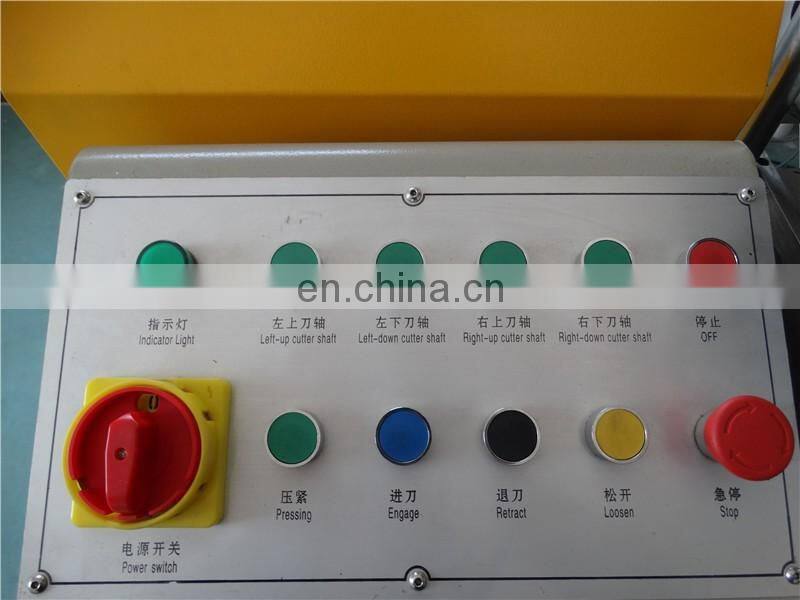

Electrical parts
Shandong Mingmei CNC Macinery Co.,Ltd.was founded in 1995 ,locates in jinan economic dev.zone.Company cover total area of 70000m² and 200 personnel.
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
