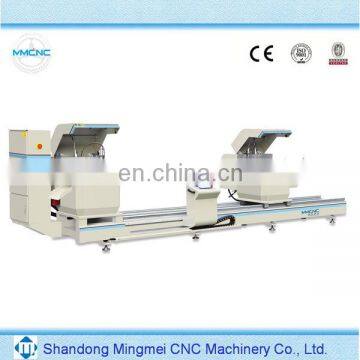

Twin-Head Cutting-Off Machine With 3 Axes / Double mitre saw
1.Features of Double-head Precision CNC cutting saw
♦ The main material for aluminum alloy curtain wall, window material cutting, and can also be used for plastic profile cutting.
♦ The use of carbide saw blades, diameter up to 500 dia, line of high speed, high precision machining.
♦ Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working.
♦ This machine uses the numerical control technology, profiles of different specifications can be complated automacally under the expected size.
♦ Machine during operation, two saw blade can cut, can separate cutting.
♦ The saw head can be set to 45 degrees and 90 degrees need angle.
♦ The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.
2. Technical Parameters
Model |
LJGS-500*4200 |
Input power |
5.9kw |
Power supply |
380v/50hz |
Air-pressure |
0.6-0.8MPa |
Motor rotary speed |
2800r/min |
Saw Blade specification |
480x30mmx4.4 |
Cutting angle |
90~45 ° |
Cutting length |
480-4200mm |
Cutting width x height |
235x130mm |
Overall dimension |
5750*1300*1500 |
Weight |
1550kg |
We have one unwavering goal, and that's to be the best window and door equipment manufacturer
We will settle for nothing less.
TO ACHIEVE THAT GOAL, WE ARE COMMITTED TO THREE GUIDING PRINCIPLES
The individual must be respected.
The customer must be given the best possible service.
Excellence and superior performance must be pursued.
Our company,Shandong Mingmei CNC Machinery Co.,Lts. was founded in 1995,located in jinan economic dev.zone. Company cover total area of 7000m2and 200 personnel.
As leading manufacturer of dustrial aluminum equipment, which is a modern private enterprise specialized in technology development, machinery manufacture and productsales.
We believe that ,selection of Mingmei, tomorrow wil be better.
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration), 21 years' focusing on Aluminum Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. If we don’t know the machine operation, what should we do?
Each of our product provide video training to show you how to install & operate.
