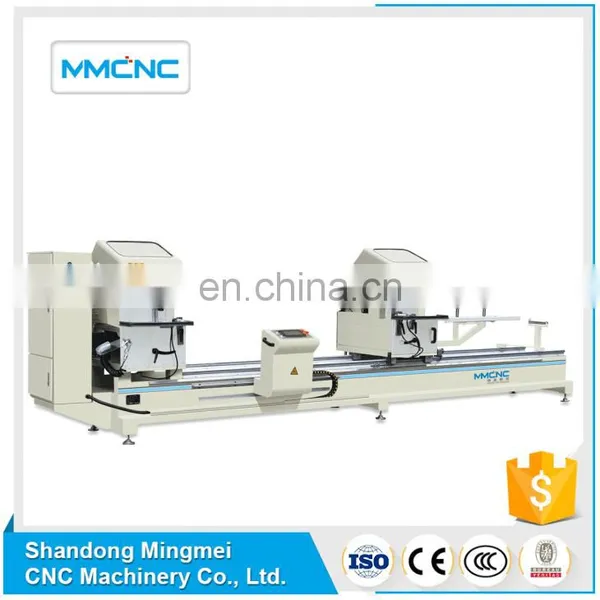

Aluminum Profile CNC Precision Double Head Saw
Feature :
1.1 Imported carbides blade is of accurate processing and high endurance
1.2 Saw blade rotates smoothly due to high accurate main spindle
1.3 Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.
1.4 The feeding system adopts the imported linear guide pair,with high accuracy and stability.
1.5 Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.
1.6 Auto-opening shield marked the operation safety
1.7 Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working.
1.8 This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size
1.9 Adopted the electrical motor protect device to improve the safety
Parameter:
| Power Supply | three phase four wire 380V/50Hz |
| The motor of the saw head | power 5.9kw |
| Motor Rotary Speed | 2800r/min |
| Cutting Angle | 45, 67.5 and 90 |
| Control system | PLC |
| Saw blade | 500mm |
| The Air Pressure | 0.5MPa~0.8MPa |
| Cutting Length | max 4200mm |
| Cutting Width X Height max | 135*200 |
| Overall Dimension | 5700*1650*1520mm |
Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.
Main products include aluminum doors and windows, aluminum curtain wall, aluminum & wood window, UPVC window, engraving machine, CNC steel structure machinery and CNC metal sheet processing equipments etc. We have advanced machining centers, large planer, horizontal boring machine and other specialized machining equipments and realize the specialized and scale model manufacturer.
We have more than 30 marketing service institutions throughout China so as to promptly provide services for customers in the very neighborhood. The professional services industry 20 years, continue to provide excellent products to global customers. Company advanced production equipment, superb technology, investment and the introduction of a series of international advanced production lines. With all kinds of excellent mechanical processing equipment more than 100 sets. Selection of Mingmei,tomorrow will be better.
Pre-Sales Service :
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
After-Sales Service :
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement
With us your money in safe,your business in safe!
