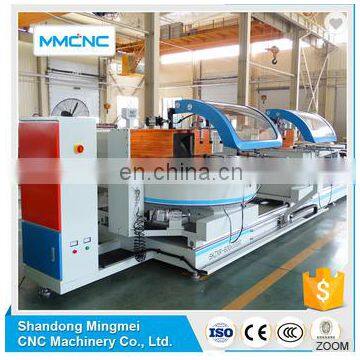

Hot sale cnc cutting saw double head made in Mingmei factory
1.Equipment Features |
|
1.1 It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry. 1.2 It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging. 1.3 Adopt servo motor to drive reducer, implement saw blade rotating positioning at any anglebetween 45°and 90°. 1.4 Two cutting heads can swing positioning at any angle between 45°and 90°. 1.5 Two cutting heads not only can work separately, moveable head feeding material continuously,fixed cutting head cuttingcircularly; but also can work simultaneously, can cut needed length and profile two ends angle at one time. 1.6 Hard alloy teeth cutting blade, high cutting speed,high produce efficiency,high process accuracy. |
2Technical Parameter |
Model |
SKZXR-600x5300 |
|
2.1 |
Power Supply |
three phase four wire 380V/50Hz (Can be produce according to clients .) |
2.2 |
The motor of the saw head |
power 3 X 2 kw |
2.3 |
Motor Rotary Speed |
2800r/min |
2.4 |
The saw wings servo motor |
power 0.9 x 2 kw |
2.5 |
The head horizontal moving servo motor |
power 1.5 kw |
2.6 |
The head angle motor |
power 0.18 x 2 kw |
2.7 |
The Air Pressure |
0.5MPa~0.8MPa |
2.8 |
Cutting Length |
max 5300mm |
2.9 |
Cutting Width X Height |
max 500X180 mm (90°) |
2.10 |
Cutting Height Max |
210 mm (90°) |
| 2.11 | Cutting Angle |
Saw Blade 45°~ 90° Machine head 45°~ 90° |
| 2.12 | The feeding speed |
Speed Governing Continuously 0~ 3m/min |
| 2.13 | Saw Blade Specification |
φ600mm×4.4mm×φ30mm Z=120 |
| 2.14 | Overall Dimension |
7500mm×2450mm×1700mm |
| 2.15 | Weight about |
5100kg |
