Double-head Cutting Saw for Aluminum & PVC Door Window,Window Door Machine/Aluminum PVC Profile Cutting Machine

LJZ2-450×3700 Window Door Machine/ Aluminum and PVC Profile Cutting Machine/ Cutting Saw Machine Price

1. Equipment Features

 1.1  The machine is used for cutting of aluminum profile.

 1.2  Imported carbides blade is of accurate processing and high endurance.

 1.3  The two heads can work alone, can also work at the same time.

 1.4  To cut out a section of desired length and two end angles.

 1.5  Right head adopts motor drive.

 1.6  Two saw head can be manually switching angle, realize the - 45 degrees, 90 degrees, 45 degrees angle cutting profile.

2. Parameter

 2.1  Input power   3.55Kw

 2.2  Power supply  380V/50Hz

 2.3  Air pressure 0.5~0.8MPa

 2.4  Motor rotary speed 2800r/min

 2.5  Saw Blade specification Φ450*Φ30

 2.6  Cutting angle -45~90~45?

 2.7  Cutting length 680~3700mm

 2.8  Cutting width *height 120*160mm

 2.9  Overall dimension 4600*1300*1550mm

 3.0  Weight about 806kg

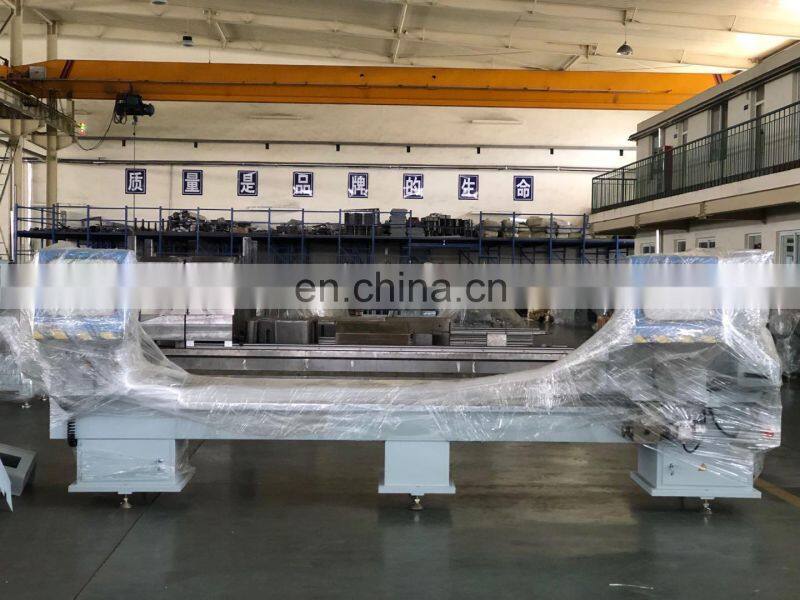

3. Detailed Photos

4.Packing&Deilivery
