CNC Multi-function Double-head Cutting Saw

Standard Package

CNC Multi-function Double-head Cutting Saw

  1. General Introduction

  This machine is designed for cutting of aluminum profile.The two saw head independent swing angle,adopt cylinder driving,set up three common angle that is -45°90°+45°.

 2. Equipment Features

 2.1 The two saw head independent swing angle,adopt cylinder driving,set up three common angle that is -45°90°+45°.

 2.2 Set up Manually position at arbitrary angle function within 45°~90°,the knob to the positioning position,make the pendulum angle cylinder pressure to be released in full,avoid                plane positioning arbitrary angle position change.

2.3 When saw head swing to 45°,the front protection hood automatically to two saw head of intermediate mobile,which increase the reliability of safety production.

 2.4 Large cutting range, cutting160~220mm when 90°, Cutting 160~155mm when 45°.(Profile width less than 160mm,the corresponding height increase).

 2.5 The right saw head follow-up material carrying frame length is 1800mm.

3. Parameter

LJDGN2BS-500*5000

3.1 Input power 5.9Kw

3.2  Power supply 380V/50Hz

 3.3  Air pressure 0.6~0.8MPa

 3.4  Motor rotary speed 2800r/min

 3.5  Saw Blade specification Φ500*Φ30*4.4

 3.6  Cutting angle 45~90~135 degree

 3.7  Cutting length 580~5000mm

 3.8  Cutting width *height: 160*155mm

 3.9  Overall dimension 7300?300?500mm

 3.10  Weight about 1800kg

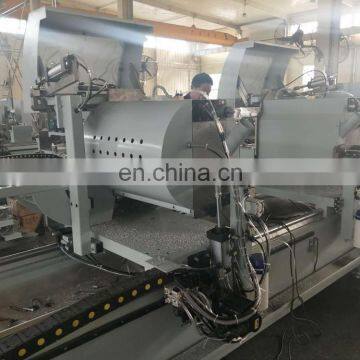

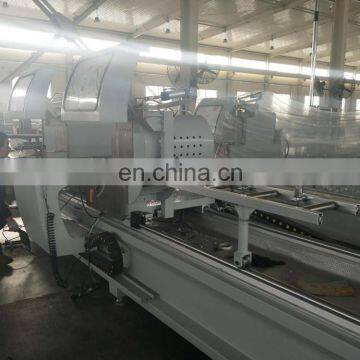

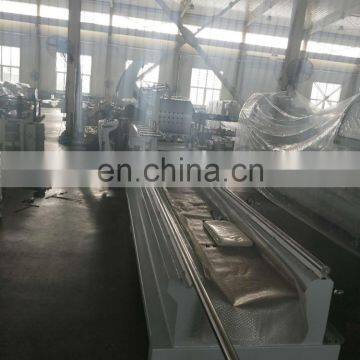

4.Product photos

If you have any interest about our products,please contact me any time.
