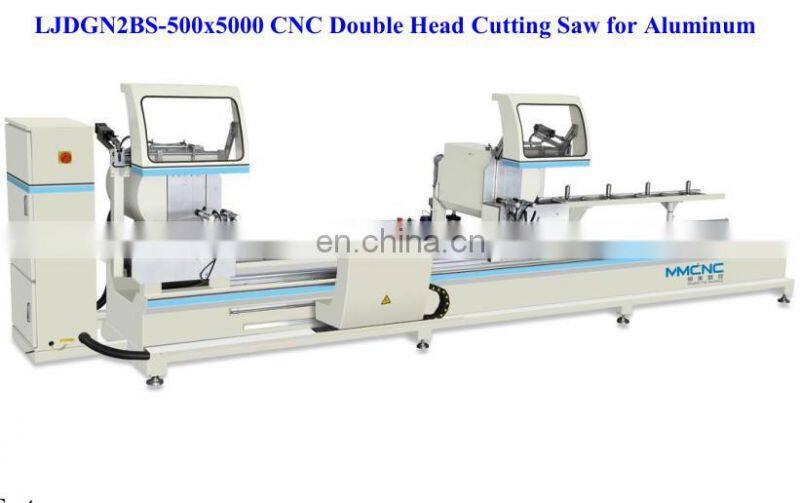

CNC Multi-function Double-head Cutting Saw
1.Brief introduction
This machine is designed for cutting of aluminum profile.The two saw head independent swing angle,adopt cylinder driving,set up three common angle that is -45°90°+45°.
2. Equipment Features
2.1 The two saw head independent swing angle,adopt cylinder driving,set up three common angle that is -45°90°+45°.
2.2 Set up Manually position at arbitrary angle function within 45°~90°,the knob to the positioning position,make the pendulum angle cylinder pressure to be released in full,avoid plane positioning arbitrary angle position change.
2.3 When saw head swing to 45°,the front protection hood automatically to two saw head of intermediate mobile,which increase the reliability of safety production.
2.4 Large cutting range, cutting160~220mm when 90°, Cutting 160~155mm when 45°.(Profile width less than 160mm,the corresponding height increase).
2.5 The right saw head follow-up material carrying frame length is 1800mm.
3. Parameter
3.1 Input power 5.9Kw
3.2 Power supply 380V/50Hz
3.3 Air pressure 0.6~0.8MPa
3.4 Motor rotary speed 2800r/min
3.5 Saw Blade specification Φ500*Φ30*4.4
3.6 Cutting angle 45~90~135 degree
3.7 Cutting length 580~5000mm
3.8 Cutting width *height: 160*155mm
3.9 Overall dimension 7300?300?500mm
3.10 Weight about 1800kg

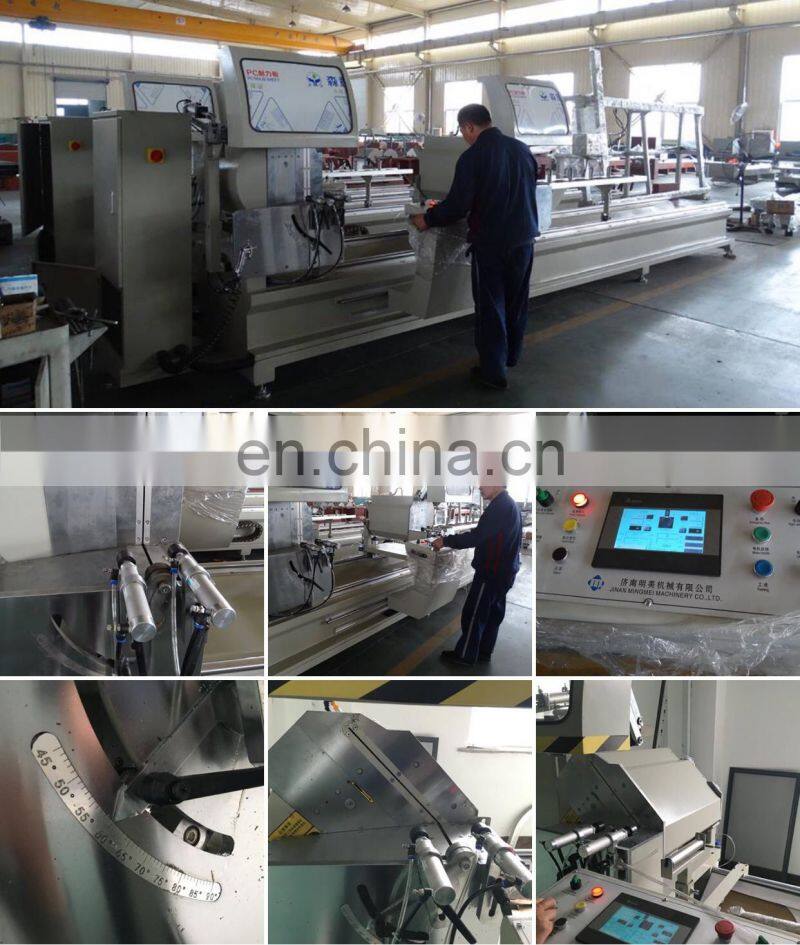

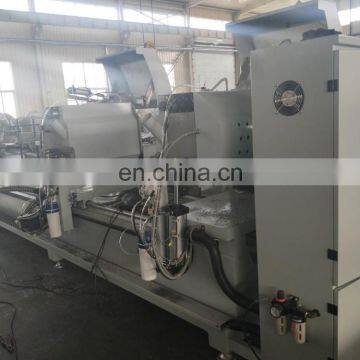

4.Detailed photos
5.Our factory SINCE 1995
6.MMCNC at Aluminum Window Door Facade Exhibitioin:
Contact Demi for further info:
Aluminum Profile CNC Drilling Milling Machine, Double Mitre Cutting Saw for Aluminum Curtain walls/facade, aluminum&upvc windows doors making machine,Industrial Aluminum machine since 1995.
