SKZXR-600x5300 Aluminum Profile Cutting Machine/aluminum Cutting Machine/cnc Cutting Machine
US$ 33,800 - 38,880
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Profile CNC,Aluminium Profile CNC Drilling Milling EquipmentsUS$ 22,000 - 22,500MOQ: 1 Set -
High Quality Aluminium Profile CNC Drilling Milling Machines for Curtain WallUS$ 21,000 - 22,500MOQ: 1 Set
-
UPVC Metre Windows Machine !Double-head Cutting Saw for Aluminum & PVC ExtrusionUS$ 3,550 - 3,550MOQ: 1 Set
-
UPVC Cutting Windows Machine !Double-head Cutting Saw for Aluminum & PVC ExtrusionUS$ 3,550 - 3,550MOQ: 1 Set
-
High Quality.Aluminium Window Machine,Aluminum Profile CNC Drilling Machine,cnc for Aluminum ProfileUS$ 21,000 - 22,500MOQ: 1 Set
Brand Name
MMCNC
Product Description
SKZXR-600x5300 Aluminum profile cutting machine/aluminum cutting machine/cnc cutting machine
1. Feature
1.1 It is new designed to meet the development of modern aluminum curtain wall , aluminum template processing industry and radiator industry.
1.2 It is mainly used for processing of extra wide aluminum profile, also can be used to process aluminum profile vertical end face material discharging.
1.3 Adopt servo motor to driver reducer, implement saw blade rotating positioning at any angle between 45 °to 90°.
1.4 Two cutting heads not only can work separately, movable head feeding material continuously , fixed cutting head cutting circularly: but also can work simultaneously , can cut needed length and profile two ends angle at one time.
1.5 Hard alloy teeth cutting blade, high cutting speed, high produce efficiency,high process accuracy.
2. Technical Parameter
2.1 Power supply:3 phase 380V 50 Hz
2.2 Cutting head motor:2X3 KW
2.3 Working air pressure:0.5~0.8Mpa
2.4 Rotate speed:2800 r/min
2.5 Saw blade swing angle servo motor power:2X0.9KW
2.6 Cutting head horizontal move servo motor power:1.5 kw
2.7 Saw cutting length:max 5300mm
2.8 Saw cutting width and height:max 500X180 mm in 90°
2.9 Saw cutting height:max 210mm in 90°
3.0 Saw cutting angle blade 45°~90°arbitrary angle
3.1 Cutting head 45°~90°arbitrary angle
3.2 Cutting feed speed:stepless speed regulation 0~3m/min
3.3 Blade specification:φ600X4.4 Xφ30mm Z=120
3.4 Overall size: 7500x2450x1700mm
3.5 Weight:5000kg
1.1 It is new designed to meet the development of modern aluminum curtain wall , aluminum template processing industry and radiator industry.
1.2 It is mainly used for processing of extra wide aluminum profile, also can be used to process aluminum profile vertical end face material discharging.
1.3 Adopt servo motor to driver reducer, implement saw blade rotating positioning at any angle between 45 °to 90°.
1.4 Two cutting heads not only can work separately, movable head feeding material continuously , fixed cutting head cutting circularly: but also can work simultaneously , can cut needed length and profile two ends angle at one time.
1.5 Hard alloy teeth cutting blade, high cutting speed, high produce efficiency,high process accuracy.
2. Technical Parameter
2.1 Power supply:3 phase 380V 50 Hz
2.2 Cutting head motor:2X3 KW
2.3 Working air pressure:0.5~0.8Mpa
2.4 Rotate speed:2800 r/min
2.5 Saw blade swing angle servo motor power:2X0.9KW
2.6 Cutting head horizontal move servo motor power:1.5 kw
2.7 Saw cutting length:max 5300mm
2.8 Saw cutting width and height:max 500X180 mm in 90°
2.9 Saw cutting height:max 210mm in 90°
3.0 Saw cutting angle blade 45°~90°arbitrary angle
3.1 Cutting head 45°~90°arbitrary angle
3.2 Cutting feed speed:stepless speed regulation 0~3m/min
3.3 Blade specification:φ600X4.4 Xφ30mm Z=120
3.4 Overall size: 7500x2450x1700mm
3.5 Weight:5000kg

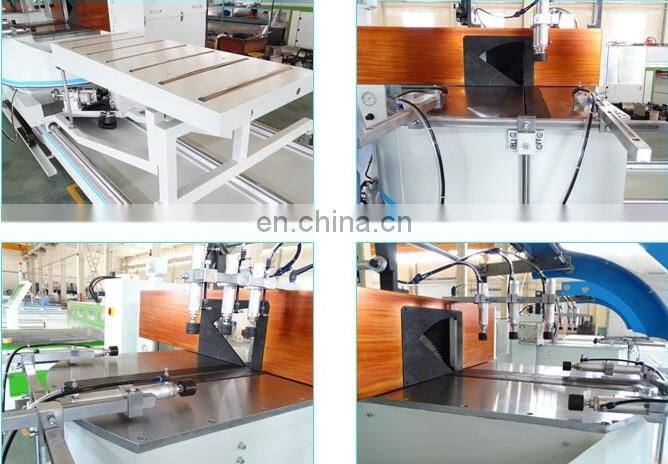

Detailed Photos

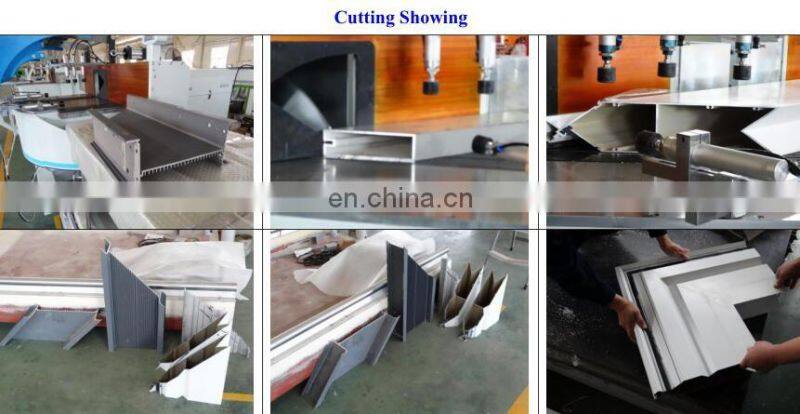

Samples
SHIPPING
Our Company
Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement.
-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>
-How I can get suitable Machine?
Please give me your followed information:
*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.
If you are new farmer, no idea, contact us, our service department will guide you.
