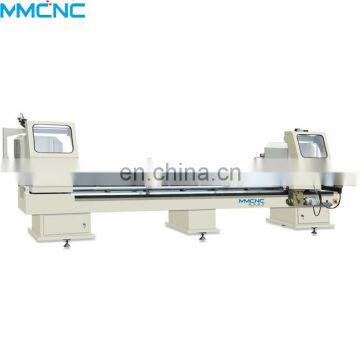

Double-Head Cutting Saw for Aluminum & PVC Profile LJZ2-450X3700
1.Equipment Features | Double head cutting saw for aluminum & pvc profile |
♣The machine is used for cutting of aluminum profile & PVC Profile.
♣Imported carbides blade is of accurate processing and high endurance.
♣The two heads can work alone,can also work at the same time.
♣To cut out a section of desired length and two end angles.

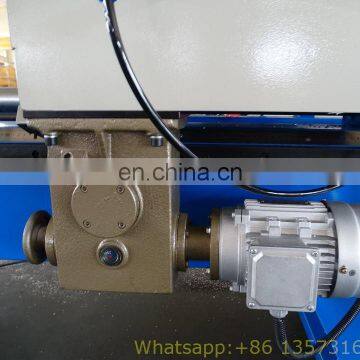

♣Right head adopts motor drive.
♣Two saw head can be manually switching angle,realize the -45 degrees,90 degrees,45 degrees angle cutting profile.
2.Technical Parameter | Double head cutting saw for aluminum & pvc profile |
Model | LJZ2-450*3700 |
Input power | 3.55Kw |
Power supply | 380v/50hz |
Air-pressure | 0.5-0.8MPa |
Motor rotary speed | 2800r/min |
Saw Blade specification | Φ450x Φ30 |
Cutting angle | -45 ° 90 ° 45 ° |
Cutting length | 680-3700mm |
Cutting width x height | 120x160mm |
Overall dimension | 4600*1300*1550 |
Weight | 770kg |

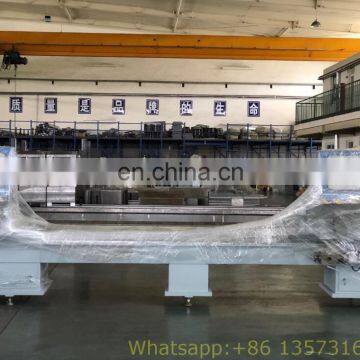

3.Detailed Images for your reference |

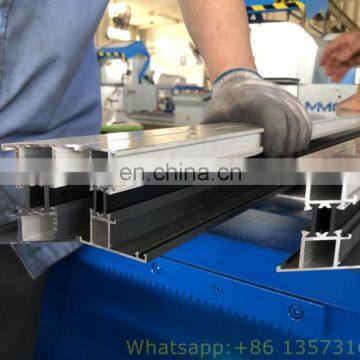

Cutting aluminum profile sample

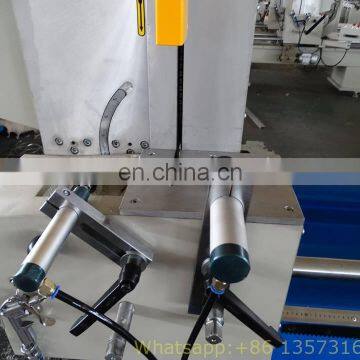

One cutting saw with protect cover |
Shandong Mingmei | CNC Machinery Company |
MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs. MMCNC machine include Processing machine for making aluminum PVC window and door curtain wall, such as Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
|
