Aluminium&PVC Profile Window and Door Double Head Aluminum Cutting Saw Machine

1. Feature

1.1    The machine is used for cutting of aluminum profile

1.2    Imported carbides blade is of accurate processing and high endurance

1.3    The two heads can work alone,can also work at the same time

1.4    To cut out a section of desired length and two end angles

1.5    Right head adopts motor drive

1.6    Two saw head can be manually switching angle,realize the -45 degrees,90 degrees,45

degrees angle cutting profile.

2. Technical Parameter

2.1    Input power:3.55kw

2.2    Power supply:380V/5Hz

2.3    Air pressure:0.5~0.8MPa

2.4    Motor rotary speed:2800r/min

2.5    Saw blade specification:φ450xφ30

2.6    Cutting angle:45°~90°~45°

2.7    Cutting length:680~3700mm

2.8    Cutting width x height:120 x 160mm

2.9    Overall dimension:4600 x 1300 x 1550mm

3.0    Weight about:770kg

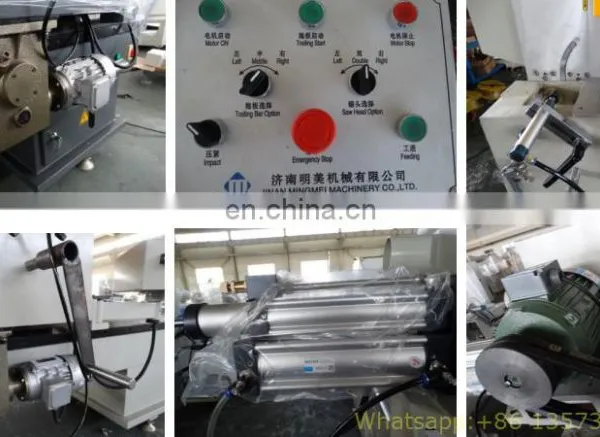

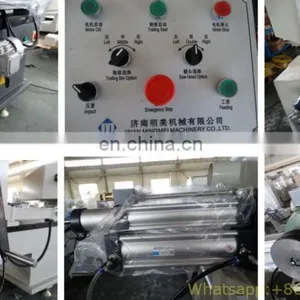

3.DETAIL PHOTOS

Aluminum Profile Cutting Sample

We are expert fabricator of Aluminium Curtain Walls Machine,Aluminum Facade Machines,

Aluminum include CNC Machining Center, CNC Drilling Milling Machine, Double Head Cutting Saw etc SINCE 1995.

 Pre-Sales Service :

  * Inquiry and consulting support.

  * Sample testing support.

  * Design drawing of the factory workshop

  * View our Factory.

 After-Sales Service :

   * One year warranty time, we can repair and replace parts for free in one year.

   * Free training course at our factory with professional engineers.

   * Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

   * Engineers available to service machinery overseas.

   * We provide the consumable parts at agent price when you need replacement

    With us your money in safe,your business in safe!
