180 degrees widely used aluminum cnc machining 4 axis cnc machine for sale

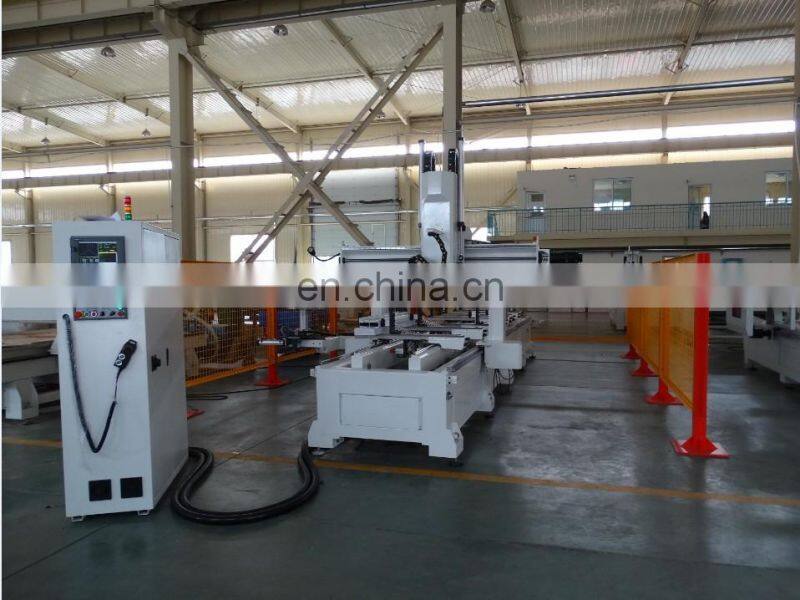

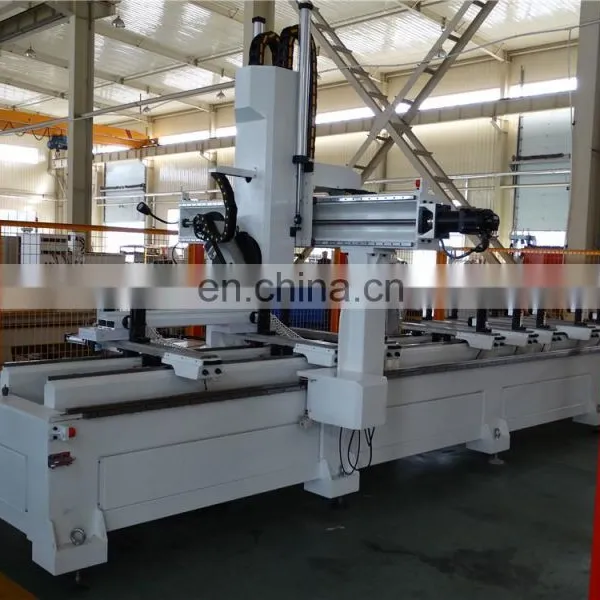

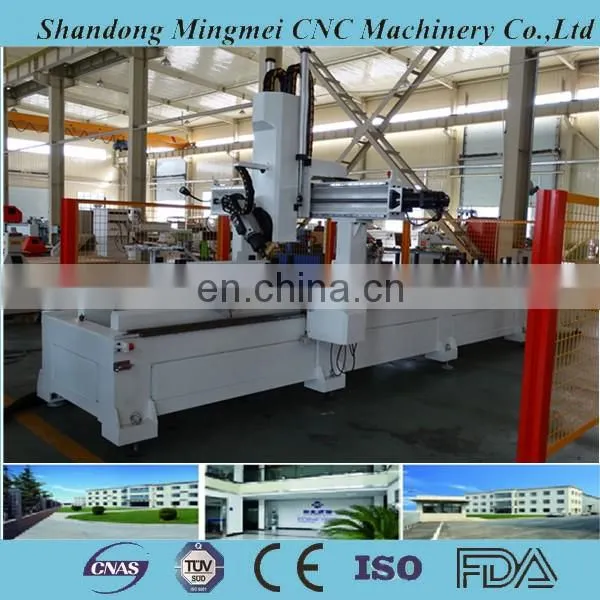

Shandong Mingmei Gantry Type ATC 4 Axis CNC Router Working Center is widely designed for processing launder,taping,milling and mounting hole,locking hole and shaped hole,and it has a saw blade,can be used for cutting the angle of the profile.
MINGMEI focus on the quality of CNC Router and details to creating the value to customers.

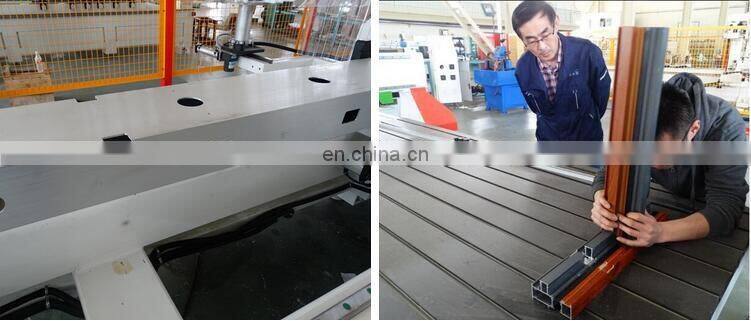

1.Let us show you the details images of machine as follow:

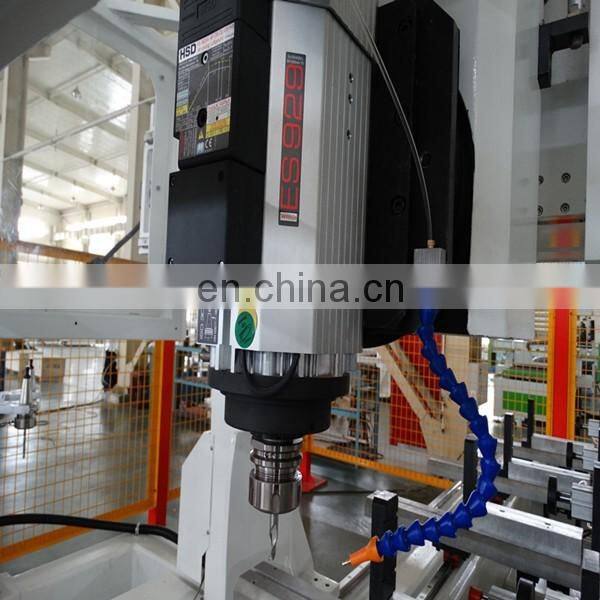

1.1 HSD Main spindle 9KW

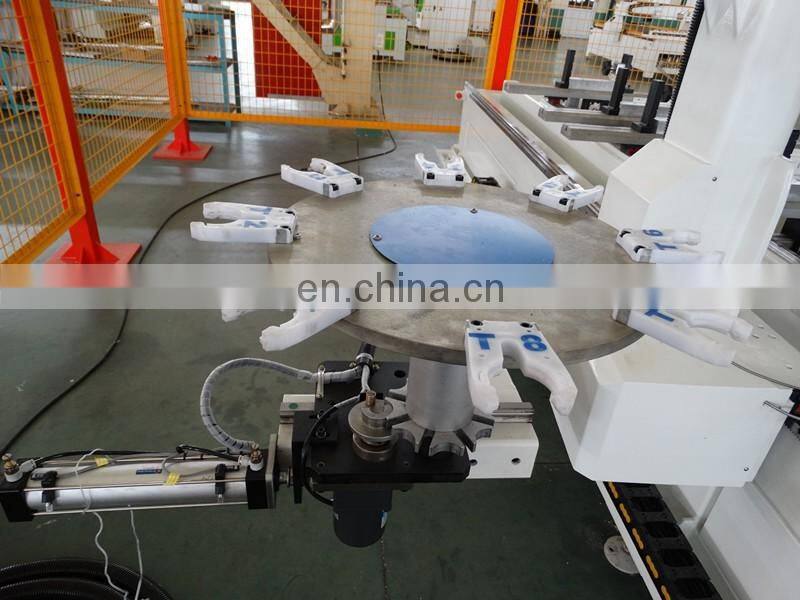

1.2 Tool magazine is 8 station Umbrella type,magazine could add saw blade(ISO 30 Shank)

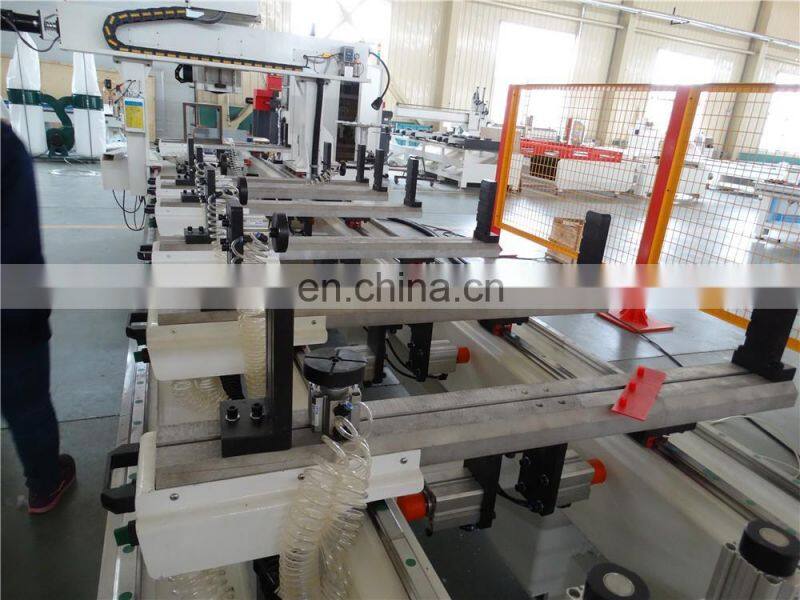

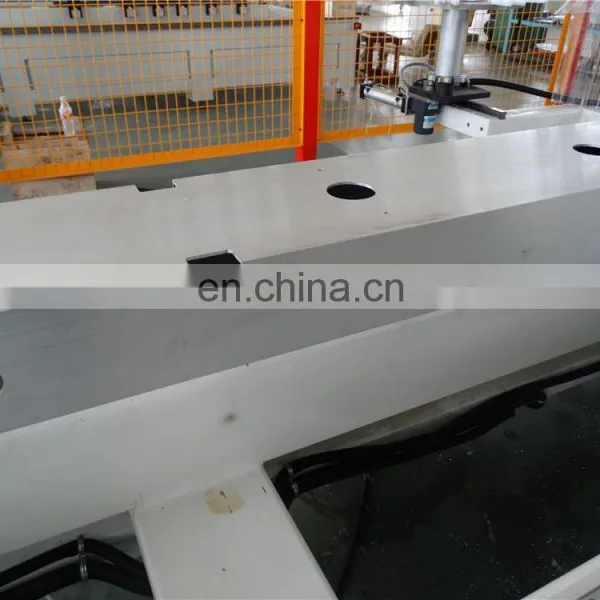

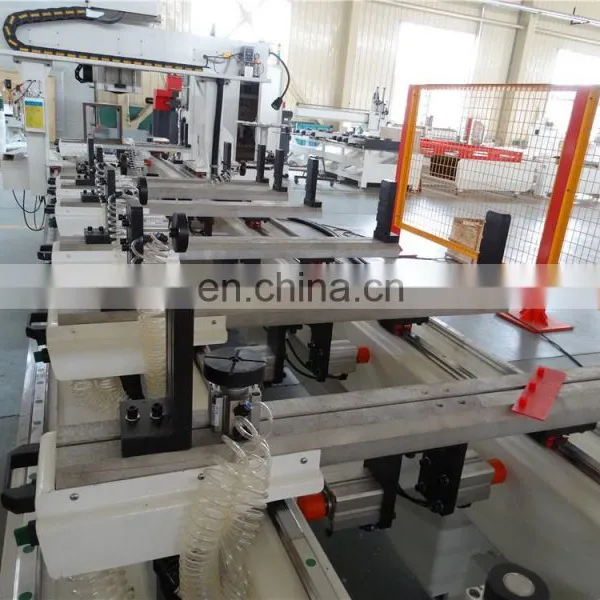

1.3 Pneumatic Clamplings

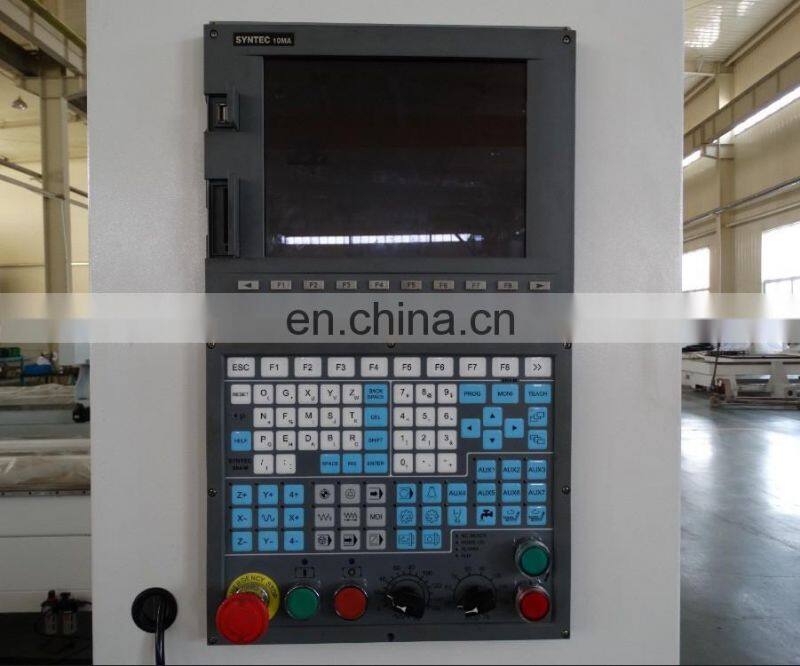

1.4 Taiwan Syntec 10MA control system

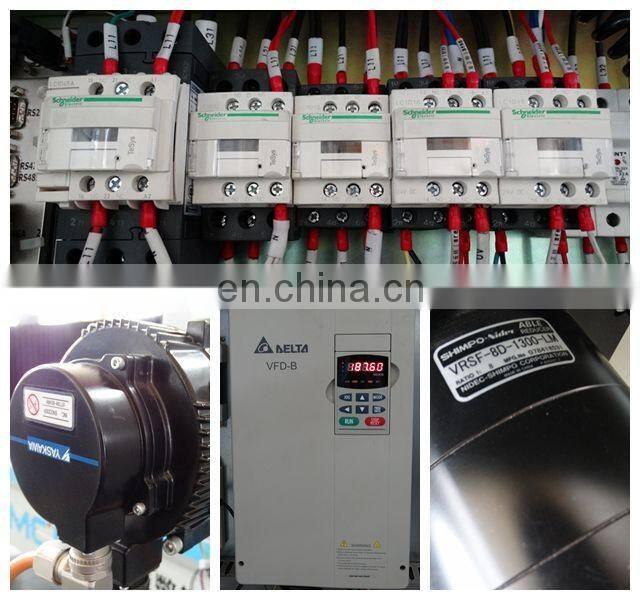

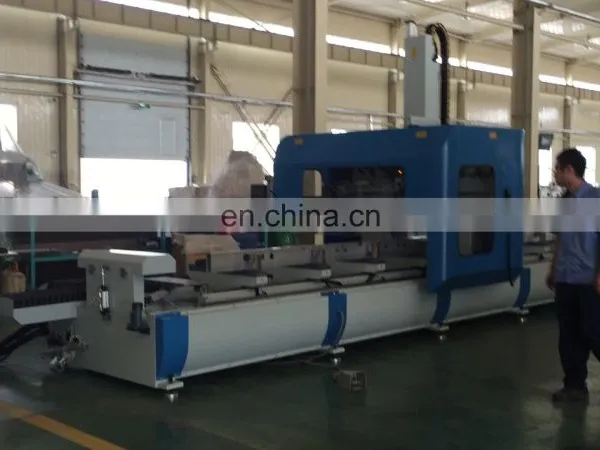

1.5 France scheneider electric parts; Japan 1.3KW Yaskawa servo motors&drivers with SHIMPO reducers; Taiwan Delta VFD-B inverter2. Samples of our 4 axis gantry working center
3. Machine Packaging &Shipping
Please add my Mob/whatsapp/wechat 008615965629053 for more details.Thanks.
Features:
1. The machine is designed for processing launder,taping,milling and mounting hole,locking hole and shaped hole,and it has a saw blade,can be used for cutting the angle of the profile.
2. The machine spindle could rotate around the Y axis to a range of ±90°,it could processing three faces at one time clamping,with high working efficiency.
3.Using the Taiwan 10MA four axis CNC Control System,it could realize four axis for synchronizing with a good user interface.
4.It adopts 9KW Italy HSD Imported Air Cooling automatic tool change Spindle Motor,high quality high efficiency.
4.Using the disc type Tool Magazine 8 station Umbrella type magazine,the blades storage overall for sylinder propulsion,ensure the operation safety.
5.The processing center could clamping by itself,auto brake,save time save power.
6.The whole machine use TBI Imported Ball Screw,30 HIWIN Square Guide,German HENRION Original Rack and other high quality sparts,ensure the machine could have high processing accuracy.
7.The machine head with a protect cover,it could protect the safe of the operator.
8.Adpot spary pump cooling device,props for cooling treatment.
| SPECIFICATIONS | |
Rmark |
The specification just for your reference, we can bulid cnc router as your specific requirements |
Model |
JGZX4-CNC-6000 |
| Power supply | 380V/50Hz |
| Air pressure | 0.5-0.8MPa |
| Control system | Taiwan Syntec 10MA |
| Processing Wide X/Y/Z/B | 800/5500/400/±90° |
| Output power of spindle | 9KW |
| Supplier for spindle | Italy HSD |
| The feeding speed X/Y/Z | 50/30/20m/min B 300r/min |
| Spindle speed | 24000r/min |
| Servo motor X/Y/Z/A | YASKAVA 1.3kw/2x1.3kw/1.3kw/0.85kw |
| Tool magazine | 8 station Umbrella type,magazine could add saw blade(ISO 30 Shank) |
| Position accuracy | ±0.1mm |
| Re-position accuracy | ±0.05mm |
| Working area | 6000x1000x500mm |
| Dimension(L*W*H) | 7000x1700x2500mm |
| Weight: | 5200kg |
| Customization | Customized cnc router Available , this specification just for you reference |
MMCNC was found in 1995,which is a modern private enterprise specialized in technology development,
machinery manufacture and product sales.Company cover an area of 70000 square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door as well
as curtain wall, such as---
Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC WeldingMachine;
Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got CE,ECM,
EEC authorization .and it has won good market reputation.
