China four axis CNC Router engraver drilling and milling machine for wood with CNC controller system

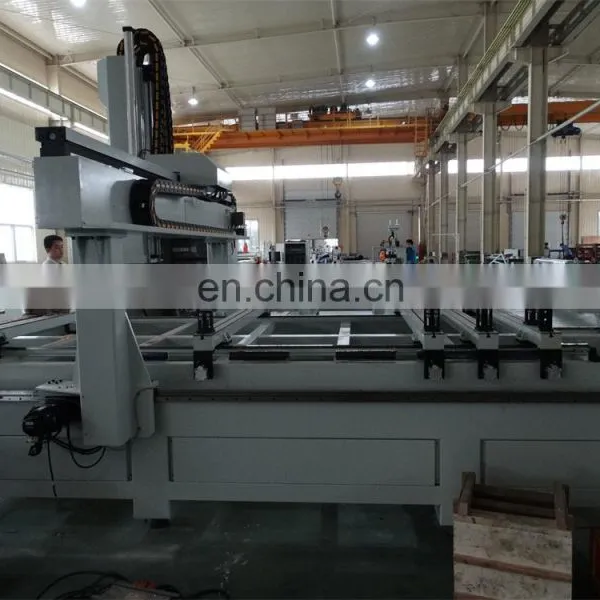

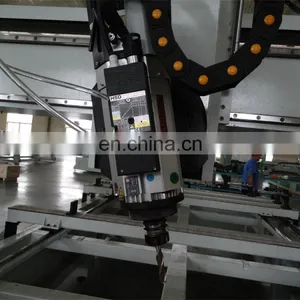

1. Detailed Images for your reference |
|

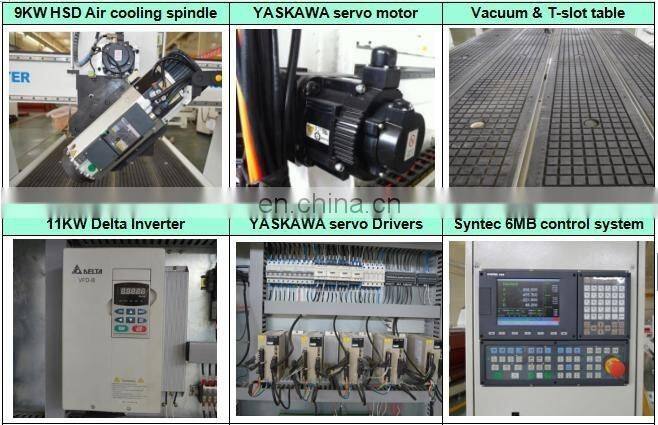

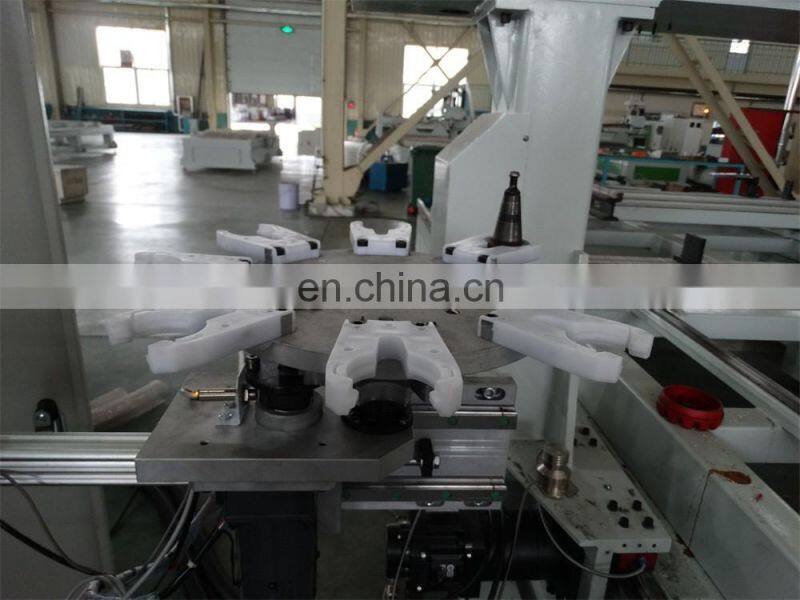

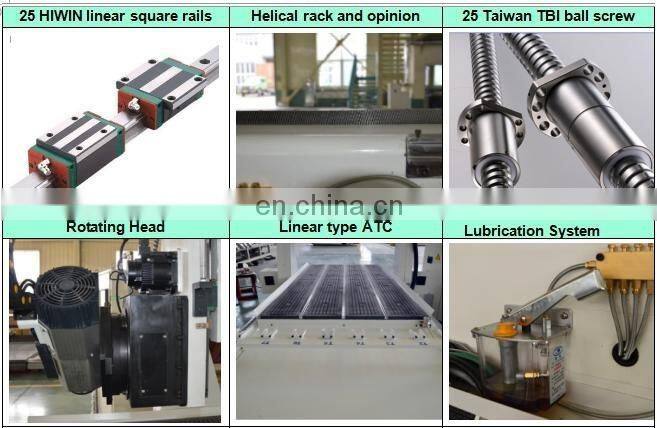

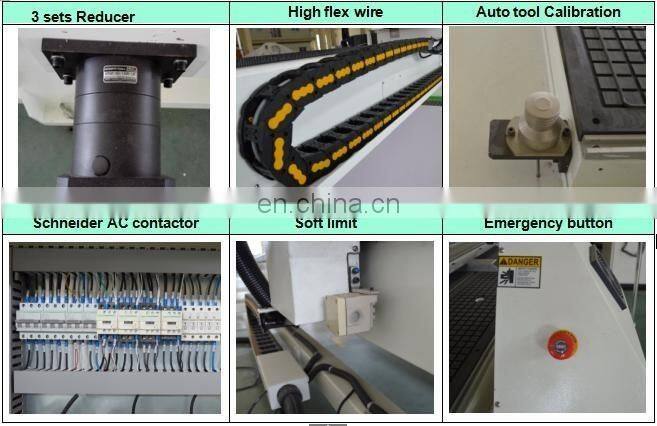

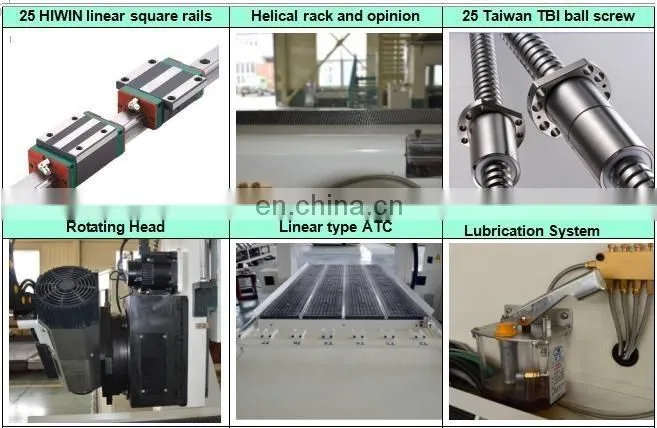

------Main Parts of CNC router -------disc type ATC

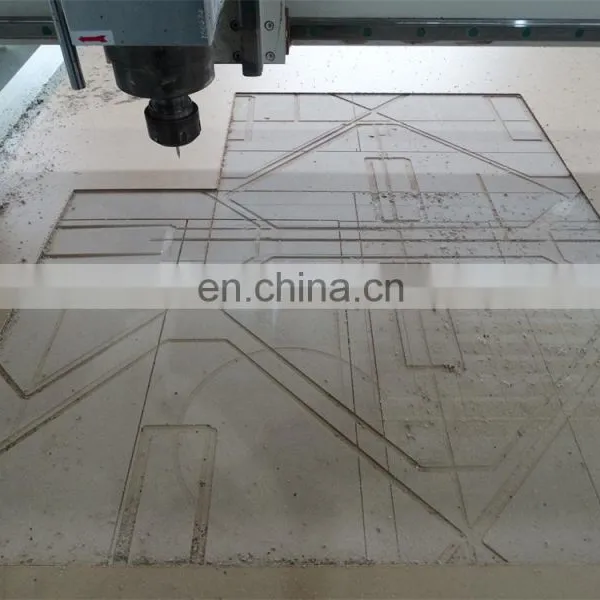

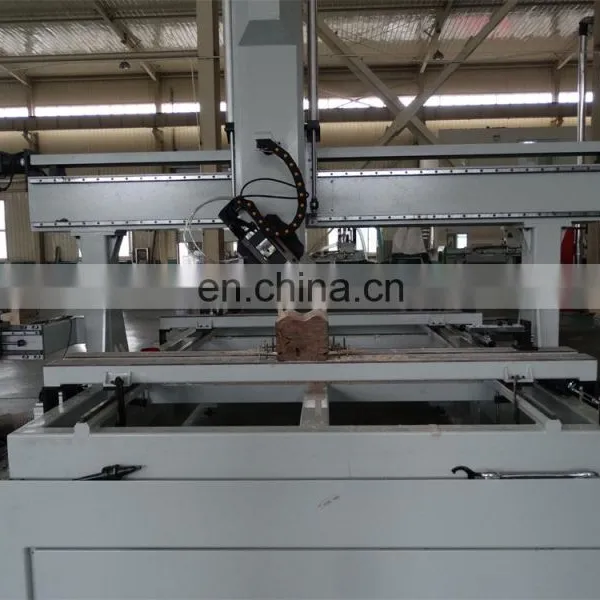

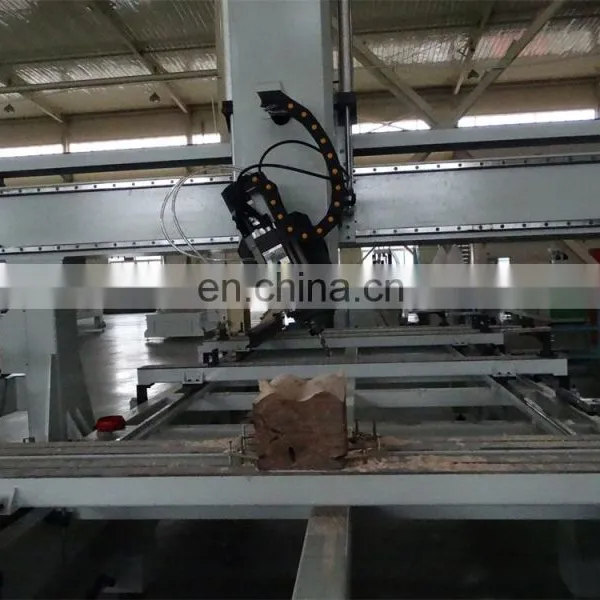

------Machine Testing:
|
2. Application industry and materials of cnc router |
1) Mould: wood,wax, wood, gypsum,foams,wax |
3. Certifications of Mingmei CNC Machinery |
|
|
1. Main Features for 1325 3d CNC wood router |
|

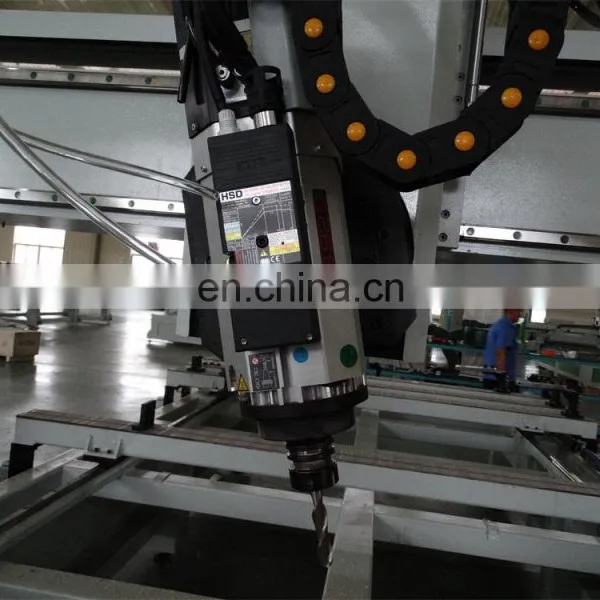

1.1 HSD spindle ----original famoue brand from Italian,also can choose Kolumb spindle 1.2 SYNTEC control system------It is from Taiwan with high performance and competitive price 1.3 Yaskawa servo motor and drives----They are from Japan with high precision and long life 1.4 HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium 1.5 Working area:1300*2500*400mm C Rotary Axis:360o 1.6 Whole cast steel structure thicken to 8mm 1.7 Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw 1.8 Automatic Tool Calibration - ----To guide rail and slide block , make it run better 1.9 Schneider electrical components - ----original brand from France 1.10 Japanese Omron Switch with long life 1.11 APEX Reudcer from Taiwan----More powerful and higher precision 1.12 T-Slot table with Aluminum sheel - -----Use clamp fixed materials |
2. Specifications for 1325 3d CNC wood router |
1 |
Model |
MM- 1325 |
MA-1530 |
MA-1836 |
MA-2030 |
MA-2040 |
2 |
X,Y Working Area |
1300x2500mm |
1500x3000mm |
1800x3600mm |
2000x3000mm |
2000x4000mm |
3 |
Z axis travel |
200mm-700mm(according to your requests) |
||||
4 |
Table Surface |
Vacuum and T-slot Combined(double use) |
||||
5 |
Frame |
Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type |
||||
6 |
X, Y Structure |
Helical Gear and rack transmission, Taiwan HIWIN Linear Rail |
||||
7 |
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
||||
8 |
Spindle Power |
China top brand Water cooling spindle / Italy HSD Air cooling spindle |
||||
9 |
Spindle Speed |
0-24000RPM / 0-18000RPM |
||||
10 |
Drive Motors |
Stepper Motor Driver/ Servo Motor Driver |
||||
11 |
Working Voltage |
AC220V/380V 1PH/3PH 50/60Hz, |
||||
12 |
Command Language |
G Code |
||||
13 |
Operating System |
Mach3 / NCstudio / DSP / Taiwan SYNTEC control system |
||||
14 |
Computer Interface |
USB port |
||||
15 |
Flash Memory |
512M |
||||
16 |
Collet |
ER20/ER25/ER30/ER32 |
||||
17 |
Inverter |
China top brand Fuling inverter / Taiwan Delta inverter |
||||
18 |
Software Compatibility |
Type 3 /Artcam |
||||
What we can do for customers? |
|
-Pre-Sales Service * Inquiry and consulting support. * Design drawing of the factory workshop -After-Sales Service * One year warranty time, we can repair and replace parts for free in one year. * Engineers available to service machinery overseas. * We provide the consumable parts at agent price when you need replacement. With us your money in safe,your business in safe! |
What's FAQ? |
|
1. Q: Are you a factory or trading company? A: We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall. 2.Q:How I can get suitable Machine? A:First: Please tell us what's your max working area (L*W*H), 3. Q: How does your factory do regarding quality control? A:We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate. 4.Q:What you can do if my machines have problems? A: a.We can send you free components to you if your machines are in guarantee time. b.We can send our engineers to repair your machines 5. Q: If OEM available? A: Yes, as we usually do. 6.What's your payment methods? A: L/C, 30% deposit by T/T,70% spare payment L/C. |
Welcome to visit our factory ! More and more clients choose MINGMEI.
Mingmei CNC: 21 years experience,your trustworthy organization in China!
Blair Zhang (Sales Manager)
Tel: 008615965629053( Wechat )
Skype: tradecncmachine
Email: trade@
Again, thank you for your visiting!
