1.Main Features for our 4 axis CNC router

1.1  HSD spindle ----original famoue brand from Italian,also can choose  Kolumb spindle

1.2  SYNTEC control system------It is from Taiwan with high performance and competitive price

1.3  Yaskawa servo motor and drives----They are from Japan with high precision and long life

1.4  HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium

1.5  Working area:1300*2500*400mm C Rotary Axis:360o

1.6  Whole cast steel structure thicken to 8mm

1.7  Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw

1.8  Automatic Tool Calibration - ----To guide rail and slide block , make it run better

1.9  Schneider electrical components - ----original brand from France

1.10 Japanese Omron Switch with long life

1.11 APEX Reudcer from Taiwan----More powerful and higher precision

1.12 T-Slot table with Aluminum sheel - -----Use clamp fixed materials

2.Specifications for 4 axis CNC router

1

Model

MM- 1325

MA-1530

MA-1836

MA-2030

MA-2040

2

X,Y Working Area

1300x2500mm

1500x3000mm

1800x3600mm

2000x3000mm

2000x4000mm

3

Z axis travel

200mm-700mm(according to your requests)

4

Table Surface

Vacuum and T-slot Combined(double use)

5

Frame

Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type

6

X, Y Structure

Helical Gear and rack transmission, Taiwan HIWIN Linear Rail

7

Z Structure

Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

8

Spindle Power

China top brand Water cooling spindle / Italy HSD Air cooling spindle

9

Spindle Speed

0-24000RPM / 0-18000RPM

10

Drive Motors

Stepper Motor Driver/ Servo Motor Driver

11

Working Voltage

AC220V/380V  1PH/3PH  50/60Hz,

12

Command Language

G Code

13

Operating System

Mach3 / NCstudio / DSP / Taiwan SYNTEC control system

14

Computer Interface

USB port

15

Flash Memory

512M

16

Collet

ER20/ER25/ER30

17

Inverter

China top brand Fuling inverter / Taiwan Delta inverter

18

Software Compatibility

Type 3 /Artcam

3.Detailed Images for your reference

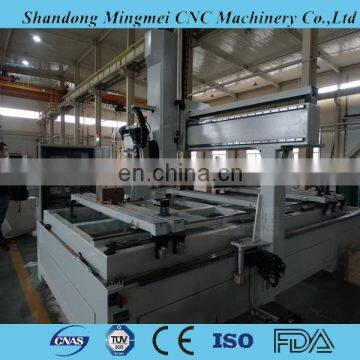

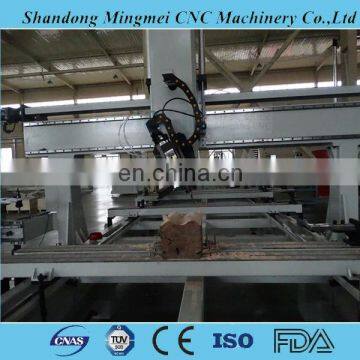

------Main Parts of CNC router

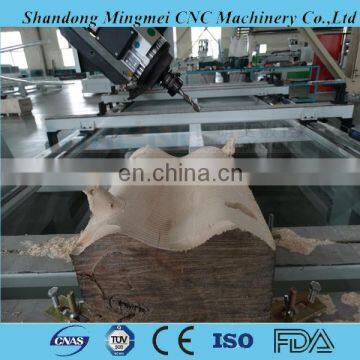

------Machine Testing:

4.Application indutry and materials of cnc router

1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

4.Certifications of Mingmei CNC Machinery

We Will Provide You The Professional Service

Do Not Hesitate To Contact With Me.

What we can do for customers?

Trade Asssurance

How about the Packing&Delivery?

to make sure customer will receive the machines they ordered Intact.

Shipping:Shipping by 20GP,40GP,40HQ Container...

According to Customers’ location and the vehicle size , we will provide professional packaging can save sea freight for cutomers.

Shandong Mingmei CNC Machinery Co., Ltd

MMCNC was found in 1995,which is a modern private enterprise specialized in technology

development,machinery manufacture and product sales.Company cover an area of 70000

square meters and 200 staffs.

MMCNC machine include Processing machine for making aluminum PVC window and door as well

as curtain wall, such as---

Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got

CE,ECM,EEC authorization .and it has won good market reputation.

Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!

Company&Plant

Exhibition-Shanghai,Beijing,Guangzhou...

Clients Visit

What's FAQ?

1. Q: Are you a factory or trading company?

A: We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall.

2.Q:How I can get suitable Machine?

A:First: Please tell us what's your max working area (L*W*H),
    Second: Please tell us what material will be engraved or cutted?
    Third: Pls tell us what kind of product do you want to get after engraved? Flat or 3D?
Those three answers will help us choice suitable CNC machine for you

3. Q: How does your factory do regarding quality control?          A:We have strict control in testing of raw material, production process and final process.Only qualified

products can be sent out.And we have passed ISO,CE certificate.

4.Q:What you can do if my machines have problems?

A: a.We can send you free components to you if your machines are in guarantee time.

    b.We can send our engineers to repair your machines

5. Q: If OEM available?

A: Yes, as we usually do.

6.What's your payment methods?

A: L/C, 30% deposit by T/T,70% spare payment L/C.
     T/T, 30% deposit by T/T,70% spare payment before shipment.
     Western Union
