1325 3 axis cnc router machine
MA1325
1.Technical parameters
Model |
MA-1325 |
|
Working Area |
XYZ axis |
1300*2500*200mm |
Height |
Z axis |
200mm |
Working Table |
|
Vacuum (6 section) with T slot aluminum alloy platform |
Move System |
XYZ axis |
XY:rack Z: ball screw |
|
|
TAIWAN PMI/HIWIN guide |
|
|
Step motor or servo motor |
Control System |
CNC system |
WEIHONG NK105 |
|
Memory |
512M |
|
LCD Panel |
3”LCD |
|
Interface |
USB |
Accuracy |
Moving |
±0.005/300mm |
|
Repeat |
±0.005mm |
|
DPI |
0.002mm |
Speed |
Max.Moving Speed |
30000mm/min |
|
Max.Engraving Speed |
20000mm/min |
Software |
Computer OS |
Window98/2000/XP |
|
Command |
G-Code/HPGL-3D |
Spindle |
Power |
4.5kw air cooling |
|
Rotary speed |
0-18000rpm |
|
Collet |
ER25-Φ3.175-Φ16 |
Power supply |
AV |
220V/50HZ |
Lubrication System |
Thin oil lubrication |
Auto /Hand |
Package |
Weight |
850kg |
|
Dimension |
2100*3500*1700mm |
Working environment |
Temperature |
+5℃ to +35℃ |
|
RH |
30%-75% |
|
Air pressure |
86-106Kpa |

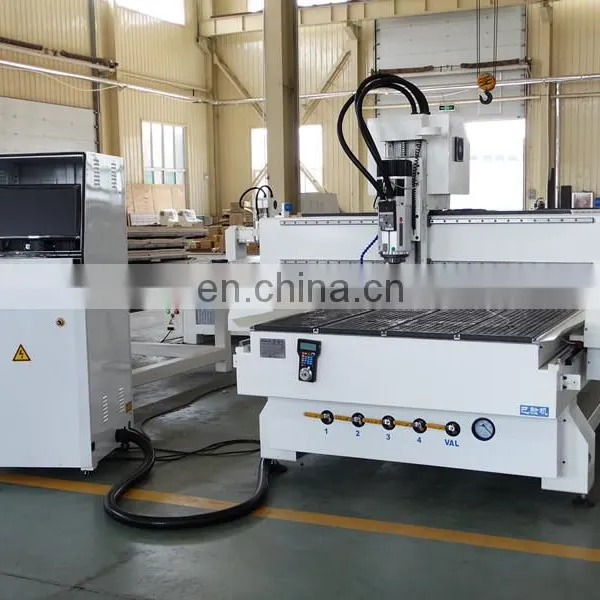

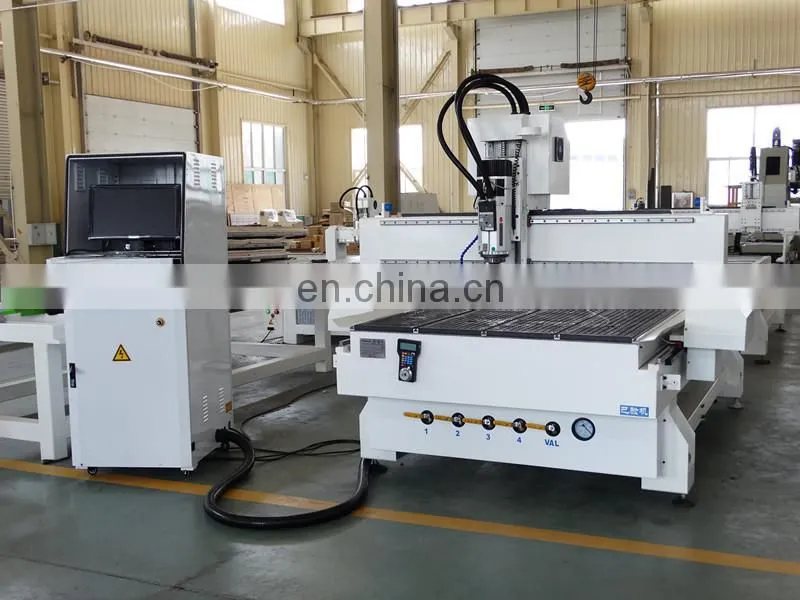

2.Product display
3.Product detailed display

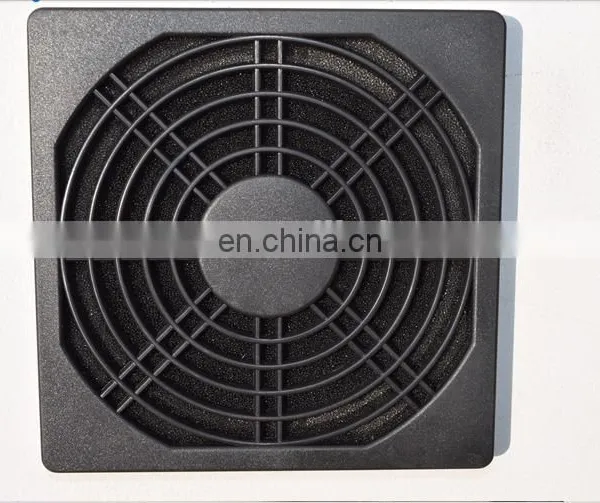

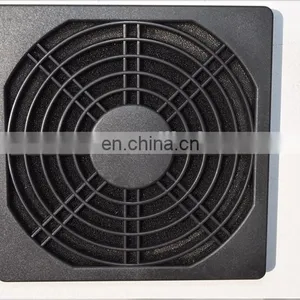

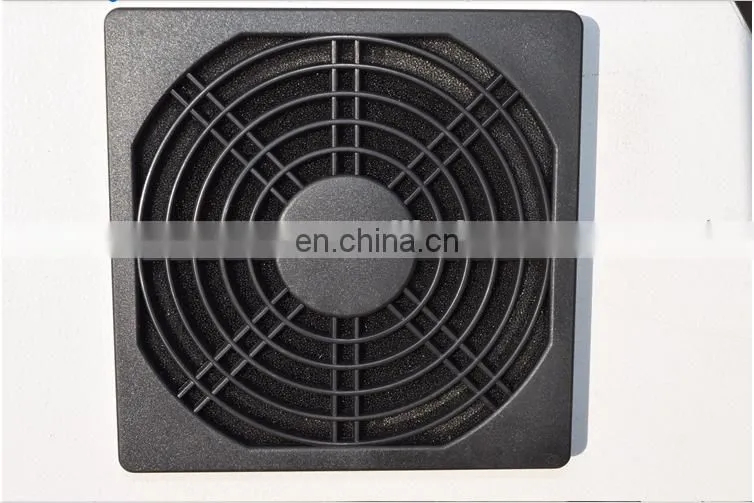

3.1 Fan

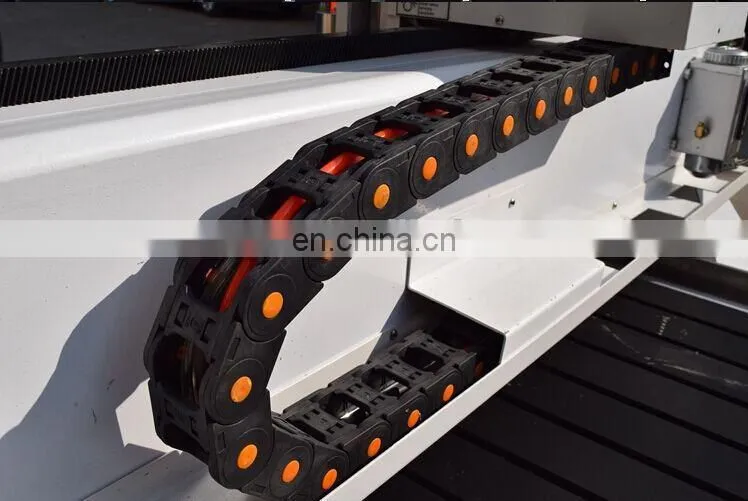

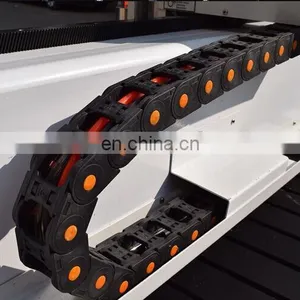

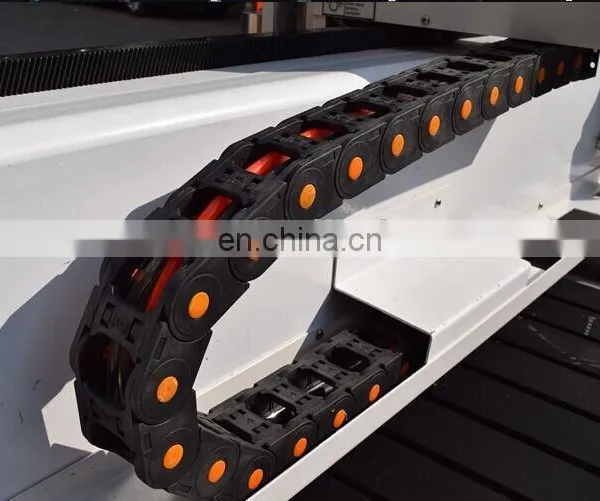

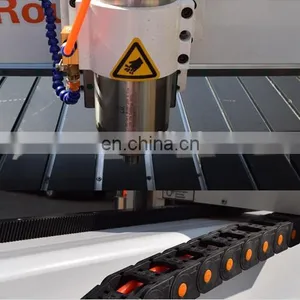

3.2 Drqag Chain

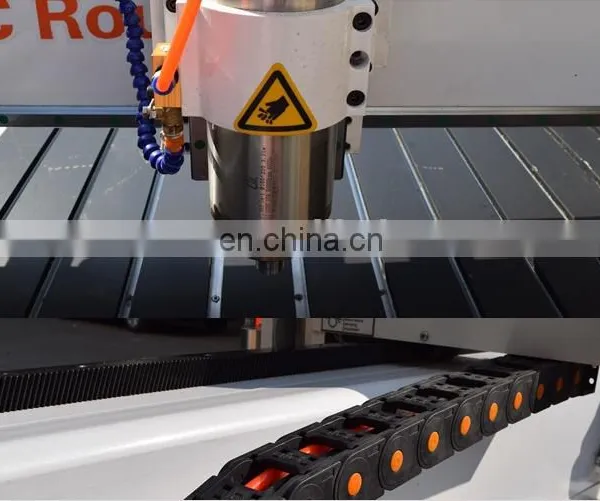

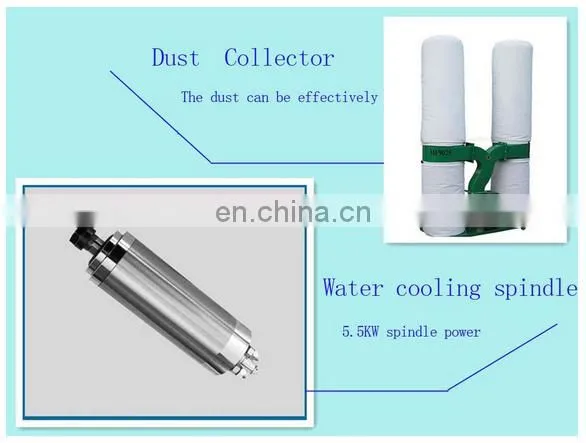

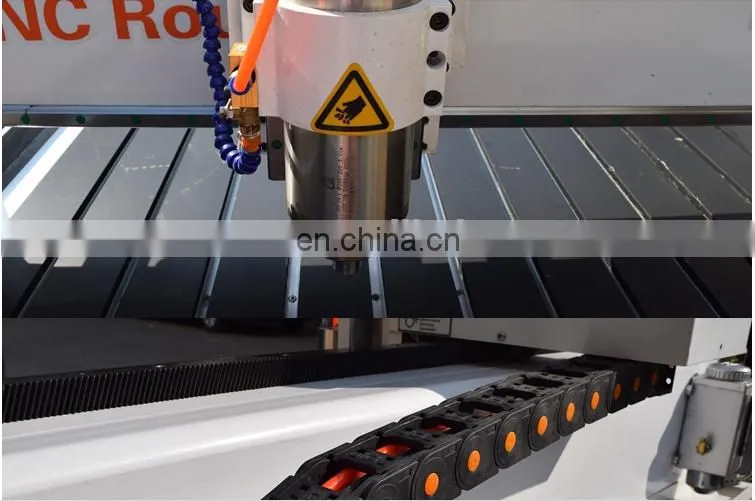

3.3 You could choose HSD Spindle or Chinese Water cooling Spindle

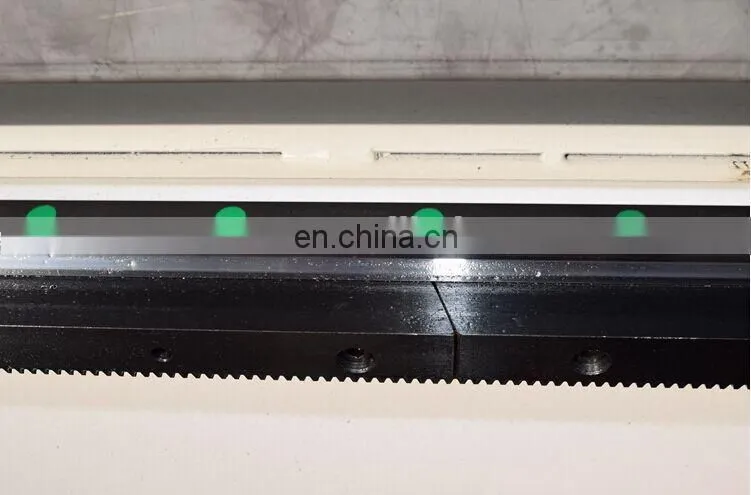

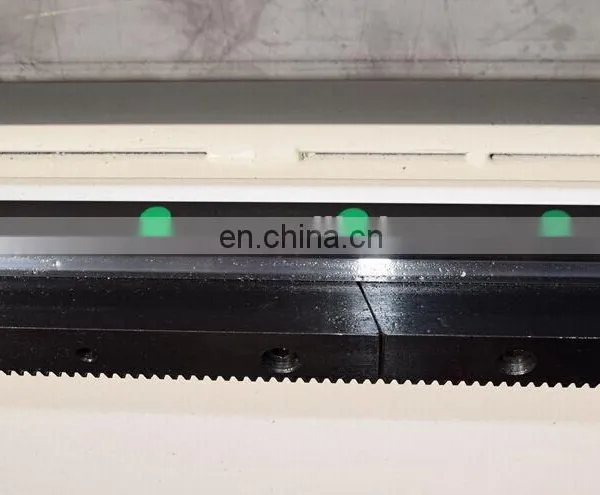

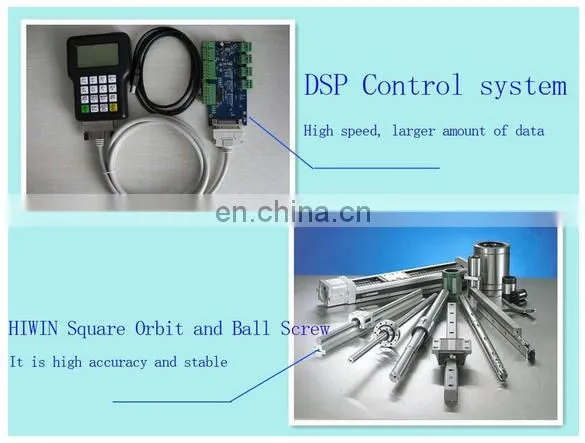

3.4 Taiwan HIWIN linear Guide

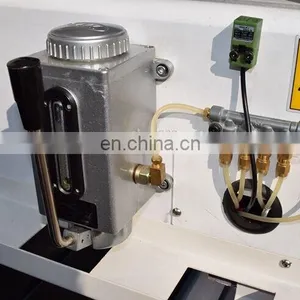

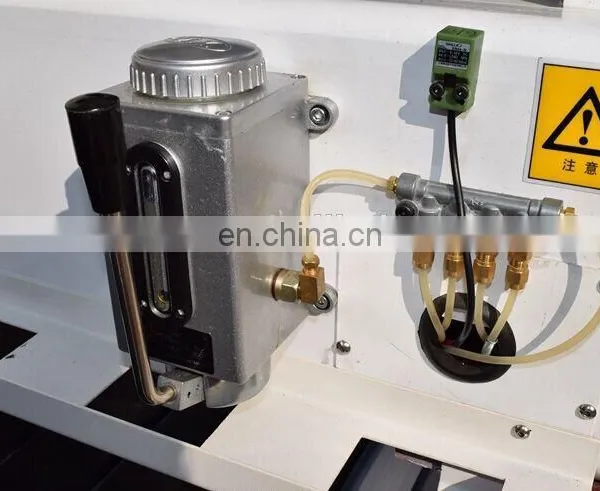

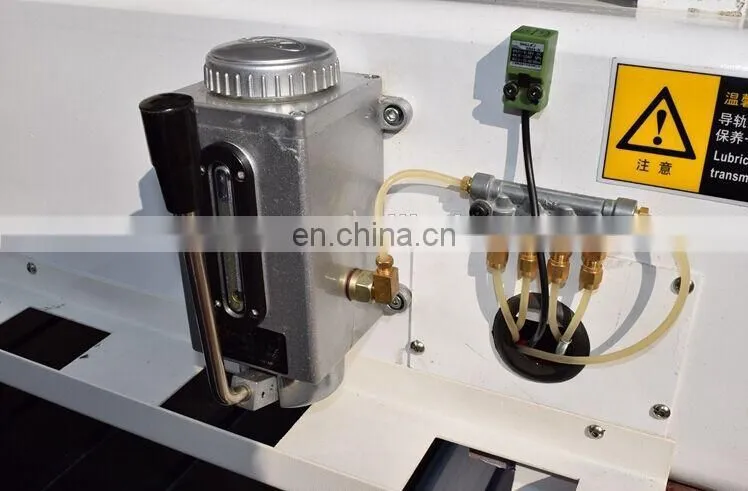

3.5 Manual Lubricating Pump

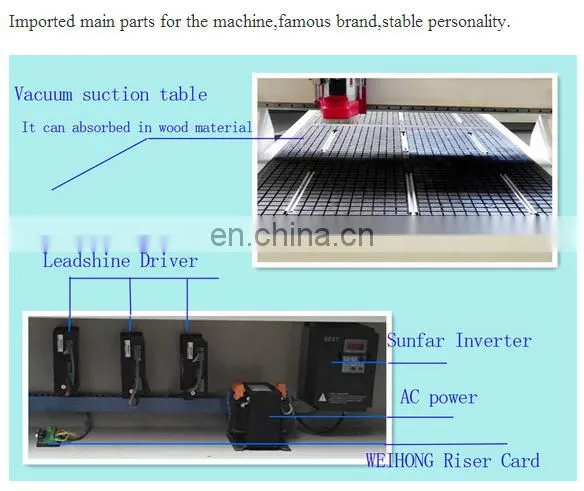

4.The spares's detalied Picture
Nc studio
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Don't hesitate to contact with me
Whatsapp/Wechact:0086 18766158398
