Italy cnc milling machine 5 axis 4 axis cnc stone carving router UK machine cnc router 5d

Name: Italy cnc milling machine 5 axis 4 axis cnc stone carving router UK machine cnc router 5d
Brand: MMCNC
Availability: InStock

FOB Price

US$ 135,000 - 150,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MMCNC	Place of Origin	Shandong, China
Model Number	1530	Certification	CE ISO FDA
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 Year
Weight	2500KG	Dimension(LWH)	426021503300mm
Voltage	220V/380V	Condition	New
Power(W)	15KW	CNC or Not	CNC

Packaging Details

WOOD CASE,IRON FRAME,PLYWOOD CASE

Product Description

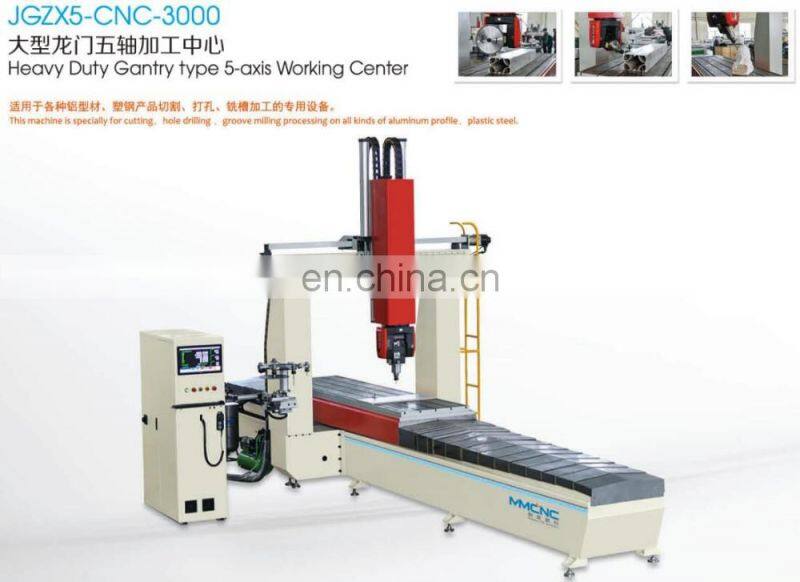

MMCNC Five Axis CNC Router machine

1.Applicable materials:

1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.

2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.

4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial

stones plastics and soft metal sheets suv.

2.Equipment Features

2.1 This machine is specially for cutting,hole drilling,groove milling processing on all kinds of aluminum profile,plastic steel.

2.2 Adopt Taiwan Syntec five axis synchrozizing cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.

2.3 Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer. Taiwan ball screw, fast speed,low noise ,high precision ,long use life etc advantages.

2.4 It is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door ,all kinds of long strip hateromorphoism chair back ,bag suitcases hateromorphism cutting ,hateromorphism square tube cutting etc; also can be used for mass production.

3.Technical Datasheet

Model Name		5 Axis CNC Router
1	Movement type		Movable table
2	Working area(MM):XYZ		600x600x3000MM
3	Travel ling	C Axis	±262°
3	Travel ling	A Axis	±120°
4	Beam spacing(mm)		2750
5	Beam Height(mm)		1500
6	Double pendulum head type		HS655
7	Supplier for Double pendulum head		HSD
8	Output power of spindle		15KW
9	12.0KW Italian HSD Spindle speed		24000R/M
10	Servo system		YASKAVA servo system
11	Inverter		Delta inverter
12	Table size(mm)		1600x3500x800
13	Material of Table		Aluminum profile
14	Material fixed Type		T-Slot
15	Tool magazine		Carousel tool magazine(8positions)
16	Cutter specifications		HSK.F63.ER40
17	Control system		OSAI/Taiwan Syntec
18	Minimum training period for operator		2 weeks
19	Programming Softwares		AlphaCAM
20	Software version		V7
21	Machine size		426021503300mm
22	Total weight		12T
23	Total power(kw)		30KW
24	Voltage		AC 3P 380V 50HZ
25	Efficiency File Conversion(hr/day)		0.5
26	Maximum speed	X Axis	60m/min
		Y Axis	60m/min
		Z Axis	30m/min
		C Axis	2700°/min
		A Axis	2700°/min

4.Detailed Photos

HSD Spindle

Disc Magazines

We add a Saw Blade for our customer

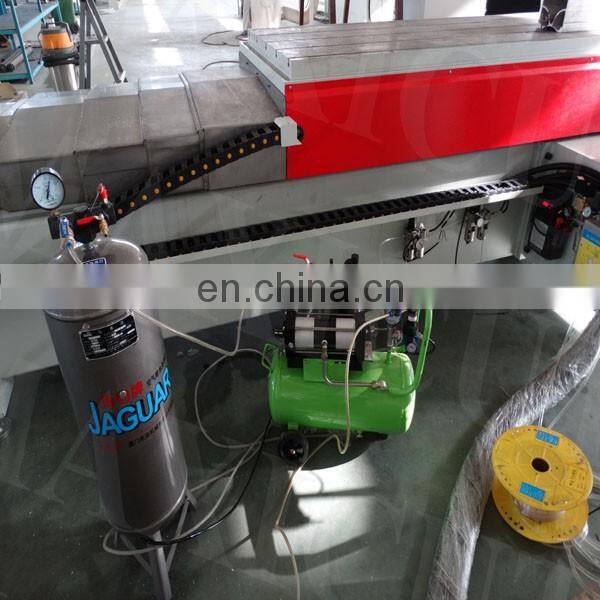

The machine in the factory

The sample

How to order

Company Profile

Sinon CNC Machine Co., Ltd.

Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
