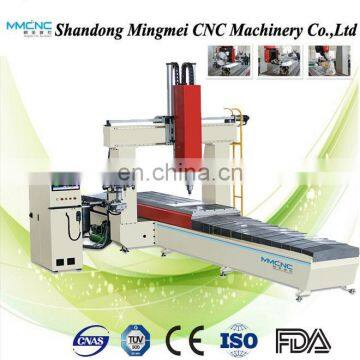

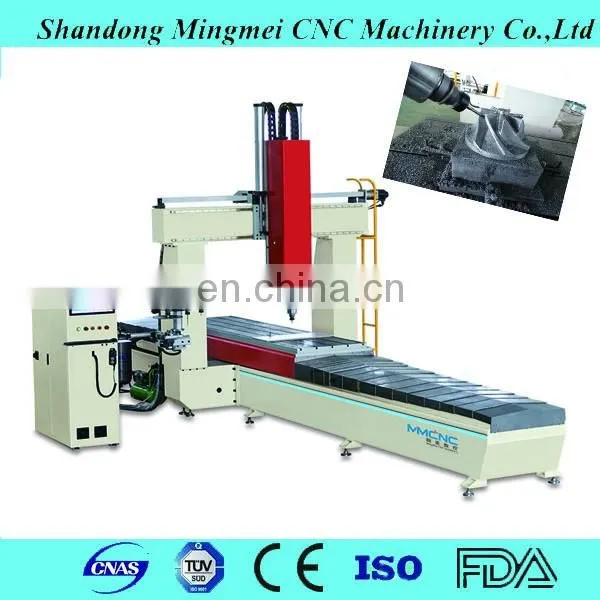

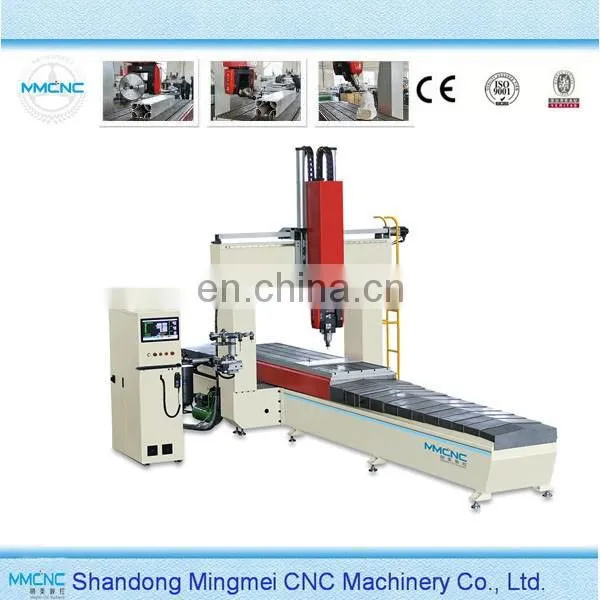

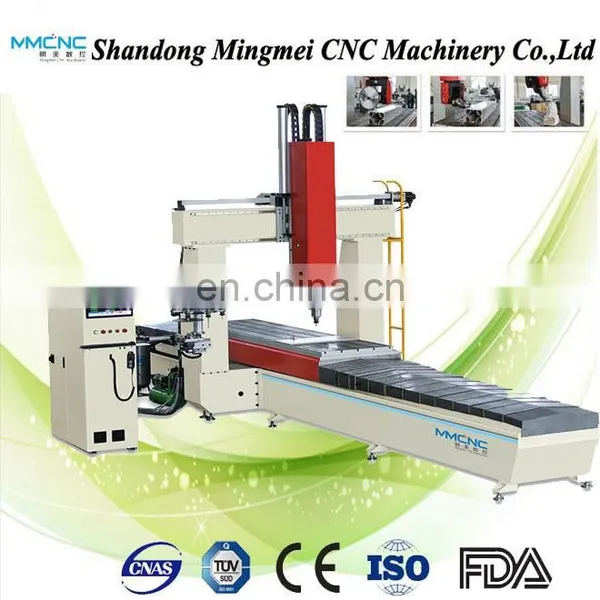

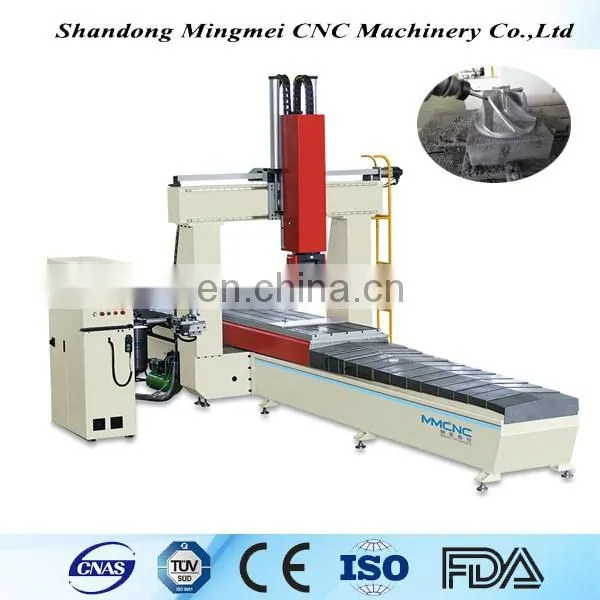

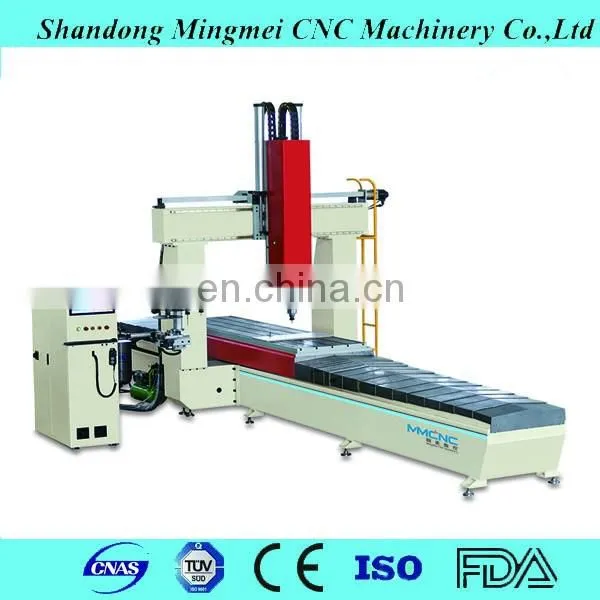

MMCNC Five Axis CNC Router machine
1.Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial
stones plastics and soft metal sheets suv.
2.Equipment Features
2.1 This machine is specially for cutting,hole drilling,groove milling processing on all kinds of aluminum profile,plastic steel.
2.2 Adopt Taiwan Syntec five axis synchrozizing cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
2.3 Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer. Taiwan ball screw, fast speed,low noise ,high precision ,long use life etc advantages.
2.4 It is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door ,all kinds of long strip hateromorphoism chair back ,bag suitcases hateromorphism cutting ,hateromorphism square tube cutting etc; also can be used for mass production.
3.Technical Datasheet
Model Name | 5 Axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 600x600x3000MM |
3 | Travel ling | C Axis | ±262° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS655 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 15KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1600x3500x800 |
13 | Material of Table |
| Aluminum profile |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Carousel tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| OSAI/Taiwan Syntec |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 4260*2150*3300mm |
22 | Total weight |
| 12T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
4.Detailed Photos
HSD Spindle
Disc Magazines
We add a Saw Blade for our customer

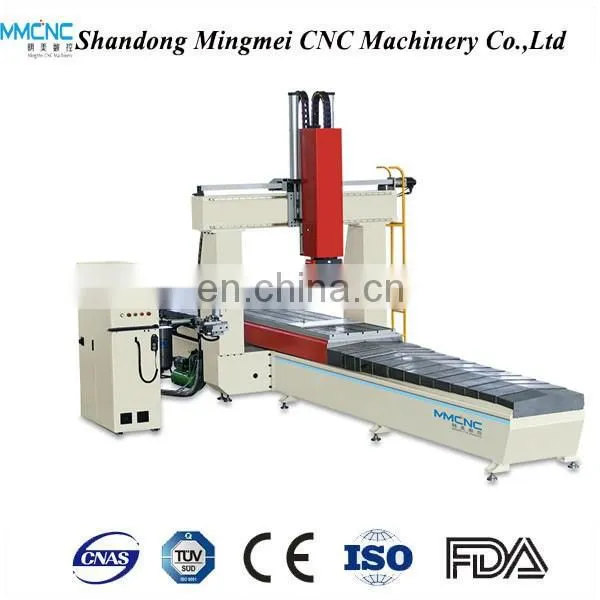

The machine in the factory
The sample
