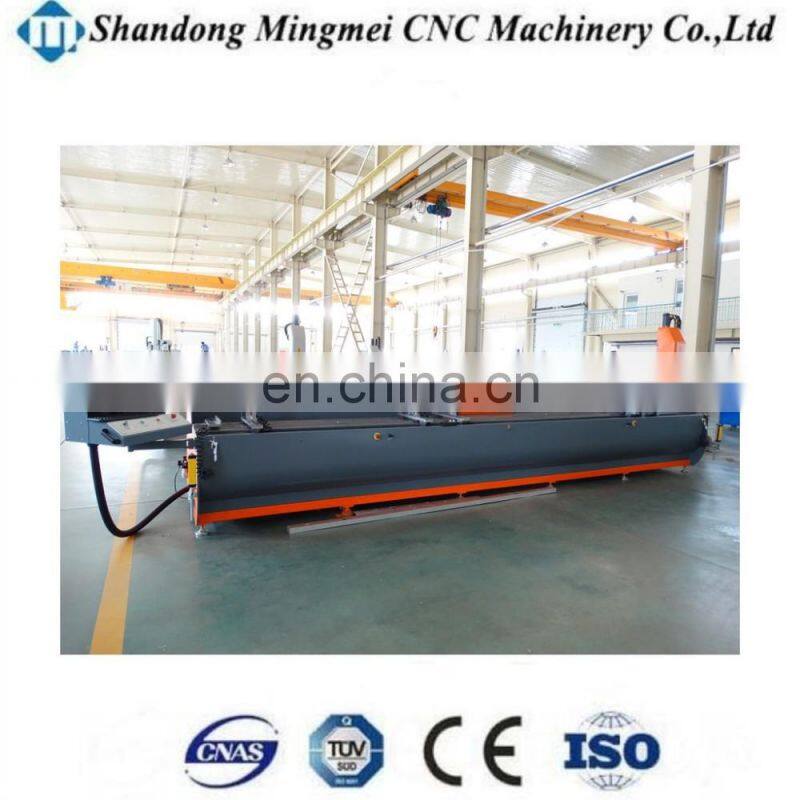

aluminum drilling cutting cnc machining center

Features

1. This machine is designed for processing round holes,slots,keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering, engraving plane surface and other procedure.

2. Main spindle adopt air-cooling electric main axis from Italy, have the function of high precision, high safety and high reliable.

3. Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software. It can transform processing code automatically,have the function of easy operation, high efficiency and lower labor intensity.

4. Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.

5. Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.

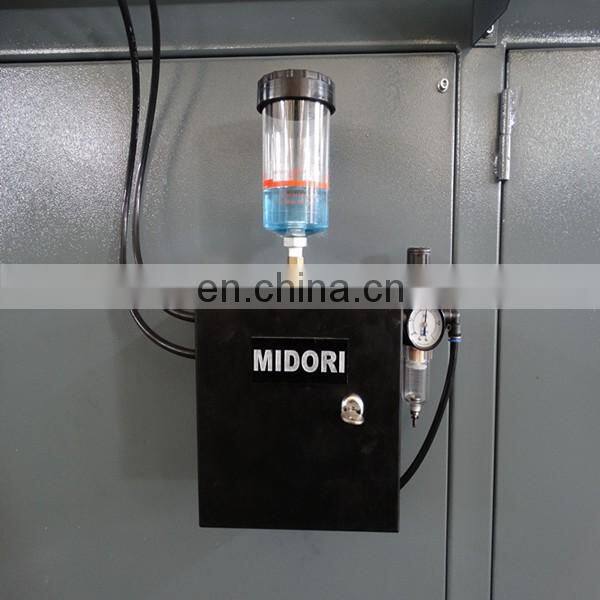

6. Adopt manual pump oil supply system, blades adopt system control spray cooling device.

7. The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.

8. The main components adopts steel structure and they are all through aging treatment.

 Applications Field

    This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling , chamfering, engraving plane surface and other procedure.

    Suggestion:  We can produce products according client needs,such as:size, outside view, configuration etc.

Technical Parameters

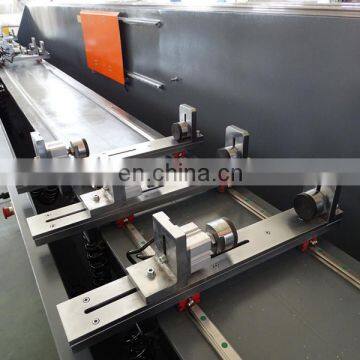

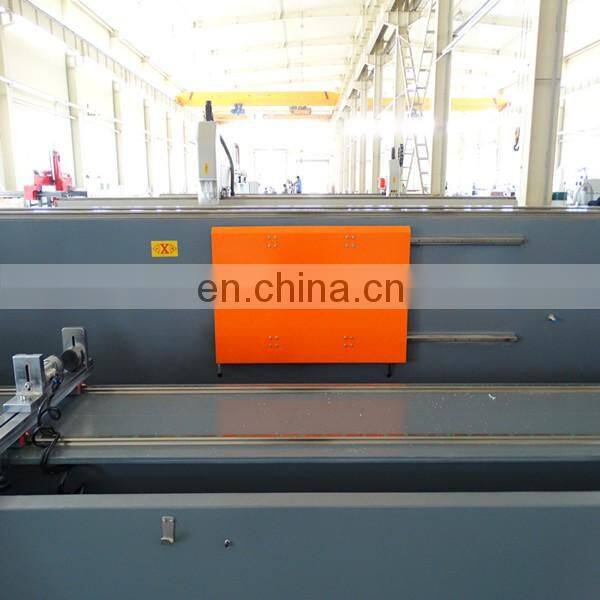

 Detailed Images of 3 Axis CNC Processing Center for Aluminum Profile

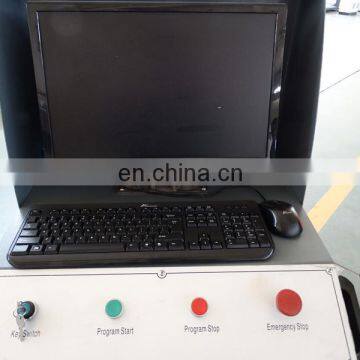

1. SYNTEC control system------It is from Taiwan with high performance and competitive price.

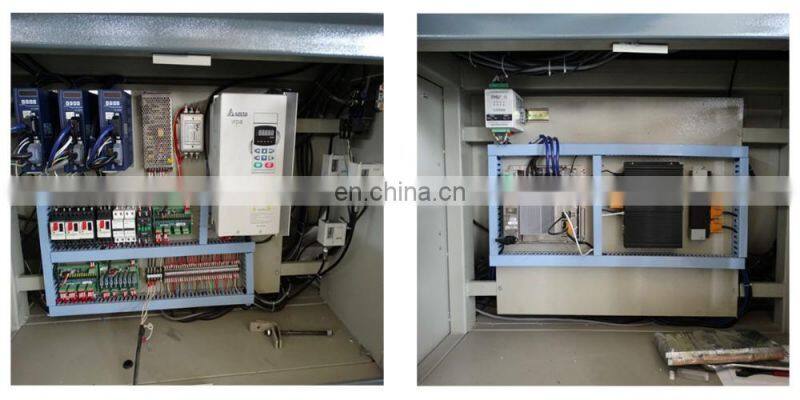

2. Huada  servo motor and drives----They are from Wuhan China with high precision and long life.

 3. DELTA-VFD-B inverter ------it is from Taiwan with high quality.(CE and UL authentication)

4. Schneider electrical components - ----original brand from France.

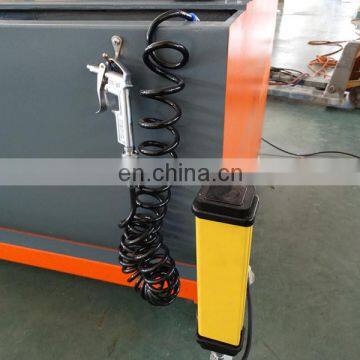

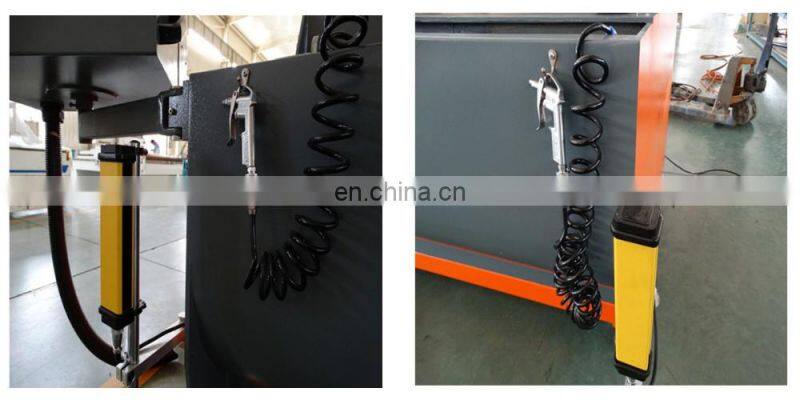

5.Each side of the machine have the clean air aprayer. The yellow one is safety light curtain .the machine will be stoped when anyone near the machine.

6. Tools magazine ------ 6 sets tools,the handle is approved ISO30 standards.

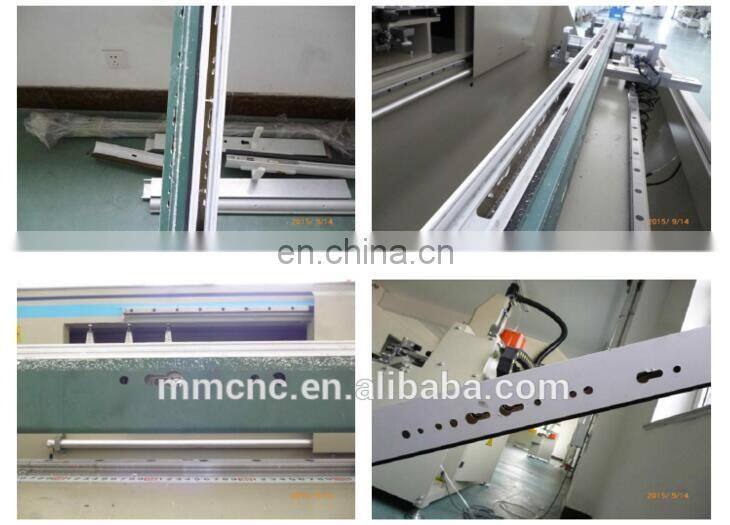

7. Adopts HIWIN linear guide  from Taiwan------high precision and long life

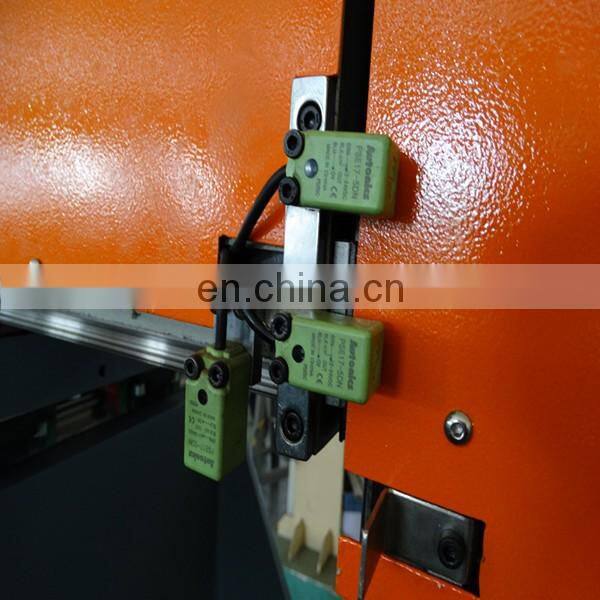

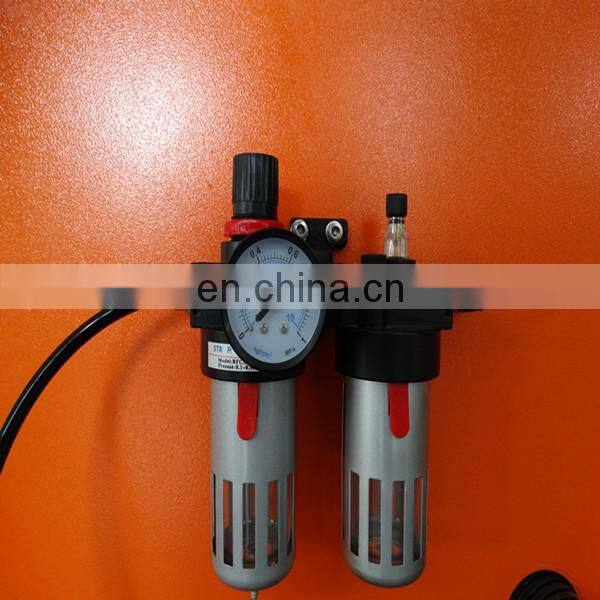

8. other parts
