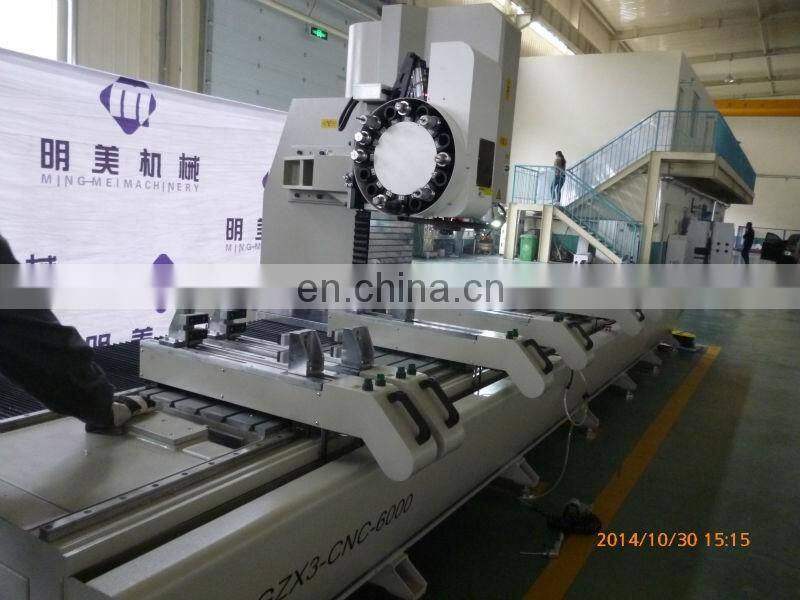

CNC Machining centre with 3 controlled axes for Aluminium and Vinyl/PVC Profiles
Contact: Jessica Whatsapp: +8613225317062
1. Feature
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering and other procedure.
1.2 Adopting high-power closed loop spindle servo motor, It was directly connected with the Taiwan high-precision mechanical spindle.
1.3 Using the latest Taiwan 10.4 inch display screen, 21MA SYNTEC servo control system. After power outages, it can continue processing when power offer, This machine have professional CAM processing software.

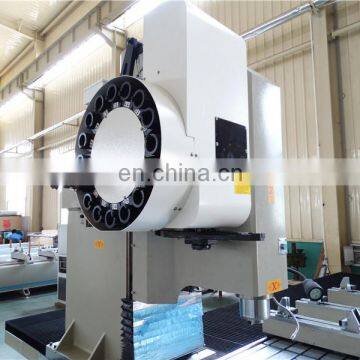

1.4 U-sing the disc type blades storage,16 blades capacity,only need 3 seconds for changing blade, greatly improved the efficiency of changing blades.
1.5 Adopting famous high-precision ball screw, rail and rack.

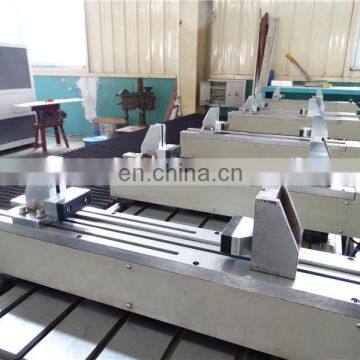

1.6 Double position design,putting on and taking down profile separately without stop, have much higher processing efficiency.
1.7 Centralization lubrication adopt intermittent supply system,blades adopt system control spray pump cooling device.
1.8 Equipped automatic memory on blades device system.

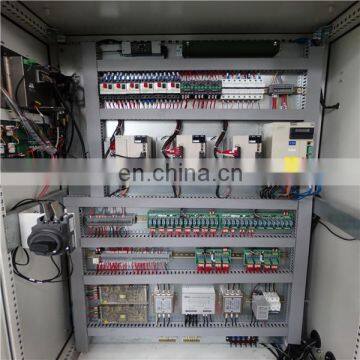

1.9 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
2.0 The main components adopt steel structure and they are all through aging treatment.
2. Specification
2.1 |
Power supply |
380v/ 50Hz |
2.2 |
Working pressure |
0.6~0.8MPa |
2.3 |
X-axis journey |
6000mm |
2.4 |
Y-axis journey |
450mm |
2.5 |
Z-axis journey |
500mm |
2.6 |
Cutter storage |
16 blades |
2.7 |
Type of clamping |
pneumatic clamp (eight sets) |
2.8 |
Overall dimension |
11000*3000*2800mm |
2.9 |
Weight |
6200kg |
Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
Founded in 1995, Shangdong Mingmei CNC Machinery Co., Ltd has developed an assembly line for aluminum door, window and curtain wall equipment. With more than twenty years' production experience, Mingmei has become a leading manufacturer on window door machinery in China.
The main products include PVC/Aluminum Double-head Cutting saw, End miller, CNC Drilling milling machine, Copy router, Corner combing machine, Punching machine, bending machine, PVC welder, Corner cleaner, Water slot milling machine as well as CNC Router. and have been exporting to more than 30 countries.
OEM and ODM can be available.
Warmly welcome customers from all over the world to cooperate with us and visit to our factory.
You give us a chance, we will not let you down.
Company and Workshop photos
Lifelong after-sales service & maintenance;
24 hours' consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
https://youtu.be/6YPB940s0j8 3 Axis CNC Processing Center For Aluminum Profile
https://youtu.be/xwDwG8uYSig 5 Axis Aluminum Processing Center MMCNC
https://youtu.be/mrBwrv2yiqo 5 Axis Thick Aluminum Profile Processing Center
https://youtu.be/LmU9itjttDo 1.2 and 3 CNC Aluminum Drilling Machine back to home point
https://youtu.be/gFBLDN2STGw 1.2 and 3 meters CNC Drilling Milling Machine Operation Connector electric and compressed air
https://youtu.be/Sgs33TXK22U 3 Meters CNC Drilling Machine How to set up tool R and Z
https://youtu.be/yO3X2pV5Qos 1.2 meters and 3 meters Aluminum Profile CNC Drilling Milling Machine Start to working
https://youtu.be/dl5RVGqn56c 6 Meters CNC Aluminum Process Center Start to working
https://youtu.be/eGtUXDL-68o Notching Saw for aluminum Profile
https://youtu.be/1YBrQfeMZYs Notching Saw For Aluminum Profile
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration), 21 years' focusing on Aluminum Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. If we don’t know the machine operation, what should we do?
Each of our product provide video training to show you how to install & operate.
