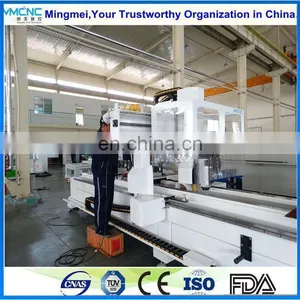

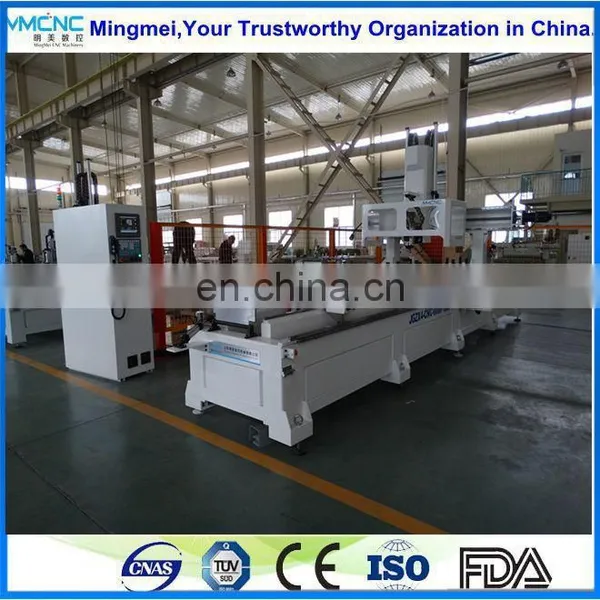

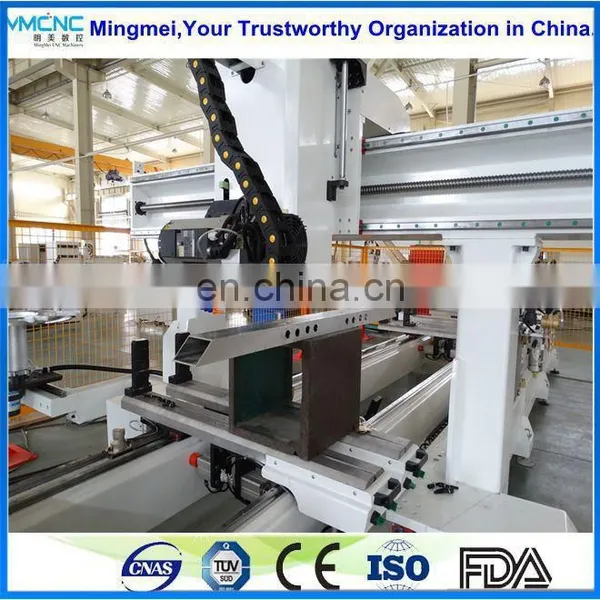

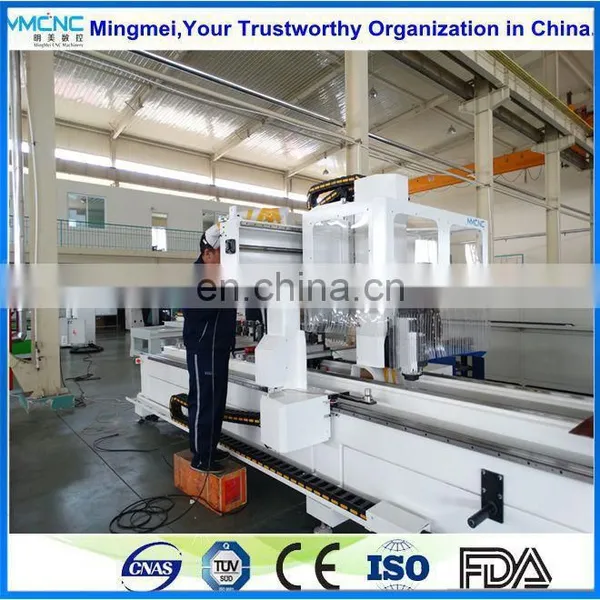

CNC Heavy Duty Gantry Type 4 axis maching center for aluminum
Contact: Jessica Whatsapp/Line/Cell phone: +8613225317062 Skype: falconhatred
Equipment Features:
1. The machine is designed for processing launder,taping,milling and mounting hole,locking hole and shaped hole,and it has a saw blade,can be used for cutting the angle of the profile.
2. The machine spindle could rotate around the Y axis to a range of ±90°,it could processing three faces at one time clamping,with high working efficiency.
3.Using the Taiwan 10MA four axis CNC Control System,it could realize four axis for synchronizing with a good user interface.
4.It adopts 9KW Italy HSD Imported Air Cooling automatic tool change Spindle Motor,high quality high efficiency.
4.Using the disc type Tool Magazine 8 station Umbrella type magazine,the blades storage overall for cylinder propulsion,ensure the operation safety.
5.The processing center could clamping by itself,auto brake,save time save power.
6.The whole machine use TBI Imported Ball Screw,30 HIWIN Square Guide,German HENRION Original Rack and other high quality parts,ensure the machine could have high processing accuracy.
7.The machine head with a protect cover,it could protect the safe of the operator.
8. Adopt spray pump cooling device,props for cooling treatment.
Technical Parameter
Model NO. |
JGZX4-CNC-6000 |
Power supply |
380V/50Hz |
Air pressure |
0.5-0.8MPa |
Control system |
Taiwan Syntec 10MA |
Processing Wide X/Y/Z/B |
800/5500/400/±90° |
Spindle power |
9KW/Italy HSD |
Spindle speed |
24000RPM |
Servo motor X/Y/Z/A |
YASKAVA 1.3kw/2x1.3kw/1.3kw/0.85kw |
Tool magazine |
YASKAVA 1.3kw/2x1.3kw/1.3kw/0.85kw |
Tool magazine |
8 station Umbrella type,magazine could add saw blade(ISO 30 Shank) |
Position accuracy |
±0.1mm |
Re-position accuracy |
±0.05mm |
Working area |
6000x1000x500mm |
Dimension(L*W*H) |
7000x1700x2500mm |
Weight |
5200KGS |
Details for

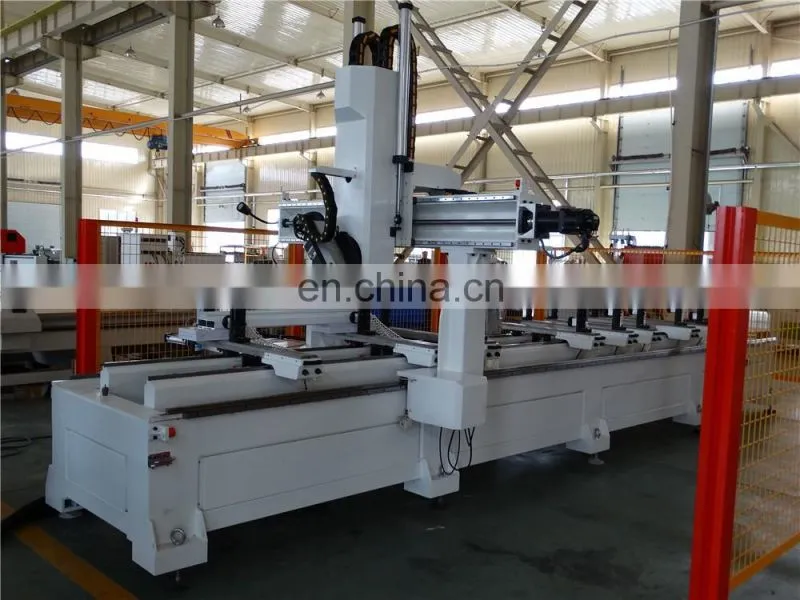

CNC Heacy Duty Gantry Type 4 axis working center for aluminum profile use

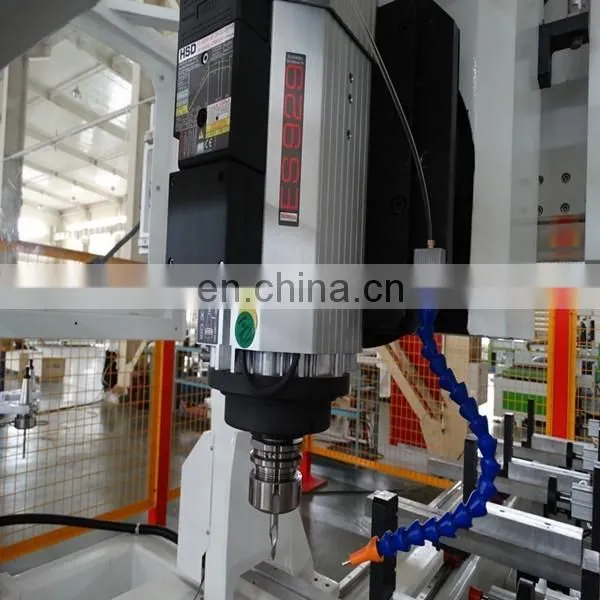

HSD Main spindle 9KW

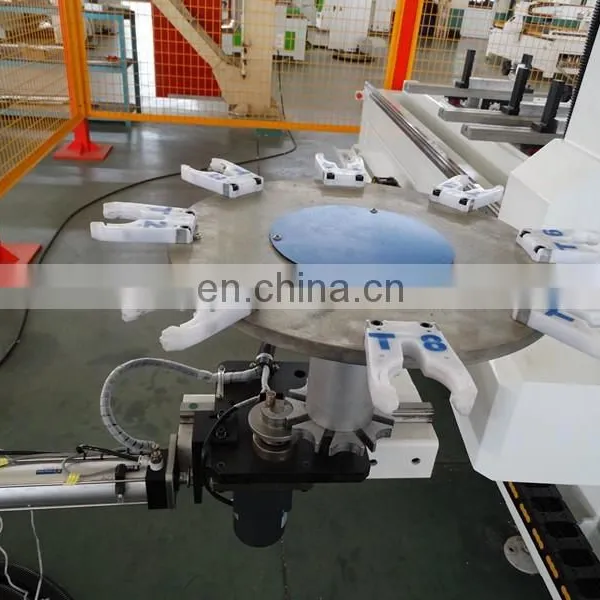

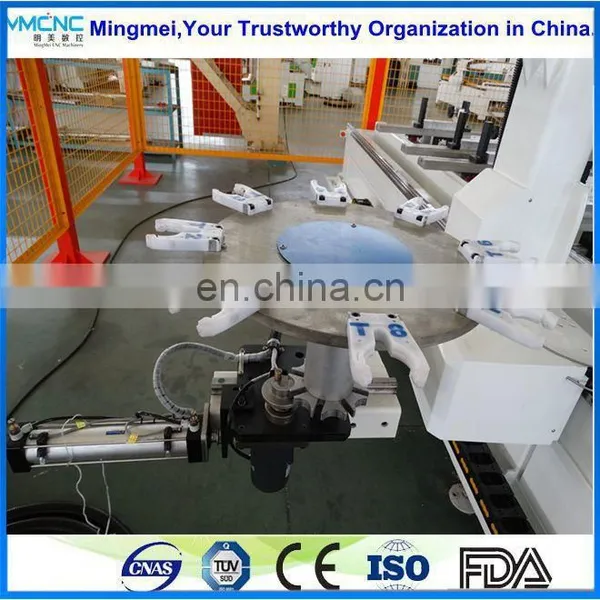

Tool magazine is 8 station Umbrella type,magazine could add saw blade(ISO 30 Shank)

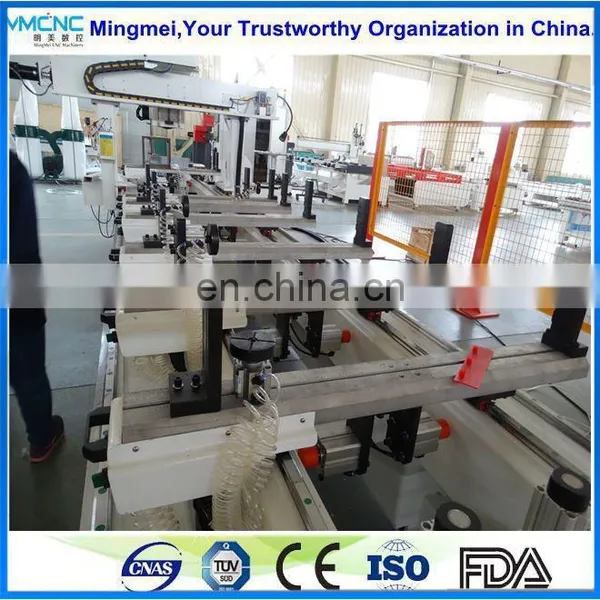

Pneumatic Clamplings
Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
https://youtu.be/6YPB940s0j8 3 Axis CNC Processing Center For Aluminum Profile
https://youtu.be/xwDwG8uYSig 5 Axis Aluminum Processing Center MMCNC
https://youtu.be/mrBwrv2yiqo 5 Axis Thick Aluminum Profile Processing Center
https://youtu.be/LmU9itjttDo 1.2 and 3 CNC Aluminum Drilling Machine back to home point
https://youtu.be/gFBLDN2STGw 1.2 and 3 meters CNC Drilling Milling Machine Operation Connector electric and compressed air
https://youtu.be/Sgs33TXK22U 3 Meters CNC Drilling Machine How to set up tool R and Z
https://youtu.be/yO3X2pV5Qos 1.2 meters and 3 meters Aluminum Profile CNC Drilling Milling Machine Start to working
https://youtu.be/dl5RVGqn56c 6 Meters CNC Aluminum Process Center Start to working
https://youtu.be/eGtUXDL-68o Notching Saw for aluminum Profile
https://youtu.be/1YBrQfeMZYs Notching Saw For Aluminum Profile
Founded in 1995, Shangdong Mingmei CNC Machinery Co., Ltd has developed an assembly line for aluminum door, window and curtain wall equipment. With more than twenty years' production experience, Mingmei has become a leading manufacturer on window door machinery in China.
The main products include PVC/Aluminum Double-head Cutting saw, End miller, CNC Drilling milling machine, Copy router, Corner combing machine, Punching machine, bending machine, PVC welder, Corner cleaner, Water slot milling machine as well as CNC Router. and have been exporting to more than 30 countries.
OEM and ODM can be available.
Warmly welcome customers from all over the world to cooperate with us and visit to our factory.
You give us a chance, we will not let you down.
Company and Workshop photos
Lifelong after-sales service & maintenance;
24 hours' consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration), 21 years' focusing on Aluminum Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. If we don’t know the machine operation, what should we do?
Each of our product provide video training to show you how to install & operate.
